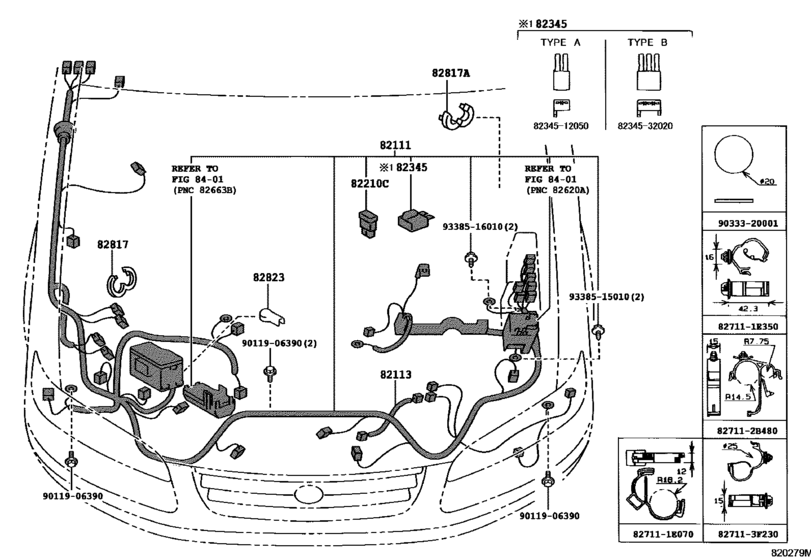

Wiring & Clamp ([12.1996 - ] ｴﾝｼﾞﾝ ﾙ-ﾑﾒｲﾝ ﾜｲﾔ (9612- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-3T680 Wire, Engine Room Main[08.1998 - 08.1999] SXV2#..SED |
82111-3T680 |
US $1,601.60 |
||
|
82111
|
82111
82115-33250 Wire, Engine Room Main[08.1999 -] SXV25..SED |
82115-33250 |
US $1,528.80 |
||
|
82113
|
82113
82113-33020 Wire, Engine Room, No.3[08.1998 -] SXV2# |
82113-33020 |
US $23.88 |
||
|
82210C
|
82210C
90982-08202 Fusible Link[12.1996 -] MCV2#,SXV2# ６０Ａ，オス端子 |
90982-08202 |
US $12.54 |
||
|
82210C
|
82210C
90982-08274 Fusible Link[08.1998 -] MCV2#,SXV2# １２０Ａ，オス端子 |
90982-08274 |
from US $8.60 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[12.1996 - 08.1999] MCV2#,SXV2# ３０Ａ，メス端子 |
90982-08280 |
from US $3.88 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[12.1996 - 08.1999] MCV2#,SXV2# ４０Ａ，メス端子 |
90982-08281 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[12.1996 -] MCV2#,SXV2# ５０Ａ，メス端子 |
90982-08282 |
from US $7.88 |
||
|
82817
|
82817
82817-33350 Protector, Wiring Harness, No.1[12.1996 -] MCV2#,SXV2# |
82817-33350 |
US $4.95 |
||
|
82817A
|
82817A
82817-2B730 Protector, Wiring Harness, No.1[12.1996 -] MCV2#,SXV2# |
82817-2B730 |
US $7.28 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[12.1996 -] MCV2#,SXV2# |
82823-22050 |
from US $4.39 |
||
|
827111E070
|
827111E070
82711-1E070 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1E070 |
US $3.49 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
from US $2.09 |
||
|
827112B480
|
827112B480
82711-2B480
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-2B480 |
— | ||
|
827113F230
|
827113F230
82711-3F230 Clamp, Sliding Roof Drain Hose |
82711-3F230 |
US $3.58 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.21 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.25 |
||
|
9338516010
|
9338516010
93385-16010 New Genuine Part |
93385-16010 |
US $1.97 |
