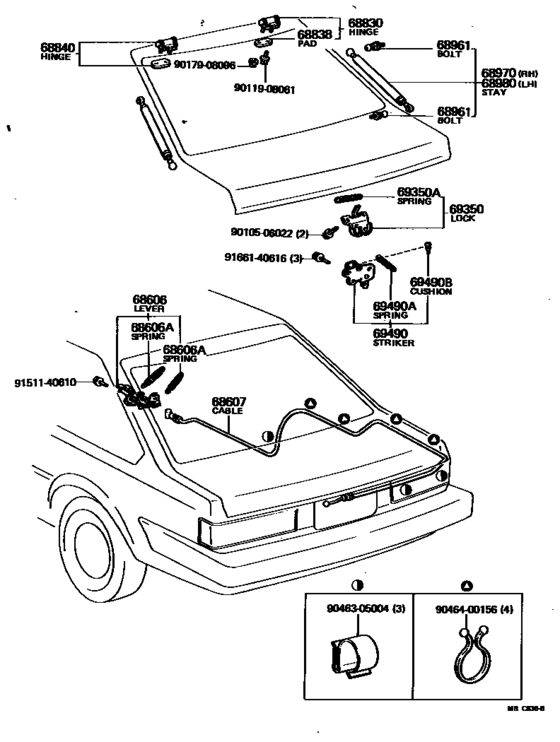

Back Door Lock & Handle ([09.1981 - 07.1985] (8109-8507)CP) Diagram Toyota CARINA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- AA60
- grade
- ST
- body
- CP
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- CARINA FR
- From
- 09.1981
- To
- 05.1983
- Gear Shift Type
- 3FC
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68606
|
68606
64606-14030 Lever Sub-Assy, Luggage Door Lock Open[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
64606-14030 |
US $63.34 |
||
|
68606A
|
68606A
90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
90506-09004 |
US $2.62 |
||
|
68607
|
68607
64607-14170
Cable Sub-Assy, Back Door Lock Control
[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
64607-14170 |
— | ||
|
68830
|
68830
68801-14030 Hinge Assy, Back Door, Rh[09.1981 - 12.1982] AA60,RA63,SA60,TA61,63..CP |
68801-14030 |
US $24.90 |
||
| replacement | |||||
|
68830
|
68830
68801-20021
Hinge Assy, Back Door, Rh
[09.1981 - 12.1982] AA60,RA63,SA60,TA61,63..CP |
68801-20021 |
— | ||
|
68830
|
68830
68801-20020
Hinge Assy, Back Door, Rh
[12.1982 - 07.1985] AA60,SA60,TA61,63..CP |
68801-20020 |
— | ||
| replacement | |||||
|
68830
|
68830
68801-20021
Hinge Assy, Back Door, Rh
[12.1982 - 07.1985] AA60,SA60,TA61,63..CP |
68801-20021 |
— | ||
|
68838
|
68838
68838-14021
Pad, Back Door Hinge
[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
68838-14021 |
— | ||
| replacement | |||||
|
68838
|
68838
68838-14022
Pad, Back Door Hinge
[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
68838-14022 |
— | ||
|
68840
|
68840
68801-14030 Hinge Assy, Back Door, Rh[09.1981 - 12.1982] AA60,RA63,SA60,TA61,63..CP |
68801-14030 |
US $24.90 |
||
| replacement | |||||
|
68840
|
68840
68801-20021
Hinge Assy, Back Door, Rh
[09.1981 - 12.1982] AA60,RA63,SA60,TA61,63..CP |
68801-20021 |
— | ||
|
68840
|
68840
68801-20020
Hinge Assy, Back Door, Rh
[12.1982 - 07.1985] AA60,SA60,TA61,63..CP |
68801-20020 |
— | ||
| replacement | |||||
|
68840
|
68840
68801-20021
Hinge Assy, Back Door, Rh
[12.1982 - 07.1985] AA60,SA60,TA61,63..CP |
68801-20021 |
— | ||
|
68961
|
68961
68961-14020
Bolt, Back Door Stay
[09.1981 - 08.1984] AA6#,RA63,SA60,TA61,63..CP |
68961-14020 |
— | ||
| replacement | |||||
|
68961
|
68961
68961-16010
Bolt, Back Door Stay
[09.1981 - 08.1984] AA6#,RA63,SA60,TA61,63..CP |
68961-16010 |
— | ||
|
68970
|
68970
68950-19205 Stay Assy, Back Door, Rh[09.1981 - 07.1985] AA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE); AA6#,SA60,TA63..CP..(GT,SG,ST) COLD SPEC |
68950-19205 |
US $119.39 |
||
|
68970
|
68970
68950-19285 Stay Assy, Back Door, Rh[09.1981 - 07.1985] AA6#,SA60,TA63..CP..(GT,SG,ST) |
68950-19285 |
US $157.25 |
||
|
68980
|
68980
68950-19205 Stay Assy, Back Door, Rh[09.1981 - 07.1985] AA60,RA63,SA60,TA61,63..CP..(GT,GTT,SE); AA6#,SA60,TA63..CP..(GT,SG,ST) COLD SPEC |
68950-19205 |
US $119.39 |
||
|
68980
|
68980
68950-19285 Stay Assy, Back Door, Rh[09.1981 - 07.1985] AA6#,SA60,TA63..CP..(GT,SG,ST) |
68950-19285 |
US $157.25 |
||
|
69350
|
69350
69350-14041
Lock Assy, Back Door
[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
69350-14041 |
— | ||
|
69350A
|
69350A
90506-08020 Spring(For Back Door Lock)[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
90506-08020 |
US $4.95 |
||
|
69490
|
69490
69430-14070 Striker Assy, Back Door Lock[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
69430-14070 |
US $51.98 |
||
| replacement | |||||
|
69490
|
69490
69430-14050
Striker Assy, Back Door Lock
[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
69430-14050 |
— | ||
|
69490A
|
69490A
90501-07484 Spring(For Back Door Lock Striker)[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP WD=0.7 |
90501-07484 |
US $1.89 |
||
|
69490A
|
69490A
90506-08001 Spring, Tension(For Luggage Compartment Door Lock)[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP WD=0.8 |
90506-08001 |
US $4.37 |
||
|
69490B
|
69490B
90541-06010 Cushion(For Back Door Lock Striker)[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
90541-06010 |
US $3.49 |
||
|
9010506022
|
9010506022
90105-06022 New Genuine Part |
90105-06022 |
US $2.18 |
||
|
9011908061
|
9011908061
90119-08061 BOLT |
90119-08061 |
US $1.12 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.46 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9046305004
|
9046305004
90463-05004 Clamp, No.2(For Luggage Door Lock Control Cable) |
90463-05004 |
US $2.62 |
||
|
9046400156
|
9046400156
90464-00156 Clamp, No.2(For Back Door Lock Control Cable) |
90464-00156 |
US $1.05 |
||
|
9151140610
|
9151140610
91511-40610 New Genuine Part |
91511-40610 |
US $1.89 |
||
| replacement | |||||
|
9151140610
|
9151140610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
