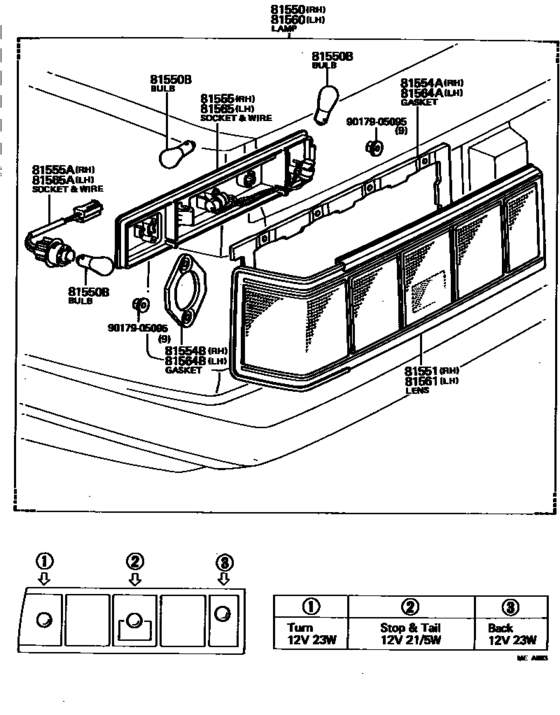

Rear Combination Lamp ([09.1981 - 07.1985] (8109-8507)CP) Diagram Toyota CARINA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- AA60
- grade
- ST
- body
- CP
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- Model
- CARINA FR
- From
- 09.1981
- To
- 05.1983
- Gear Shift Type
- 3FC
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-80112 Lamp Assy, Rear Combination, Rh[09.1981 - 05.1983] AA60,RA63,TA61,63..CP..(GT,GTT,SE,ST) |
81550-80112 |
US $327.60 |
||
|
81550
|
81550
81550-80176 Lamp Assy, Rear Combination, Rh[05.1983 - 07.1985] AA6#,SA60,TA63..CP..(4FC,5F) |
81550-80176 |
US $378.56 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-14400 Lens, Rear Combination Lamp, Rh[05.1983 - 07.1985] AA6#,SA60,TA63..CP..(4FC,5F) |
81551-14400 |
US $260.62 |
||
|
81551
|
81551
81551-14590 Lens, Rear Combination Lamp, Rh[09.1981 - 05.1983] AA60,RA63,TA61,63..CP..(GT,GTT,SE,ST) |
81551-14590 |
US $262.08 |
||
|
81554A
|
81554A
81552-14590 Gasket, Rear Combination Lamp Body, No.1 Rh[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
81552-14590 |
US $17.18 |
||
|
81554B
|
81554B
81552-14390 Gasket, Rear Combination Lamp Lens, Rh[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
81552-14390 |
US $6.26 |
||
|
81555
|
81555
81555-14590
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
81555-14590 |
— | ||
|
81555A
|
81555A
81556-14590 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
81556-14590 |
US $13.40 |
||
|
81560
|
81560
81560-80116 Lamp Assy, Rear Combination, Lh[09.1981 - 05.1983] AA60,RA63,TA61,63..CP..(GT,GTT,SE,ST) |
81560-80116 |
US $327.60 |
||
|
81560
|
81560
81560-80181 Lamp Assy, Rear Combination, Lh[05.1983 - 07.1985] AA6#,SA60,TA63..CP..(4FC,5F) |
81560-80181 |
US $378.56 |
||
|
81561
|
81561
81561-14400 Lens, Rear Combination Lamp, Lh[05.1983 - 07.1985] AA6#,SA60,TA63..CP..(4FC,5F) |
81561-14400 |
US $263.54 |
||
|
81561
|
81561
81561-14580 Lens, Rear Combination Lamp, Lh[09.1981 - 05.1983] AA60,RA63,TA61,63..CP..(GT,GTT,SE,ST) |
81561-14580 |
US $262.08 |
||
|
81564A
|
81564A
81552-14590 Gasket, Rear Combination Lamp Body, No.1 Rh[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
81552-14590 |
US $17.18 |
||
|
81564B
|
81564B
81552-14390 Gasket, Rear Combination Lamp Lens, Rh[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
81552-14390 |
US $6.26 |
||
|
81565
|
81565
81565-14580
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
81565-14580 |
— | ||
|
81565A
|
81565A
81556-14590 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.1981 - 07.1985] AA6#,RA63,SA60,TA61,63..CP |
81556-14590 |
US $13.40 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
