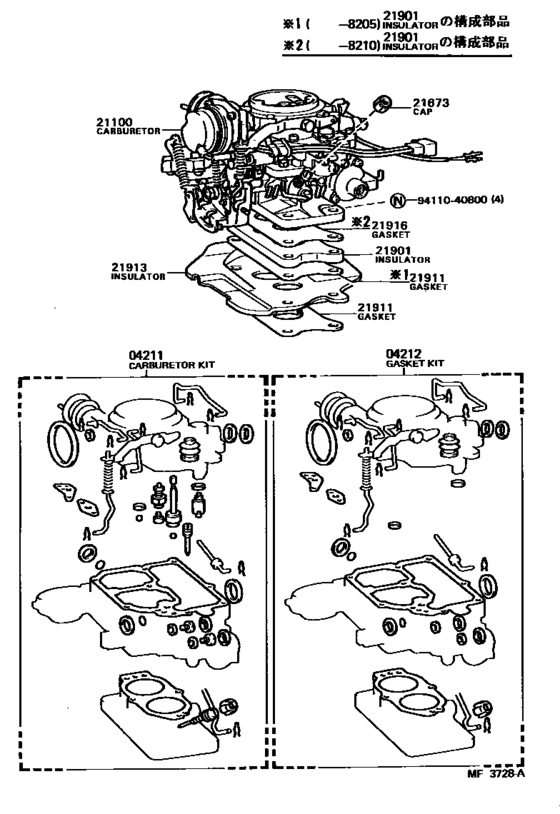

Carburetor Assembly ([09.1981 - ] (8109- )3AU) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04211
|
04211
04211-15080 Carburetor Kit[09.1981 - 12.1987] 3AU..AA60 |
04211-15080 |
US $128.13 |
||
|
04212
|
04212
04212-15050
Gasket Kit, Carburetor
[09.1981 - 12.1987] 3AU..AA60 |
04212-15050 |
— | ||
|
21100
|
21100
21100-15230 Carburetor Assy[09.1981 - 11.1982] 3AU..AA60..MTM |
21100-15230 |
US $1,470.56 |
||
| replacements | |||||
|
21100
|
21100
21100-15231 Carburetor Assy[09.1981 - 11.1982] 3AU..AA60..MTM |
21100-15231 |
US $1,470.56 |
||
|
21100
|
21100
25691-15071 Bracket, Egr Vacuum Modulator[09.1981 - 11.1982] 3AU..AA60..MTM |
25691-15071 |
US $47.61 |
||
|
21100
|
21100
21100-15231 Carburetor Assy[11.1982 - 12.1987] 3AU..AA60..MTM |
21100-15231 |
US $1,470.56 |
||
|
21673
|
21673
21673-13280
Cap, Idle Limit
[11.1982 - 12.1987] 3AU..AA60 |
21673-13280 |
— | ||
|
21673
|
21673
21673-38020 Cap, Idle Limit[09.1981 - 08.1982] 3AU..AA60; 1SU..SA60; 12TJ..TA67 |
21673-38020 |
US $9.90 |
||
|
21901
|
21901
21901-15010 Insulator Sub-Assy, Carburetor Heat, No.1[09.1981 - 05.1982] 3AU..AA60 |
21901-15010 |
US $32.03 |
||
| replacements | |||||
|
21901
|
21901
21914-15021
Gasket, Carburetor
[09.1981 - 05.1982] 3AU..AA60 |
21914-15021 |
— | ||
|
21901
|
21901
21901-15012
Insulator Sub-Assy, Carburetor Heat, No.1
[09.1981 - 05.1982] 3AU..AA60 |
21901-15012 |
— | ||
|
21901
|
21901
21911-15010
Gasket, Carburetor
[09.1981 - 05.1982] 3AU..AA60 |
21911-15010 |
— | ||
|
21901
|
21901
21901-15011
Insulator Sub-Assy, Carburetor Heat, No.1
[05.1982 - 10.1982] 3AU..AA60 |
21901-15011 |
— | ||
| replacements | |||||
|
21901
|
21901
21914-15021
Gasket, Carburetor
[05.1982 - 10.1982] 3AU..AA60 |
21914-15021 |
— | ||
|
21901
|
21901
21901-15012
Insulator Sub-Assy, Carburetor Heat, No.1
[05.1982 - 10.1982] 3AU..AA60 |
21901-15012 |
— | ||
|
21901
|
21901
21901-15012
Insulator Sub-Assy, Carburetor Heat, No.1
[10.1982 - 12.1987] 3AU..AA60 |
21901-15012 |
— | ||
|
21911
|
21911
21911-15010
Gasket, Carburetor
[09.1981 - 07.1982] 3AU..AA60 |
21911-15010 |
— | ||
|
21911
|
21911
21914-15020 Gasket, Carburetor[07.1982 - 12.1987] 3AU..AA60 |
21914-15020 |
US $8.01 |
||
| replacement | |||||
|
21911
|
21911
21914-15021
Gasket, Carburetor
[07.1982 - 12.1987] 3AU..AA60 |
21914-15021 |
— | ||
|
21913
|
21913
21913-15010
Insulator, Carburetor Heat, No.2
[09.1981 - 12.1987] 3AU..AA60 |
21913-15010 |
— | ||
|
21916
|
21916
21914-15020 Gasket, Carburetor[10.1982 - 12.1987] 3AU..AA60 |
21914-15020 |
US $8.01 |
||
| replacement | |||||
|
21916
|
21916
21914-15021
Gasket, Carburetor
[10.1982 - 12.1987] 3AU..AA60 |
21914-15021 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
