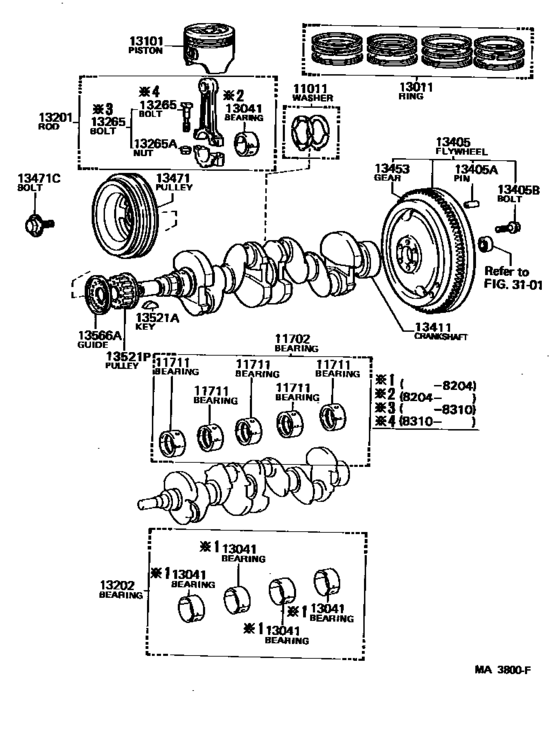

Crankshaft & Piston ([09.1981 - ] (8109- )3AU) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[09.1981 - 12.1987] 3AU,4AGEU..AA6# ＳＴＤ |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[09.1981 - 12.1987] 3AU,4AGEU..AA6# ＳＴＤ |
11011-15021 |
US $31.46 |
||
|
11702
|
11702
11704-15011 Bearing Set, Crankshaft[09.1981 - 01.1983] 3AU..AA60 U/S 0.25 |
11704-15011 |
US $297.02 |
||
|
11702
|
11702
11704-15050 Bearing Set, Crankshaft[01.1983 - 12.1987] 3AU,4AGEU..AA6# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-15050 |
US $301.39 |
||
| replacement | |||||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[01.1983 - 12.1987] 3AU,4AGEU..AA6# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-16010 |
US $291.78 |
||
|
11711
|
11711
11701-15011-01 Bearing, Crankshaft[09.1981 - 01.1983] 3AU..AA60 MARK"1",MARK 1 |
11701-15011-01 |
US $51.25 |
||
|
11711
|
11711
11701-15011-02 Bearing, Crankshaft[09.1981 - 01.1983] 3AU..AA60 MARK"2",MARK 2 |
11701-15011-02 |
US $51.25 |
||
|
11711
|
11711
11701-15011-03 Bearing, Crankshaft[09.1981 - 01.1983] 3AU..AA60 MARK"3",MARK 3 |
11701-15011-03 |
US $51.25 |
||
|
11711
|
11711
11701-15030-01
Bearing, Crankshaft
[01.1983 - 03.1984] 3AU..AA60 MARK"1",MARK 1 |
11701-15030-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[01.1983 - 03.1984] 3AU..AA60 MARK"1",MARK 1 |
11701-16010-01 |
US $52.14 |
||
|
11711
|
11711
11701-15030-02 Bearing, Crankshaft[01.1983 - 03.1984] 3AU..AA60 MARK"2",MARK 2 |
11701-15030-02 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[01.1983 - 03.1984] 3AU..AA60 MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15030-03 Bearing, Crankshaft[01.1983 - 03.1984] 3AU..AA60 MARK"3",MARK 3 |
11701-15030-03 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[01.1983 - 03.1984] 3AU..AA60 MARK"3",MARK 3 |
11701-16010-03 |
from US $20.75 |
||
|
11711
|
11711
11701-15050-01 Bearing, Crankshaft[07.1984 - 12.1987] 3AU,4AGEU..AA6# MARK"1",MARK 1 |
11701-15050-01 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[07.1984 - 12.1987] 3AU,4AGEU..AA6# MARK"1",MARK 1 |
11701-16010-01 |
US $52.14 |
||
|
11711
|
11711
11701-15050-02
Bearing, Crankshaft
[07.1984 - 12.1987] 3AU,4AGEU..AA6# MARK"2",MARK 2 |
11701-15050-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[07.1984 - 12.1987] 3AU,4AGEU..AA6# MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15050-03 Bearing, Crankshaft[07.1984 - 12.1987] 3AU,4AGEU..AA6# MARK"3",MARK 3 |
11701-15050-03 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[07.1984 - 12.1987] 3AU,4AGEU..AA6# MARK"3",MARK 3 |
11701-16010-03 |
from US $20.75 |
||
|
11711
|
11711
11701-15050-04 Bearing, Crankshaft[08.1986 - 12.1987] 3AU..AA60 MARK"4",MARK 4 |
11701-15050-04 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-04 Bearing, Crankshaft[08.1986 - 12.1987] 3AU..AA60 MARK"4",MARK 4 |
11701-16010-04 |
US $52.14 |
||
|
11711
|
11711
11701-15050-05 Bearing, Crankshaft[08.1986 - 12.1987] 3AU..AA60 MARK"5",MARK 5 |
11701-15050-05 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-05 Bearing, Crankshaft[08.1986 - 12.1987] 3AU..AA60 MARK"5",MARK 5 |
11701-16010-05 |
US $49.62 |
||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[03.1984 - 07.1984] 3AU,4AGEU..AA6# MARK"1",MARK 1 |
11701-16010-01 |
US $52.14 |
||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[03.1984 - 07.1984] 3AU,4AGEU..AA6# MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[03.1984 - 07.1984] 3AU,4AGEU..AA6# MARK"3",MARK 3 |
11701-16010-03 |
from US $20.75 |
||
|
13011
|
13011
13011-15010 Ring Set, Piston[09.1981 - 04.1983] 3AU..AA60 STD |
13011-15010 |
US $183.46 |
||
| replacement | |||||
|
13011
|
13011
13011-15011 Ring Set, Piston[09.1981 - 04.1983] 3AU..AA60 STD |
13011-15011 |
US $198.02 |
||
|
13011
|
13011
13011-15011 Ring Set, Piston[04.1983 - 12.1987] 3AU..AA60 ＳＴＤ,STD |
13011-15011 |
US $198.02 |
||
|
13011
|
13011
13013-15010 Ring Set, Piston[04.1983 - 12.1987] 3AU..AA60 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-15010 |
US $198.02 |
||
|
13011
|
13011
13013-15011
Ring Set, Piston
[09.1981 - 04.1983] 3AU..AA60 O/S 0.50 |
13013-15011 |
— | ||
|
13011
|
13011
13014-15010 Ring Set, Piston[09.1981 - 04.1983] 3AU..AA60 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-15010 |
US $198.02 |
||
|
13011
|
13011
13015-15010 Ring Set, Piston[09.1981 - 04.1983] 3AU..AA60 Ｏ／Ｓ １．００,O/S 1.00 |
13015-15010 |
US $198.02 |
||
|
13041
|
13041
13041-15011-01 Bearing, Connecting Rod[09.1981 - 10.1983] 3AU..AA60 MARK"1",MARK 1 |
13041-15011-01 |
US $37.56 |
||
|
13041
|
13041
13041-15011-02 Bearing, Connecting Rod[09.1981 - 10.1983] 3AU..AA60 MARK"2",MARK 2 |
13041-15011-02 |
US $37.56 |
||
|
13041
|
13041
13041-15011-03 Bearing, Connecting Rod[09.1981 - 10.1983] 3AU..AA60 MARK"3",MARK 3 |
13041-15011-03 |
US $37.56 |
||
|
13041
|
13041
13041-15030-01 Bearing, Connecting Rod[10.1983 - 12.1987] 3AU..AA60 MARK"1",MARK 1 |
13041-15030-01 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-01 Bearing, Connecting Rod[10.1983 - 12.1987] 3AU..AA60 MARK"1",MARK 1 |
13041-15031-01 |
US $38 |
||
|
13041
|
13041
13041-15030-02 Bearing, Connecting Rod[10.1983 - 12.1987] 3AU..AA60 MARK"2",MARK 2 |
13041-15030-02 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-02 Bearing, Connecting Rod[10.1983 - 12.1987] 3AU..AA60 MARK"2",MARK 2 |
13041-15031-02 |
from US $15.37 |
||
|
13041
|
13041
13041-15030-03 Bearing, Connecting Rod[10.1983 - 12.1987] 3AU..AA60 MARK"3",MARK 3 |
13041-15030-03 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-03 Bearing, Connecting Rod[10.1983 - 12.1987] 3AU..AA60 MARK"3",MARK 3 |
13041-15031-03 |
from US $15.33 |
||
|
13101
|
13101
13101-15020 Piston Sub-Assy, W/pin[09.1981 - 02.1988] 3AU..AA60 ＳＴＤ,STD |
13101-15020 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13101-15020-02
Piston Sub-Assy, W/pin
[09.1981 - 02.1988] 3AU..AA60 ＳＴＤ,STD |
13101-15020-02 |
— | ||
|
13101
|
13101
13103-15020 Piston Sub-Assy, W/pin[09.1981 - 12.1987] 3AU..AA60 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-15020 |
US $90.27 |
||
|
13101
|
13101
13104-15020 Piston Sub-Assy, W/pin[09.1981 - 12.1987] 3AU..AA60 Ｏ／Ｓ ０．７５,O/S 0.75 |
13104-15020 |
US $90.27 |
||
|
13101
|
13101
13105-15020 Piston Sub-Assy, W/pin[09.1981 - 12.1987] 3AU..AA60 Ｏ／Ｓ １．００,O/S 1.00 |
13105-15020 |
US $90.27 |
||
|
13201
|
13201
13201-15010 Rod Sub-Assy, Connecting[09.1981 - 04.1982] 3AU..AA60 |
13201-15010 |
US $151.42 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[09.1981 - 04.1982] 3AU..AA60 |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19015 Rod Sub-Assy, Connecting[04.1982 - 05.1983] 3AU..AA60 |
13201-19015 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[04.1982 - 05.1983] 3AU..AA60 |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19016 Rod Sub-Assy, Connecting[05.1983 - 06.1983] 3AU..AA60 |
13201-19016 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[05.1983 - 06.1983] 3AU..AA60 |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19045 Rod Sub-Assy, Connecting[06.1983 - 10.1983] 3AU..AA60 |
13201-19045 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[06.1983 - 10.1983] 3AU..AA60 |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19055
Rod Sub-Assy, Connecting
[10.1983 - 12.1987] 3AU..AA60 |
13201-19055 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[10.1983 - 12.1987] 3AU..AA60 |
13201-19056 |
US $147.06 |
||
|
13202
|
13202
13204-15011 Bearing Set, Connecting Rod[09.1981 - 10.1983] 3AU..AA60 U/S 0.25 |
13204-15011 |
US $167.44 |
||
|
13202
|
13202
13204-15030
Bearing Set, Connecting Rod (0.25)
[10.1983 - 12.1987] 3AU..AA60 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-15030 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-15031 Bearing Set, Connecting Rod (0.25)[10.1983 - 12.1987] 3AU..AA60 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-15031 |
US $145.60 |
||
|
13265
|
13265
13265-15020 Bolt, Connecting Rod[10.1983 - 08.1987] 3AU,4AGEU..AA6# |
13265-15020 |
US $6.41 |
||
| replacements | |||||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[10.1983 - 08.1987] 3AU,4AGEU..AA6# |
13265-16010 |
US $8 |
||
|
13265
|
13265
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[10.1983 - 08.1987] 3AU,4AGEU..AA6# |
90170-09003 |
US $2.88 |
||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[08.1987 - 12.1987] 3AU..AA60 |
13265-16010 |
US $8 |
||
|
13265
|
13265
13265-19015 Bolt, Connecting Rod[09.1981 - 07.1983] 3AU,4AGEU..AA6# |
13265-19015 |
US $6.70 |
||
|
13265A
|
13265A
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[08.1987 - 12.1987] 3AU..AA60 |
90170-09003 |
US $2.88 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[09.1981 - 07.1983] 3AU,4AGEU..AA6# |
90179-08014 |
from US $1.27 |
||
|
13405
|
13405
13405-15030 Flywheel Sub-Assy[08.1987 - 04.1988] 3AU..AA60..MTM |
13405-15030 |
US $292.66 |
||
|
13405
|
13405
13405-19075 Flywheel Sub-Assy[09.1981 - 08.1987] 3AU..AA60..MTM |
13405-19075 |
US $329.06 |
||
| replacement | |||||
|
13405
|
13405
13405-15030 Flywheel Sub-Assy[09.1981 - 08.1987] 3AU..AA60..MTM |
13405-15030 |
US $292.66 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[09.1981 - 04.1988] 5KJ..KA67..MTM 長さ＝１８，外径＝８,L=18,OD=8; 3AU,4AGEU..AA6#..MTM 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $1.07 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[09.1981 - 12.1987] 3AU..AA60..MTM *10-1.25PX26-18; 12TJ,2TGEU,3TEU..TA6#..MTM *10-1.25PX26-18 |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-15011 Crankshaft[09.1981 - 08.1982] 3AU..AA60 |
13411-15011 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[09.1981 - 08.1982] 3AU..AA60 |
13411-15900 |
US $1,118.21 |
||
|
13411
|
13411
13411-15021 Crankshaft[08.1982 - 01.1983] 3AU..AA60 |
13411-15021 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[08.1982 - 01.1983] 3AU..AA60 |
13411-15900 |
US $1,118.21 |
||
|
13411
|
13411
13411-15030 Crankshaft[01.1983 - 01.1987] 3AU..AA60 |
13411-15030 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[01.1983 - 01.1987] 3AU..AA60 |
13411-15900 |
US $1,118.21 |
||
|
13411
|
13411
13411-15040 Crankshaft[01.1987 - 12.1987] 3AU..AA60 |
13411-15040 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[01.1987 - 12.1987] 3AU..AA60 |
13411-15900 |
US $1,118.21 |
||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[09.1981 - 04.1988] 5KJ..KA67..MTM N=106; 3AU,4AGEU..AA6#..MTM N=106 |
13453-10010 |
US $57.26 |
||
|
13471
|
13471
13407-15011 Pulley, Crankshaft[09.1981 - 10.1981] 3AU..AA60 |
13407-15011 |
US $147.06 |
||
| replacement | |||||
|
13471
|
13471
13470-15050 Pulley, Crankshaft[09.1981 - 10.1981] 3AU..AA60 |
13470-15050 |
US $149.97 |
||
|
13471
|
13471
13407-15012 Pulley, Crankshaft[10.1981 - 01.1982] 3AU..AA60 |
13407-15012 |
US $147.06 |
||
| replacement | |||||
|
13471
|
13471
13470-15050 Pulley, Crankshaft[10.1981 - 01.1982] 3AU..AA60 |
13470-15050 |
US $149.97 |
||
|
13471
|
13471
13407-15013 Pulley, Crankshaft[01.1982 - 08.1985] 3AU..AA60 |
13407-15013 |
US $147.06 |
||
| replacement | |||||
|
13471
|
13471
13470-15050 Pulley, Crankshaft[01.1982 - 08.1985] 3AU..AA60 |
13470-15050 |
US $149.97 |
||
|
13471
|
13471
13470-15050 Pulley, Crankshaft[08.1985 - 12.1987] 3AU..AA60 |
13470-15050 |
US $149.97 |
||
|
13471C
|
13471C
90105-12012 Bolt(For Crankshaft Pulley Set)[09.1981 - 01.1986] 3AU,4AGEU..AA6# |
90105-12012 |
US $4.89 |
||
|
13471C
|
13471C
90119-12101 Bolt(For Crankshaft Pulley Set)[01.1986 - 12.1987] 3AU..AA60 |
90119-12101 |
US $5.53 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[09.1981 - 09.1986] 5KJ..KA67; 18RGEU..RA63; 3AU,4AGEU..AA6#; 12TJ,2TGEU,3T#..TA6# |
90280-05010 |
from US $1.89 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[09.1986 - 04.1988] 5KJ..KA67; 3AU..AA60 |
95161-10519 |
from US $4.16 |
||
|
13521P
|
13521P
13521-15010 Pulley, Crankshaft Timing[09.1981 - 12.1987] 3AU..AA60 N=18 |
13521-15010 |
US $36.33 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[09.1981 - 12.1987] 3AU,4AGEU..AA6# |
13566-15010 |
from US $5.44 |
||
