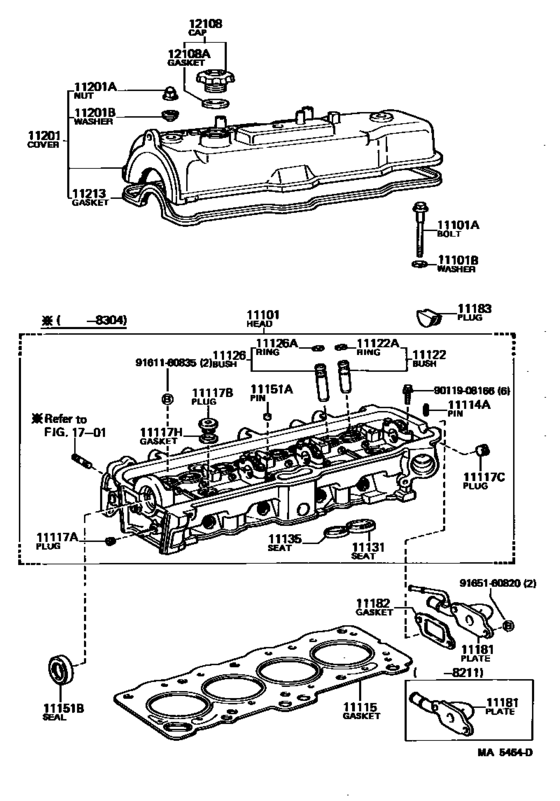

Cylinder Head ([09.1981 - 04.1983] (8109-8304)3AU) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-15021
Head Sub-Assy, Cylinder
[04.1983 - 12.1987] 3AU..AA60 |
11101-15021 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-15031
Head Sub-Assy, Cylinder
[04.1983 - 12.1987] 3AU..AA60 |
11101-15031 |
— | ||
|
11101
|
11101
11101-19125
Head Sub-Assy, Cylinder
[09.1981 - 01.1982] 3AU..AA60 |
11101-19125 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-15020
Head Sub-Assy, Cylinder
[09.1981 - 01.1982] 3AU..AA60 |
11101-15020 |
— | ||
|
11101
|
11101
11101-19126
Head Sub-Assy, Cylinder
[01.1982 - 04.1983] 3AU..AA60 |
11101-19126 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-15020
Head Sub-Assy, Cylinder
[01.1982 - 04.1983] 3AU..AA60 |
11101-15020 |
— | ||
|
11101A
|
11101A
90109-10025 Bolt(For Cylinder Head Set)[09.1981 - 12.1987] 3AU..AA60 *10-1.25PX97.5-22 |
90109-10025 |
US $8.64 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[09.1981 - 04.1988] 1SU..SA60; 3AU,4AGEU..AA6# |
90201-10344 |
US $1.76 |
||
|
11114A
|
11114A
90254-03003
Pin, Straight
[09.1981 - 06.1984] 3AU..AA60 L=8,OD=3.2 |
90254-03003 |
— | ||
|
11115
|
11115
11115-15042
Gasket, Cylinder Head
[09.1981 - 03.1982] 3AU..AA60 |
11115-15042 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-15043
Gasket, Cylinder Head
[09.1981 - 03.1982] 3AU..AA60 |
11115-15043 |
— | ||
|
11115
|
11115
11115-15060
Gasket, Cylinder Head
[03.1982 - 12.1987] 3AU..AA60 |
11115-15060 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-15061
Gasket, Cylinder Head
[03.1982 - 12.1987] 3AU..AA60 |
11115-15061 |
— | ||
|
11117A
|
11117A
90344-51002 Plug, W/head Taper Screw, No.1[09.1981 - 06.1984] 3AU..AA60 |
90344-51002 |
US $3.93 |
||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[09.1981 - 12.1987] 3AU..AA60 |
90341-20002 |
from US $2.88 |
||
|
11117C
|
11117C
90344-54002
Plug, W/head Taper Screw, No.3
[09.1981 - 12.1987] 3AU..AA60 |
90344-54002 |
— | ||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[09.1981 - 12.1987] 3AU..AA60 |
90430-20004 |
from US $1.01 |
||
|
11122
|
11122
11122-15011 Bush, Intake Valve Guide[02.1986 - 12.1987] 3AU..AA60 ＳＴＤ,STD |
11122-15011 |
US $11.50 |
||
|
11122
|
11122
11122-15020 Bush, Intake Valve Guide[09.1981 - 02.1986] 3AU..AA60 ＳＴＤ,STD |
11122-15020 |
US $12.23 |
||
|
11122
|
11122
11123-15011 Bush, Intake Valve Guide[02.1986 - 12.1987] 3AU..AA60 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-15011 |
US $11.50 |
||
|
11122
|
11122
11123-15020 Bush, Intake Valve Guide[09.1981 - 02.1986] 3AU..AA60 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-15020 |
US $12.23 |
||
|
11122A
|
11122A
90520-10001 Ring, Shaft Snap (For Valve Guide Bush)[09.1981 - 02.1986] 3AU..AA60 |
90520-10001 |
US $1.75 |
||
|
11126
|
11126
11126-15011 Bush, Exhaust Valve Guide[02.1986 - 12.1987] 3AU..AA60 ＳＴＤ,STD |
11126-15011 |
US $11.50 |
||
|
11126
|
11126
11126-15020 Bush, Intake Valve Guide[09.1981 - 02.1986] 3AU..AA60 ＳＴＤ,STD |
11126-15020 |
US $12.58 |
||
|
11126
|
11126
11127-15011 Bush, Exhaust Valve Guide[02.1986 - 12.1987] 3AU..AA60 Ｏ／Ｓ ０．０５,O/S 0.05 |
11127-15011 |
US $11.50 |
||
|
11126
|
11126
11127-15020 Bush, Intake Valve Guide[09.1981 - 02.1986] 3AU..AA60 Ｏ／Ｓ ０．０５,O/S 0.05 |
11127-15020 |
US $11.94 |
||
|
11126A
|
11126A
90520-10001 Ring, Shaft Snap (For Valve Guide Bush)[09.1981 - 02.1986] 3AU..AA60 |
90520-10001 |
US $1.75 |
||
|
11131
|
11131
11131-15010 Seat, Intake Valve[09.1981 - 12.1987] 3AU..AA60 ＳＴＤ,STD |
11131-15010 |
US $12.38 |
||
| replacement | |||||
|
11131
|
11131
11131-15020 Seat, Intake Valve[09.1981 - 12.1987] 3AU..AA60 ＳＴＤ,STD |
11131-15020 |
US $13.25 |
||
|
11131
|
11131
11132-15010 Seat, Intake Valve[09.1981 - 12.1987] 3AU..AA60 Ｏ／Ｓ ０．０３,O/S 0.03 |
11132-15010 |
US $12.23 |
||
| replacement | |||||
|
11131
|
11131
11132-15020 Seat, Intake Valve[09.1981 - 12.1987] 3AU..AA60 Ｏ／Ｓ ０．０３,O/S 0.03 |
11132-15020 |
US $13.40 |
||
|
11135
|
11135
11135-15010 Seat, Exhaust Valve[09.1981 - 04.1982] 3AU..AA60 STD |
11135-15010 |
US $18.35 |
||
| replacement | |||||
|
11135
|
11135
11135-70030 Seat, Exhaust Valve[09.1981 - 04.1982] 3AU..AA60 STD |
11135-70030 |
US $20.82 |
||
|
11135
|
11135
11135-15020 Seat, Exhaust Valve[04.1982 - 08.1987] 3AU..AA60 ＳＴＤ,STD |
11135-15020 |
US $34.65 |
||
| replacement | |||||
|
11135
|
11135
11135-15021 Seat, Exhaust Valve[04.1982 - 08.1987] 3AU..AA60 ＳＴＤ,STD |
11135-15021 |
US $17.33 |
||
|
11135
|
11135
11135-15021 Seat, Exhaust Valve[08.1987 - 12.1987] 3AU..AA60 ＳＴＤ,STD |
11135-15021 |
US $17.33 |
||
|
11135
|
11135
11136-15010 Seat, Exhaust Valve[09.1981 - 04.1982] 3AU..AA60 O/S 0.03 |
11136-15010 |
US $18.35 |
||
| replacement | |||||
|
11135
|
11135
11136-70030 Seat, Exhaust Valve[09.1981 - 04.1982] 3AU..AA60 O/S 0.03 |
11136-70030 |
US $21.55 |
||
|
11135
|
11135
11136-15020 Seat, Exhaust Valve[04.1982 - 08.1987] 3AU..AA60 Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-15020 |
US $19.36 |
||
| replacement | |||||
|
11135
|
11135
11136-15021 Seat, Exhaust Valve[04.1982 - 08.1987] 3AU..AA60 Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-15021 |
US $17.33 |
||
|
11135
|
11135
11136-15021 Seat, Exhaust Valve[08.1987 - 12.1987] 3AU..AA60 Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-15021 |
US $17.33 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[09.1981 - 12.1987] 3AU..AA60 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.50 |
||
|
11151B
|
11151B
90311-35003 Seal, Oil(For Camshaft Setting)[09.1981 - 08.1983] 3AU..AA60 |
90311-35003 |
US $3.79 |
||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[09.1981 - 08.1983] 3AU..AA60 |
90311-35040 |
from US $5.60 |
||
|
11151B
|
11151B
90311-35013
Seal, Oil(For Camshaft Setting)
[08.1983 - 12.1987] 3AU..AA60 |
90311-35013 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[08.1983 - 12.1987] 3AU..AA60 |
90311-35040 |
from US $5.60 |
||
|
11181
|
11181
11181-15020
Plate, Cylinder Head, Rear
[09.1981 - 11.1982] 3AU..AA60 |
11181-15020 |
— | ||
|
11181
|
11181
11181-15060
Plate, Cylinder Head, Rear
[11.1982 - 12.1987] 3AU..AA60 |
11181-15060 |
— | ||
|
11182
|
11182
11182-15010 Gasket, Cylinder Head Rear Plate[09.1981 - 12.1981] 3AU..AA60 |
11182-15010 |
US $6.70 |
||
| replacement | |||||
|
11182
|
11182
11182-15012
Gasket, Cylinder Head Rear Plate
[09.1981 - 12.1981] 3AU..AA60 |
11182-15012 |
— | ||
|
11182
|
11182
11182-15011
Gasket, Cylinder Head Rear Plate
[12.1981 - 12.1987] 3AU..AA60 |
11182-15011 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-15012
Gasket, Cylinder Head Rear Plate
[12.1981 - 12.1987] 3AU..AA60 |
11182-15012 |
— | ||
|
11183
|
11183
11183-15010 Plug, Semicircular[09.1981 - 12.1987] 3AU..AA60 |
11183-15010 |
US $8.56 |
||
|
11201
|
11201
11210-19016 Cover Sub-Assy, Cylinder Head[09.1981 - 05.1983] 3AU..AA60 |
11210-19016 |
US $176.18 |
||
|
11201
|
11201
11210-19025 Cover Sub-Assy, Cylinder Head[05.1983 - 12.1987] 3AU..AA60 |
11210-19025 |
US $179.09 |
||
|
11201A
|
11201A
90176-08007 Nut, Cap(For Cylinder Head Cover)[09.1981 - 12.1987] 3AU..AA60 |
90176-08007 |
from US $1.56 |
||
|
11201B
|
11201B
90210-09001
Washer, Seal(For Cylinder Head Cover)
[09.1981 - 12.1987] 3AU..AA60 |
90210-09001 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90210-09019 Washer, Seal(For Cylinder Head Cover)[09.1981 - 12.1987] 3AU..AA60 |
90210-09019 |
from US $1.29 |
||
|
11213
|
11213
11213-15020 Gasket, Cylinder Head Cover[09.1981 - 12.1987] 3AU..AA60 |
11213-15020 |
US $29.88 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[09.1981 - 01.1983] 3AU..AA60; 1C..CA6#; 1SU..SA60; 12TJ,2TGEU,3TEU..TA6# |
12180-13010 |
from US $16.11 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[04.1986 - 05.1987] 3AU..AA60 |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[04.1986 - 05.1987] 3AU..AA60 |
12180-55010 |
from US $10.08 |
||
|
12108
|
12108
12180-62010
Cap Sub-Assy, Oil Filler
[05.1987 - 12.1987] 3AU..AA60 |
12180-62010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-65011 Cap Sub-Assy, Oil Filler[05.1987 - 12.1987] 3AU..AA60 |
12180-65011 |
from US $14.45 |
||
|
12108
|
12108
12180-70010
Cap Sub-Assy, Oil Filler
[03.1983 - 08.1985] 1C..CA6#; 5KJ..KA67; 3TGTEU..TA63; 3AU,4AGEU..AA6# |
12180-70010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[03.1983 - 08.1985] 1C..CA6#; 5KJ..KA67; 3TGTEU..TA63; 3AU,4AGEU..AA6# |
12180-E0010 |
US $16.26 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[09.1981 - 04.1988] 1C..CA6#; 5KJ..KA67; 1SU..SA60; 3AU,4AGEU..AA6#; 12TJ,2TGEU,3T#..TA6# |
90430-37140 |
from US $1.25 |
||
|
9011908166
|
9011908166
90119-08166 New Genuine Part |
90119-08166 |
US $2.18 |
||
| replacement | |||||
|
9011908166
|
9011908166
90119-08598 New Genuine Part |
90119-08598 |
US $2.33 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.05 |
||
