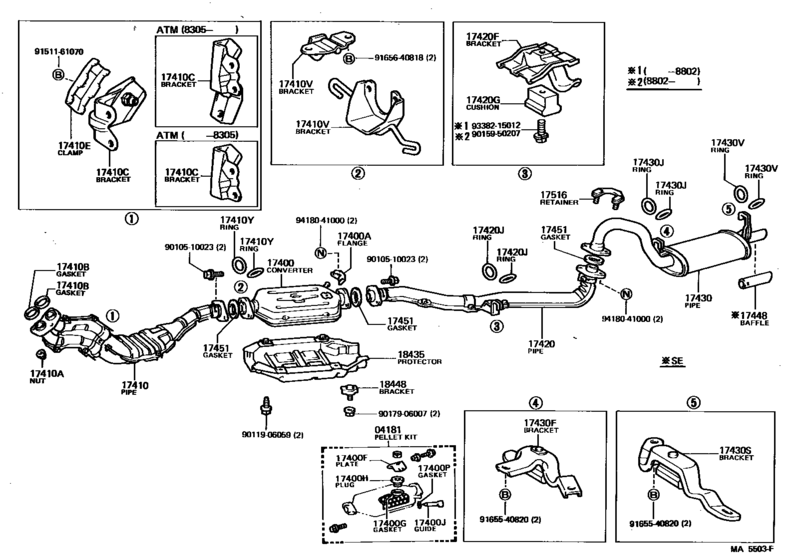

Exhaust Pipe ([09.1981 - ] (8109- )3AU) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04181
|
04181
04181-41030 Pellet Kit[09.1981 - 04.1988] 18RGEU,3AU,1SU,2TGEU,3TEU..AA60,RA63,SA60,TA61,63 |
04181-41030 |
US $658.11 |
||
|
17400
|
17400
17400-15010 Converter Assy, W/catalyst[09.1981 - 10.1981] 3AU,1SU..AA60,SA60 |
17400-15010 |
US $790.61 |
||
| replacement | |||||
|
17400
|
17400
17400-15040 Converter Assy, W/catalyst[09.1981 - 10.1981] 3AU,1SU..AA60,SA60 |
17400-15040 |
US $790.61 |
||
|
17400
|
17400
17400-15040 Converter Assy, W/catalyst[10.1981 - 04.1988] 3AU,1SU..AA60,SA60 |
17400-15040 |
US $790.61 |
||
|
17400A
|
17400A
18491-64010 Flange, Thermosenser Inlet[09.1981 - 04.1988] 3AU,1SU..AA60,SA60 |
18491-64010 |
US $10.48 |
||
|
17400F
|
17400F
18493-38011 Plate, Catalyzer Inlet Plug Lock[09.1981 - 04.1988] 18RGEU,3AU,1SU,2TGEU,3TEU..AA60,RA63,SA60,TA61,63 |
18493-38011 |
US $3.93 |
||
|
17400G
|
17400G
18494-38010 Gasket, Catalyzer Inlet[09.1981 - 04.1988] 18RGEU,3AU,1SU,2TGEU,3TEU..AA60,RA63,SA60,TA61,63 |
18494-38010 |
US $8.30 |
||
|
17400H
|
17400H
90341-24093 Plug, W/head Straight Screw(For Catalyzer Inlet)[09.1981 - 04.1988] 18RGEU,3AU,1SU,2TGEU,3TEU..AA60,RA63,SA60,TA61,63 |
90341-24093 |
US $6.41 |
||
|
17400J
|
17400J
18492-45010 Guide, Catalytic Converter Sensor[09.1981 - 04.1988] 18RGEU,3AU,1SU,2TGEU,3TEU..AA60,RA63,SA60,TA61,63 |
18492-45010 |
US $5.82 |
||
|
17400P
|
17400P
90430-08252 Gasket(For Catalytic Converter Sensor Guide)[09.1981 - 04.1988] 18RGEU,3AU,1SU,2TGEU,3TEU..AA60,RA63,SA60,TA61,63 |
90430-08252 |
US $3.84 |
||
|
17410
|
17410
17410-15060 Pipe Assy, Exhaust, Front[09.1981 - 12.1987] 3AU..AA60 |
17410-15060 |
US $304.30 |
||
|
17410A
|
17410A
90179-10028 Nut, Exhaust Pipe Set Stud Bolt[09.1981 - 02.1984] 12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,2TGEU,3T#..AA6#,CA6#,KA67,RA63,SA60,TA6# |
90179-10028 |
US $5.12 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[02.1984 - 04.1988] 3AU,4AGEU,1C,5KJ,1SU,3TGTEU..AA6#,CA6#,KA67,SA60,TA63 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[02.1984 - 04.1988] 3AU,4AGEU,1C,5KJ,1SU,3TGTEU..AA6#,CA6#,KA67,SA60,TA63 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06001
Gasket(For Manifold Extension)
[09.1981 - 04.1988] 12TJ,3AU,1SU,3TEU..AA60,SA60,TA63,67 |
90917-06001 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06038 Gasket, Exhaust Pipe[09.1981 - 04.1988] 12TJ,3AU,1SU,3TEU..AA60,SA60,TA63,67 |
90917-06038 |
from US $2.34 |
||
|
17410C
|
17410C
17571-15040 Bracket, Exhaust Pipe Front (For Front)[09.1981 - 12.1987] 3AU..AA60..MTM |
17571-15040 |
US $28.10 |
||
|
17410E
|
17410E
90917-04030 Clamp No.1, Exhaust Pipe Front (For Front)[09.1981 - 04.1988] 12TJ,18RGEU,3AU,4AGEU,1SU,2TGEU,3TEU..AA6#,RA63,SA60,TA6# |
90917-04030 |
US $4.89 |
||
|
17410V
|
17410V
17503-15030 Bracket, Exhaust Pipe Front (For Rear)[09.1981 - 04.1988] 3AU,1SU..AA60,SA60 CCO SUPPORT |
17503-15030 |
US $35.38 |
||
|
17410V
|
17410V
17504-70010 Bracket, Exhaust Pipe Front (For Rear)[09.1981 - 04.1988] 3AU,1SU..AA60,SA60 SIDE MEMBER |
17504-70010 |
US $18.64 |
||
|
17410Y
|
17410Y
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[09.1981 - 04.1988] 18RGEU,3AU,4AGEU,1SU,2TGEU,3T#..AA6#,RA63,SA60,TA61,63 |
90301-36001 |
from US $5.05 |
||
|
17420
|
17420
17420-15010 Pipe Assy, Exhaust, Center[09.1981 - 12.1987] 3AU..AA60 |
17420-15010 |
US $279.55 |
||
|
17420F
|
17420F
17506-26050 Bracket, Exhaust Pipe, Center[09.1981 - 04.1988] 3AU,1C,1SU..AA60,CA60,SA60 |
17506-26050 |
US $22.86 |
||
|
17420G
|
17420G
17591-36010
Cushion, Exhaust Pipe Front (For Rear)
[09.1981 - 02.1988] 3AU,1C,1SU..AA60,CA60,SA60 |
17591-36010 |
— | ||
| replacements | |||||
|
17420G
|
17420G
17591-36011 Cushion, Exhaust Pipe Center, Center[09.1981 - 02.1988] 3AU,1C,1SU..AA60,CA60,SA60 |
17591-36011 |
US $17.41 |
||
|
17420G
|
17420G
90159-50207 New Genuine Part[09.1981 - 02.1988] 3AU,1C,1SU..AA60,CA60,SA60 |
90159-50207 |
US $0.92 |
||
|
17420J
|
17420J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1981 - 04.1988] 3AU,1C,1SU..AA60,CA6#,SA60 |
90301-34207 |
US $9.92 |
||
|
17430
|
17430
17430-15070 Pipe Assy, Exhaust, Tail[09.1981 - 05.1983] 3AU,1SU..AA60,SA60..CP,SED |
17430-15070 |
US $381.47 |
||
| replacement | |||||
|
17430
|
17430
17430-15280 Pipe Assy, Exhaust, Tail[09.1981 - 05.1983] 3AU,1SU..AA60,SA60..CP,SED |
17430-15280 |
US $381.47 |
||
|
17430
|
17430
17430-15280 Pipe Assy, Exhaust, Tail[05.1983 - 12.1987] 3AU,1SU..AA60,SA60..(CP,SED)..(DLX,SG,ST,STD) |
17430-15280 |
US $381.47 |
||
|
17430F
|
17430F
17507-26050
Bracket, Exhaust Tail Pipe(For Center)
[09.1981 - 04.1988] 3AU,1C,1SU..AA60,CA60,SA60 |
17507-26050 |
— | ||
|
17430J
|
17430J
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1981 - 04.1988] 12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,2TGEU,3T#..AA6#,CA6#,KA67,RA63,SA60,TA6# |
90301-34207 |
US $9.92 |
||
|
17430S
|
17430S
17508-26100
Bracket, Exhaust Tail Pipe (For Rear)
[09.1981 - 12.1987] 18RGEU,3AU,4AGEU,1C,1SU,2TGEU,3T#..AA6#,CA60,RA63,SA60,TA61,63..CP,SED |
17508-26100 |
— | ||
|
17430V
|
17430V
90301-34207 Bolt Or Ring, Exhaust Pipe Front (For Center)[09.1981 - 04.1988] 12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,2TGEU,3T#..AA6#,CA6#,KA67,RA63,SA60,TA6# |
90301-34207 |
US $9.92 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[09.1981 - 04.1988] 3AU,1SU,2TGEU,3TEU..AA60,SA60,TA61,63 CTR OR RR |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[09.1981 - 04.1988] 3AU,1SU,2TGEU,3TEU..AA60,SA60,TA61,63 CTR OR RR |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06018 Gasket, Exhaust Pipe[09.1981 - 04.1988] 3AU,1SU,2TGEU,3TEU..AA60,SA60,TA61,63 FR |
90917-06018 |
US $6.26 |
||
| replacement | |||||
|
17451
|
17451
90917-06046 Gasket, Exhaust Pipe[09.1981 - 04.1988] 3AU,1SU,2TGEU,3TEU..AA60,SA60,TA61,63 FR |
90917-06046 |
from US $9.28 |
||
|
17516
|
17516
17516-41010 Retainer, Exhaust Pipe, No.2[09.1981 - 04.1988] 3AU,1C,1SU..AA60,CA6#,SA60 |
17516-41010 |
US $12.81 |
||
|
18435
|
18435
18407-25011 Protector, Catalytic Converter[09.1981 - 04.1988] 3AU,1SU..AA60,SA60 |
18407-25011 |
US $71.78 |
||
|
18448
|
18448
18448-26020 Bracket, Converter Protector, Center[09.1981 - 04.1988] 18RGEU,3AU,1SU,2TGEU,3TEU..AA60,RA63,SA60,TA61,63 |
18448-26020 |
US $9.92 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906059
|
9011906059
90119-06059 New Genuine Part |
90119-06059 |
US $1.60 |
||
| replacement | |||||
|
9011906059
|
9011906059
91621-B0625 New Genuine Part |
91621-B0625 |
US $0.96 |
||
|
9015950207
|
9015950207
90159-50207 New Genuine Part |
90159-50207 |
US $0.92 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9151161070
|
9151161070
91511-61070
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-61070 |
— | ||
| replacement | |||||
|
9151161070
|
9151161070
91512-61070 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91512-61070 |
US $4.16 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9338215012
|
9338215012
93382-15012 New Genuine Part |
93382-15012 |
US $1.12 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
