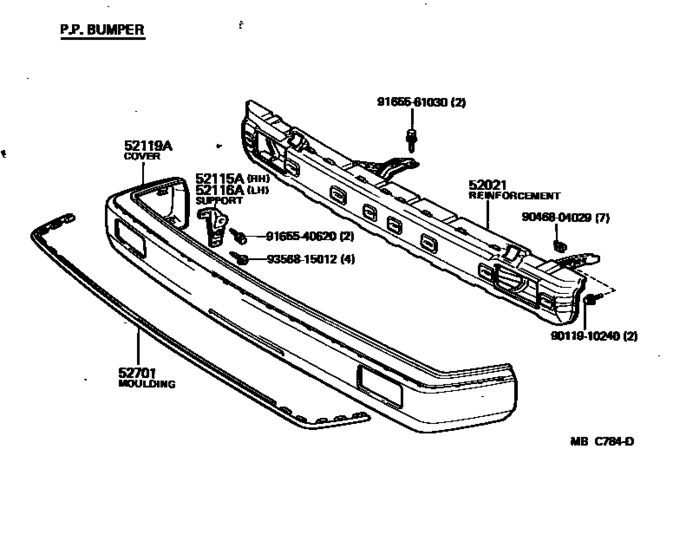

Front Bumper & Bumper Stay ([09.1981 - ] (8109- )DLX,SG,STD ; (8206-8507)SED..SE,ST) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-14060 Reinforcement Sub-Assy, Front Bumper[09.1981 - 04.1988] AA60,CA6#,KA67,SA60,TA67..DLX,SG,STD |
52021-14060 |
US $291.20 |
||
|
52021
|
52021
52021-14070 Reinforcement Sub-Assy, Front Bumper[05.1983 - 12.1987] AA60,SA60..SED..(DLX,SG) ROAD RUNNER,MY ROAD |
52021-14070 |
US $374.19 |
||
|
52115A
|
52115A
52115-14061 Support, Front Bumper Side, Rh[09.1981 - 04.1988] AA60,CA6#,KA67,SA60,TA67..DLX,SG,STD |
52115-14061 |
US $9.76 |
||
|
52115A
|
52115A
52115-14070 Support, Front Bumper Side, Rh[05.1983 - 04.1988] AA60,SA60..DLX,SG ROAD RUNNER,MY ROAD |
52115-14070 |
US $19.95 |
||
|
52116A
|
52116A
52116-14041
Support, Front Bumper Side, Lh
[09.1981 - 04.1988] AA60,CA6#,KA67,SA60,TA67..DLX,SG,STD |
52116-14041 |
— | ||
|
52116A
|
52116A
52116-14050 Support, Front Bumper Side, Lh[05.1983 - 04.1988] AA60,SA60..DLX,SG ROAD RUNNER,MY ROAD |
52116-14050 |
US $19.07 |
||
|
52119A
|
52119A
52119-14100 Cover, Front Bumper[05.1983 - 12.1987] AA60,SA60..SED..(DLX,SG) ROAD RUNNER,MY ROAD |
52119-14100 |
US $486.30 |
||
|
52119A
|
52119A
52119-14230 Cover, Front Bumper[09.1981 - 04.1988] AA60,CA6#,KA67,SA60,TA67..(SED,V)..(DLX,SG,STD) |
52119-14230 |
US $237.33 |
||
|
52701
|
52701
52711-14030 Moulding Sub-Assy, Front Bumper[09.1981 - 04.1988] AA60,CA67,KA67,TA67..DLX,STD |
52711-14030 |
US $39.60 |
||
|
9011910240
|
9011910240
90119-10240 New Genuine Part |
90119-10240 |
US $1.92 |
||
|
9046804029
|
9046804029
90468-04029 New Genuine Part |
90468-04029 |
US $1.92 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
|
9165561030
|
9165561030
91655-61030
Bolt(For Transaxle Case & Engine Setting)
|
91655-61030 |
— | ||
| replacement | |||||
|
9165561030
|
9165561030
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
