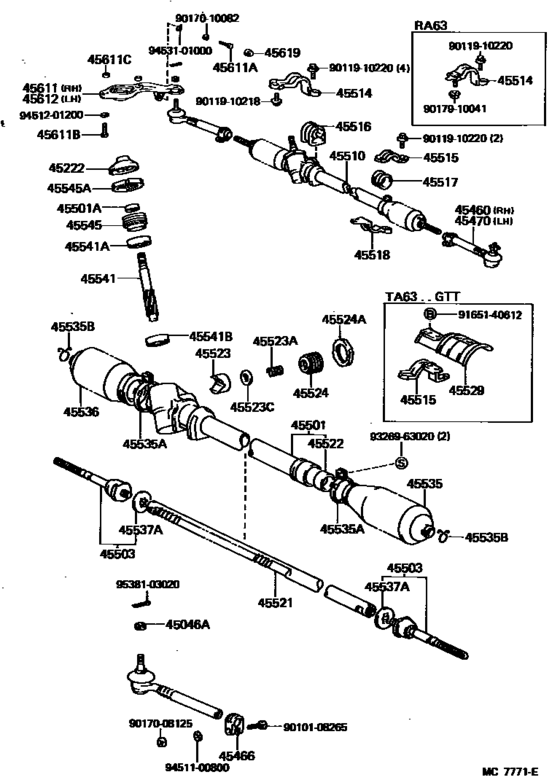

Front Steering Gear & Link ([09.1981 - ] (8109- )AA60..SED ; (8109- )AA60..CP..SG,S T ; (8109- )AA63,CA60,RA63,SA60, TA61,63 ; (8205- )AA60..CP..SE) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# |
90171-12028 |
from US $1.42 |
||
|
45222
|
45222
45222-22010
Cover, Steering Gear Dust
[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD); AA6#,SA60,TA63..CP,WG |
45222-22010 |
— | ||
|
45222
|
45222
45222-22030 Cover, Steering Gear Dust[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45222-22030 |
US $10.19 |
||
| replacement | |||||
|
45222
|
45222
45222-20010
Cover, Steering Gear Dust
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45222-20010 |
— | ||
|
45460
|
45460
45460-19155 Rod Assy, Tie, Rh[01.1984 - 12.1987] AA60..DLX MY ROAD,W/POWER STEERING |
45460-19155 |
US $82.99 |
||
|
45460
|
45460
45460-19165 Rod Assy, Tie, Rh[09.1981 - 05.1983] AA60,SA60,TA61..DLX,GT,SG,ST,STD |
45460-19165 |
US $82.99 |
||
|
45466
|
45466
45466-22010 Clamp, Tie Rod End[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# |
45466-22010 |
US $4.80 |
||
|
45470
|
45470
45460-19155 Rod Assy, Tie, Rh[01.1984 - 12.1987] AA60..DLX MY ROAD,W/POWER STEERING |
45460-19155 |
US $82.99 |
||
|
45470
|
45470
45460-19165 Rod Assy, Tie, Rh[09.1981 - 05.1983] AA60,SA60,TA61..DLX,GT,SG,ST,STD |
45460-19165 |
US $82.99 |
||
|
45501
|
45501
45501-14011 Housing Sub-Assy, Steering Rack[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45501-14011 |
US $171.81 |
||
| replacement | |||||
|
45501
|
45501
45501-14012 Housing Sub-Assy, Steering Rack[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45501-14012 |
US $171.81 |
||
|
45501A
|
45501A
90311-15001
Seal, Oil(For Steering Bevel Gear Housing)
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90311-15001 |
— | ||
| replacement | |||||
|
45501A
|
45501A
90311-15002 Seal, Oil(For Steering Bevel Gear Housing)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90311-15002 |
from US $2.06 |
||
|
45503
|
45503
45503-29015 End Sub-Assy, Steering Rack(For Power Steering)[09.1981 - 01.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45503-29015 |
US $93.18 |
||
| replacement | |||||
|
45503
|
45503
45503-29125 End Sub-Assy, Steering Rack(For Power Steering)[09.1981 - 01.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45503-29125 |
US $103.60 |
||
|
45503
|
45503
45503-29016 End Sub-Assy, Steering Rack(For Power Steering)[01.1983 - 05.1983] AA60..CP..SE; TA63;AA60,CA60,SA60,TA61..DLX,GT,SG,ST,STD |
45503-29016 |
US $91.73 |
||
| replacement | |||||
|
45503
|
45503
45503-29125 End Sub-Assy, Steering Rack(For Power Steering)[01.1983 - 05.1983] AA60..CP..SE; TA63;AA60,CA60,SA60,TA61..DLX,GT,SG,ST,STD |
45503-29125 |
US $103.60 |
||
|
45510
|
45510
45510-14010 Gear Assy, Steering[09.1981 - 05.1983] AA60,SA60,TA61..DLX,GT,SG,ST,STD |
45510-14010 |
US $748.38 |
||
|
45514
|
45514
45514-14012 Bracket, Steering Rack Housing, No.1[09.1981 - 04.1988] AA6#,CA60,SA60,TA61,63 |
45514-14012 |
US $14.27 |
||
|
45515
|
45515
45515-14010 Bracket, Steering Rack Housing, No.2[01.1984 - 12.1987] AA60..DLX MY ROAD,W/POWER STEERING |
45515-14010 |
US $15.43 |
||
|
45515
|
45515
45515-14040 Bracket, Steering Rack Housing, No.2[09.1981 - 05.1983] TA63..SE,ST; AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45515-14040 |
US $12.23 |
||
|
45516
|
45516
45516-24010
Grommet, Steering Rack Housing, No.1
[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63 |
45516-24010 |
— | ||
|
45517
|
45517
45517-14010 Grommet, Steering Rack Housing, No.2[01.1984 - 12.1987] AA60..DLX MY ROAD,W/POWER STEERING |
45517-14010 |
US $15.43 |
||
|
45517
|
45517
45517-14020
Grommet, Steering Rack Housing, No.2
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45517-14020 |
— | ||
|
45518
|
45518
45518-14010 Bracket, Steering Rack Housing, No.3[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45518-14010 |
US $11.65 |
||
|
45521
|
45521
45521-14011 Rack, Steering[09.1981 - 05.1983] AA60,SA60,TA61..DLX,GT,SG,ST,STD |
45521-14011 |
US $119.39 |
||
| replacements | |||||
|
45521
|
45521
45521-14012 Rack, Steering[09.1981 - 05.1983] AA60,SA60,TA61..DLX,GT,SG,ST,STD |
45521-14012 |
US $116.48 |
||
|
45521
|
45521
45522-22011
Bush, Steering Rack
[09.1981 - 05.1983] AA60,SA60,TA61..DLX,GT,SG,ST,STD |
45522-22011 |
— | ||
|
45522
|
45522
45522-22010
Bush, Steering Rack
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45522-22010 |
— | ||
| replacement | |||||
|
45522
|
45522
45522-22011
Bush, Steering Rack
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45522-22011 |
— | ||
|
45523
|
45523
45523-16011
Guide, Rack(For Steering Gear)
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45523-16011 |
— | ||
|
45523A
|
45523A
90501-23007 Spring(For Power Steering Rack Guide)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90501-23007 |
from US $1.49 |
||
|
45523C
|
45523C
90560-23003 Spacer(For Rack Guide)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90560-23003 |
US $8.01 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45524-16010 |
US $8.91 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-22010
Boot, Steering Rack, No.1
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45535-22010 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-22011
Boot, Steering Rack, No.1
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45535-22011 |
— | ||
|
45535
|
45535
45535-22011
Boot, Steering Rack, No.1
[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD); AA6#,SA60,TA63..CP,WG |
45535-22011 |
— | ||
|
45535A
|
45535A
90461-10273 Clamp(For Steering Rack Boot)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=41.5 |
90461-10273 |
from US $4.96 |
||
|
45535A
|
45535A
90461-10524 Clamp(For Steering Rack Boot)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=61.5 |
90461-10524 |
US $7.72 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90467-18003 |
from US $1.92 |
||
|
45536
|
45536
45536-14020
Boot, Steering Rack, No.2
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45536-14020 |
— | ||
|
45537A
|
45537A
90214-14003 Washer, Claw(For Power Steering Rack End)[09.1981 - 01.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90214-14003 |
US $2.91 |
||
|
45537A
|
45537A
90214-14005 Washer, Claw(For Power Steering Rack End)[01.1983 - 05.1983] AA60..CP..SE; TA63;AA60,CA60,SA60,TA61..DLX,GT,SG,ST,STD |
90214-14005 |
US $3.52 |
||
|
45541
|
45541
45541-22010 Pinion, Steering[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45541-22010 |
US $55.62 |
||
|
45541A
|
45541A
90363-15006
Bearing, Radial Ball(For Steering Pinion Upper)
[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90363-15006 |
— | ||
|
45541B
|
45541B
90363-15005 Bearing, Radial Ball(For Steering Pinion Lower)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90363-15005 |
US $30.28 |
||
|
45545
|
45545
45545-22010 Screw, Pinion Bearing Adjusting[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
45545-22010 |
US $35.82 |
||
|
45545A
|
45545A
90179-42001 Nut(For Pinion Bearing Adjusting Screw)[09.1981 - 05.1983] TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
90179-42001 |
US $7.72 |
||
|
45611
|
45611
45611-14030 Arm, Steering Knuckle, Rh[01.1984 - 12.1987] AA60..DLX MY ROAD,W/POWER STEERING |
45611-14030 |
US $68.87 |
||
|
45611
|
45611
45611-14040 Arm, Steering Knuckle, Rh[09.1981 - 04.1988] AA60,SA60..DLX,SG,ST,STD |
45611-14040 |
US $68.43 |
||
|
45611A
|
45611A
90106-10002
Bolt (For Front Knuckle Stopper)
[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63 L=31 |
90106-10002 |
— | ||
|
45611A
|
45611A
90106-10032 Bolt, Round Hexagon (For Steering Knuckle Stopper)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# L=34 |
90106-10032 |
US $2.72 |
||
|
45611B
|
45611B
90101-12295 Bolt, Hexagon(For Steering Knuckle To Shock Absorber)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# L=35 |
90101-12295 |
US $5.12 |
||
|
45611B
|
45611B
90101-12379
Bolt, Hexagon(For Steering Knuckle To Shock Absorber)
[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# L=39 |
90101-12379 |
— | ||
|
45611B
|
45611B
90101-12491 Bolt, Hexagon(For Steering Knuckle To Shock Absorber)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# L=42 |
90101-12491 |
US $2.61 |
||
|
45611C
|
45611C
90253-15016 Pin, Straight(For End Plate)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# |
90253-15016 |
from US $1.54 |
||
|
45612
|
45612
45612-14030 Arm, Steering Knuckle, Lh[01.1984 - 12.1987] AA60..DLX MY ROAD,W/POWER STEERING |
45612-14030 |
US $68.87 |
||
|
45612
|
45612
45612-14040 Arm, Steering Knuckle, Lh[09.1981 - 04.1988] AA60,SA60..DLX,SG,ST,STD |
45612-14040 |
US $68.43 |
||
|
45619
|
45619
45619-14020 Cover, Front Knuckle Stopper[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# |
45619-14020 |
from US $5.11 |
||
|
9010108265
|
9010108265
90101-08265 New Genuine Part |
90101-08265 |
US $7.04 |
||
|
9011910218
|
9011910218
90119-10218 New Genuine Part |
90119-10218 |
US $3.20 |
||
|
9011910220
|
9011910220
90119-10220 New Genuine Part |
90119-10220 |
US $1.89 |
||
| replacement | |||||
|
9011910220
|
9011910220
91642-81025 BOLT WWASHER |
91642-81025 |
from US $1.01 |
||
|
9017008125
|
9017008125
90170-08125 New Genuine Part |
90170-08125 |
US $5.12 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9017910041
|
9017910041
90179-10041 Nut(For Backing Plate To Rear Axle Housing Setting) |
90179-10041 |
US $2.08 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.76 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
