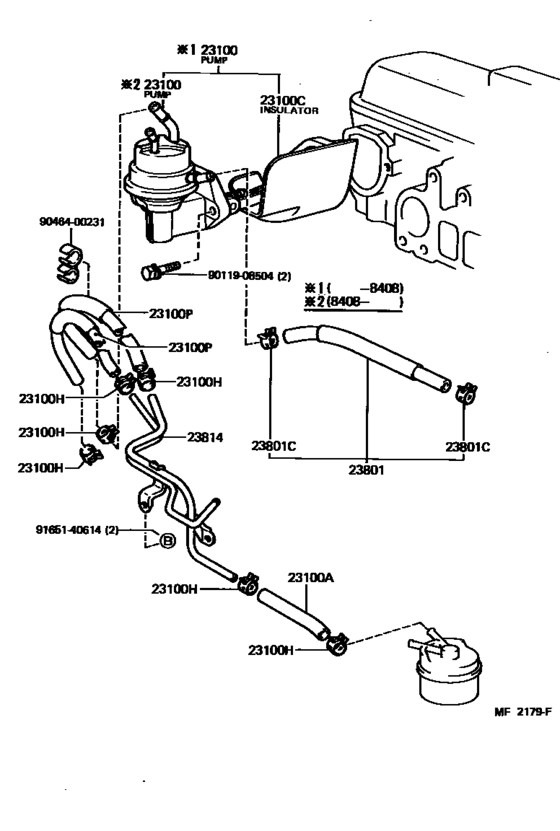

Fuel Pump & Pipe ([09.1981 - ] (8109- )3AU) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-15042
Pump Assy, Fuel
[08.1984 - 12.1987] 3AU..AA60 |
23100-15042 |
— | ||
|
23100
|
23100
23100-19145 Pump Assy, Fuel[09.1981 - 11.1983] 3AU..AA60 |
23100-19145 |
US $100.46 |
||
| replacements | |||||
|
23100
|
23100
23100-15042
Pump Assy, Fuel
[09.1981 - 11.1983] 3AU..AA60 |
23100-15042 |
— | ||
|
23100
|
23100
23915-15011
Insulator, Fuel Pump
[09.1981 - 11.1983] 3AU..AA60 |
23915-15011 |
— | ||
|
23100
|
23100
23100-19146 Pump Assy, Fuel[11.1983 - 08.1984] 3AU..AA60 |
23100-19146 |
US $123.76 |
||
| replacements | |||||
|
23100
|
23100
23915-15011
Insulator, Fuel Pump
[11.1983 - 08.1984] 3AU..AA60 |
23915-15011 |
— | ||
|
23100
|
23100
23100-15042
Pump Assy, Fuel
[11.1983 - 08.1984] 3AU..AA60 |
23100-15042 |
— | ||
|
23100A
|
23100A
95332-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[09.1981 - 06.1986] 3AU..AA60 *H,L=120 |
95332-06020 |
— | ||
| replacement | |||||
|
23100A
|
23100A
95337-06020 Hose, Differential Pressure Control[09.1981 - 06.1986] 3AU..AA60 *H,L=120 |
95337-06020 |
from US $9.12 |
||
|
23100A
|
23100A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[06.1986 - 12.1987] 3AU..AA60 *H,L=120 |
95333-06020 |
— | ||
| replacement | |||||
|
23100A
|
23100A
95337-06020 Hose, Differential Pressure Control[06.1986 - 12.1987] 3AU..AA60 *H,L=120 |
95337-06020 |
from US $9.12 |
||
|
23100C
|
23100C
23915-15010
Insulator, Fuel Pump
[09.1981 - 02.1985] 3AU..AA60 |
23915-15010 |
— | ||
| replacement | |||||
|
23100C
|
23100C
23915-15011
Insulator, Fuel Pump
[09.1981 - 02.1985] 3AU..AA60 |
23915-15011 |
— | ||
|
23100C
|
23100C
23915-15011
Insulator, Fuel Pump
[02.1985 - 12.1987] 3AU..AA60 |
23915-15011 |
— | ||
|
23100H
|
23100H
96132-30400
Clip Or Clamp(For Ventilation Hose)
[09.1981 - 12.1987] 3AU..AA60 RETURN |
96132-30400 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51000 Clip Or Clamp(For Ventilation Hose)[09.1981 - 12.1987] 3AU..AA60 RETURN |
96132-51000 |
from US $1.62 |
||
|
23100H
|
23100H
96132-30600
Clip(For Actuator Hose)
[09.1981 - 04.1988] 3AU..AA60 MAIN; 5KJ..KA67 MAIN; 1SU..SA60 MAIN |
96132-30600 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51100 Clip (For Hose)[09.1981 - 04.1988] 3AU..AA60 MAIN; 5KJ..KA67 MAIN; 1SU..SA60 MAIN |
96132-51100 |
from US $1.74 |
||
|
23100P
|
23100P
23271-15040 Hose(For Fuel Pump To Fuel Tube)[11.1981 - 12.1987] 3AU..AA60 MAIN |
23271-15040 |
US $13.69 |
||
|
23100P
|
23100P
23271-15050 Hose(For Fuel Pump To Fuel Tube)[11.1981 - 12.1987] 3AU..AA60 RETURN |
23271-15050 |
US $12.38 |
||
|
23100P
|
23100P
95332-04040 Hose(For Fuel Pump To Fuel Tube)[09.1981 - 11.1981] 3AU..AA60 *H,L=340,RETURN |
95332-04040 |
US $9.03 |
||
| replacement | |||||
|
23100P
|
23100P
95333-04040 Hose(For Fuel Pump To Fuel Tube)[09.1981 - 11.1981] 3AU..AA60 *H,L=340,RETURN |
95333-04040 |
US $8.37 |
||
|
23100P
|
23100P
95332-06040
Hose(For Valve To Timing Gear)
[09.1981 - 11.1981] 3AU..AA60 *H,L=360,MAIN |
95332-06040 |
— | ||
| replacement | |||||
|
23100P
|
23100P
95333-06040 Hose[09.1981 - 11.1981] 3AU..AA60 *H,L=360,MAIN |
95333-06040 |
from US $11.68 |
||
|
23801
|
23801
23271-15010
Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
[09.1981 - 12.1987] 3AU..AA60 |
23271-15010 |
— | ||
|
23801C
|
23801C
96132-30600
Clip(For Actuator Hose)
[09.1981 - 04.1988] 3AU..AA60; 5KJ..KA67; 1SU..SA60; 12TJ..TA67 |
96132-30600 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96132-51100 Clip (For Hose)[09.1981 - 04.1988] 3AU..AA60; 5KJ..KA67; 1SU..SA60; 12TJ..TA67 |
96132-51100 |
from US $1.74 |
||
|
23814
|
23814
23814-15010
Pipe, Fuel Delivery
[09.1981 - 05.1983] 3AU..AA60 |
23814-15010 |
— | ||
|
23814
|
23814
23814-15011 Pipe, Fuel Delivery[05.1983 - 12.1987] 3AU..AA60 |
23814-15011 |
US $40.91 |
||
|
9011908504
|
9011908504
90119-08504
Bolt(For Clutch Release Cylinder Setting)
|
90119-08504 |
— | ||
| replacement | |||||
|
9011908504
|
9011908504
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9046400231
|
9046400231
90464-00231 Clamp, Fuel Pipe(Hose), No.1 |
90464-00231 |
US $3.32 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
