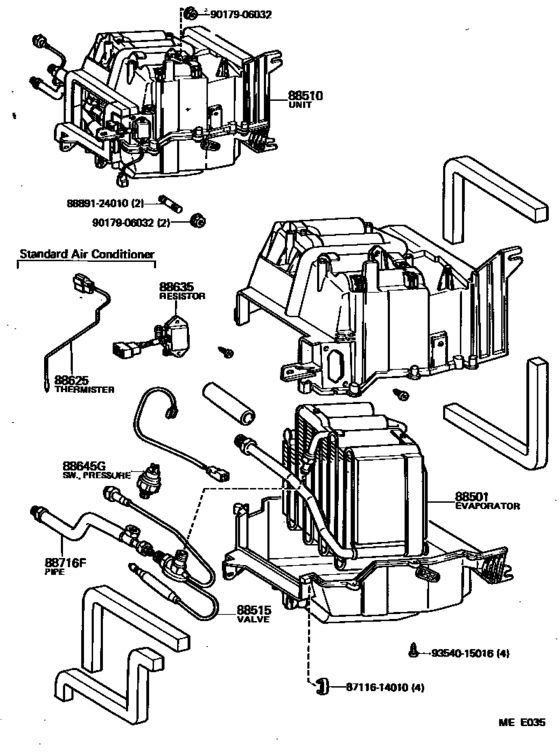

Heating & Air Conditioning - Cooler Unit ([09.1981 - 04.1988] (8109-8804)) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-14180
Evaporator Sub-Assy, Cooler, No.1
[09.1981 - 08.1982] AA60,CA6#,RA63,SA60,TA6# |
88501-14180 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-24022
Evaporator Sub-Assy, Cooler, No.1
[09.1981 - 08.1982] AA60,CA6#,RA63,SA60,TA6# |
88501-24022 |
— | ||
|
88501
|
88501
88501-24020
Evaporator Sub-Assy, Cooler, No.1
[08.1982 - 12.1982] AA60,CA6#,RA63,SA60,TA6# |
88501-24020 |
— | ||
|
88501
|
88501
88501-24021
Evaporator Sub-Assy, Cooler, No.1
[12.1982 - 05.1983] AA60,CA6#,SA60,TA6# |
88501-24021 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-24022
Evaporator Sub-Assy, Cooler, No.1
[12.1982 - 05.1983] AA60,CA6#,SA60,TA6# |
88501-24022 |
— | ||
|
88510
|
88510
88510-14320
Unit Assy, Cooler
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6# |
88510-14320 |
— | ||
|
88510
|
88510
88510-24020
Unit Assy, Cooler
[05.1983 - 04.1988] AA6#,CA6#,KA67,SA60,TA63 |
88510-24020 |
— | ||
|
88515
|
88515
88515-16030
Valve, Cooler Expansion
[12.1982 - 05.1983] AA60,CA6#,SA60,TA6# |
88515-16030 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[12.1982 - 05.1983] AA60,CA6#,SA60,TA6# |
88515-16031 |
US $109.52 |
||
|
88515
|
88515
88515-20040 Valve, Cooler Expansion[09.1981 - 12.1982] AA60,CA6#,RA63,SA60,TA6# |
88515-20040 |
US $119.39 |
||
| replacement | |||||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[09.1981 - 12.1982] AA60,CA6#,RA63,SA60,TA6# |
88515-16031 |
US $109.52 |
||
|
88625
|
88625
88625-90A00
Thermistor, Cooler, No.1
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6# |
88625-90A00 |
— | ||
| replacement | |||||
|
88625
|
88625
88625-12070 Thermistor, Cooler, No.1[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6# |
88625-12070 |
US $7.69 |
||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# |
88645-30250 |
— | ||
|
88716F
|
88716F
88716-24010
Pipe, Cooler Refrigerant Liquid, F
[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# |
88716-24010 |
— | ||
|
8711614010
|
8711614010
87116-14010
Spring, Heater Case Fastening
|
87116-14010 |
— | ||
|
8889124010
|
8889124010
88891-24010
Packing (for Cooler)
|
88891-24010 |
— | ||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
||
