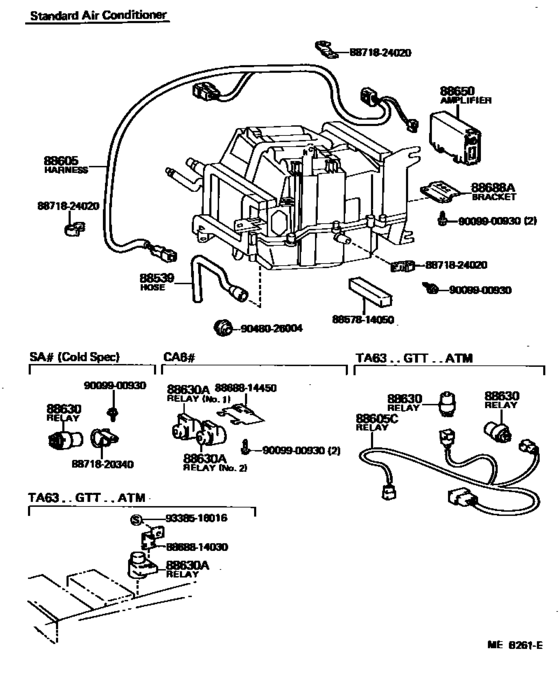

Heating & Air Conditioning - Cooler Unit ([09.1981 - 04.1988] (8109-8804)) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88539
|
88539
88539-24010
Hose, Cooler Unit Drain, No.1
[09.1981 - 04.1988] AA60,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
88539-24010 |
— | ||
|
88605
|
88605
88605-14480
Harness Sub-Assy, Cooler Wiring, No.1
[09.1981 - 04.1988] AA60,KA67,TA67 |
88605-14480 |
— | ||
|
88650
|
88650
88650-14140
Amplifier Assy, Cooler Stabilizer
[09.1981 - 12.1981] AA60,SA60,TA67 |
88650-14140 |
— | ||
|
88688A
|
88688A
88688-14320
Bracket, Cooler Stabilizer Amplifier
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6# |
88688-14320 |
— | ||
|
8857814050
|
8857814050
88578-14050
Packing, Cooler Stabilizer Amplifier
|
88578-14050 |
— | ||
|
8868814030
|
8868814030
88688-14030
Bracket, Cooler Diaphragm
|
88688-14030 |
— | ||
|
8868814450
|
8868814450
88688-14450
Bracket, Cooler Relay
|
88688-14450 |
— | ||
|
8871820340
|
8871820340
88718-20340
Clamp (For Cooler Relay)
|
88718-20340 |
— | ||
|
8871824020
|
8871824020
88718-24020
Clamp (For Cooler Wiring Harness), No.1
|
88718-24020 |
— | ||
|
9000900930
|
9000900930
90009-00930
New Genuine Part
|
90009-00930 |
— | ||
|
9009900930
|
9009900930
90099-00930
New Genuine Part
|
90099-00930 |
— | ||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.40 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.28 |
