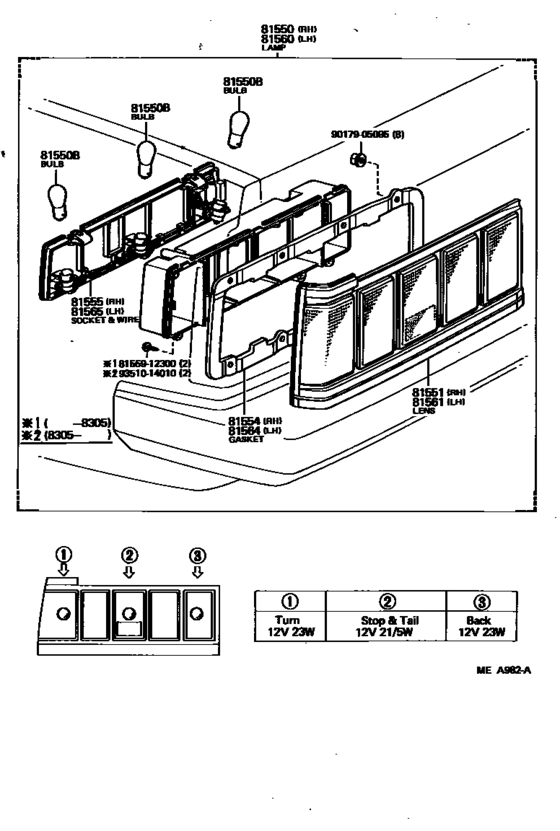

Rear Combination Lamp ([09.1981 - 12.1987] (8109-8712)SED) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-14551 Lamp Assy, Rear Combination, Rh[08.1986 - 12.1987] AA60,SA60..SED |
81550-14551 |
US $426.61 |
||
|
81550
|
81550
81550-80108 Lamp Assy, Rear Combination, Rh[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81550-80108 |
US $380.02 |
||
| replacement | |||||
|
81550
|
81550
81550-14550 Lamp Assy, Rear Combination, Rh[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81550-14550 |
US $404.77 |
||
|
81550
|
81550
81550-80175 Lamp Assy, Rear Combination, Rh[05.1983 - 08.1986] AA60,CA60,SA60..SED..(DLX,SE,SG,STD) |
81550-80175 |
US $435.34 |
||
| replacement | |||||
|
81550
|
81550
81550-14551 Lamp Assy, Rear Combination, Rh[05.1983 - 08.1986] AA60,CA60,SA60..SED..(DLX,SE,SG,STD) |
81550-14551 |
US $426.61 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-14550 Lens, Rear Combination Lamp, Rh[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81551-14550 |
US $254.80 |
||
|
81551
|
81551
81551-14551 Lens, Rear Combination Lamp, Rh[05.1983 - 12.1987] AA60,CA60,SA60..SED..(DLX,SE,SG,STD) |
81551-14551 |
US $256.26 |
||
|
81554
|
81554
81554-14550
Gasket, Rear Combination Lamp Body, Rh
[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81554-14550 |
— | ||
|
81554
|
81554
81554-14551
Gasket, Rear Combination Lamp Body, Rh
[05.1983 - 12.1987] AA6#,CA60,SA60,TA63..SED |
81554-14551 |
— | ||
|
81555
|
81555
81555-14550
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81555-14550 |
— | ||
|
81555
|
81555
81555-14551 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1983 - 12.1987] AA6#,CA60,SA60,TA63..SED |
81555-14551 |
US $62.03 |
||
|
81560
|
81560
81560-14551 Lamp Assy, Rear Combination, Lh[08.1986 - 12.1987] AA60,SA60..SED |
81560-14551 |
US $426.61 |
||
|
81560
|
81560
81560-80112 Lamp Assy, Rear Combination, Lh[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81560-80112 |
US $380.02 |
||
| replacement | |||||
|
81560
|
81560
81560-14550 Lamp Assy, Rear Combination, Lh[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81560-14550 |
US $404.77 |
||
|
81560
|
81560
81560-80180 Lamp Assy, Rear Combination, Lh[05.1983 - 08.1986] AA60,CA60,SA60..SED..(DLX,SE,SG,STD) |
81560-80180 |
US $435.34 |
||
| replacement | |||||
|
81560
|
81560
81560-14551 Lamp Assy, Rear Combination, Lh[05.1983 - 08.1986] AA60,CA60,SA60..SED..(DLX,SE,SG,STD) |
81560-14551 |
US $426.61 |
||
|
81561
|
81561
81561-14550 Lens, Rear Combination Lamp, Lh[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81561-14550 |
US $254.80 |
||
|
81561
|
81561
81561-14551 Lens, Rear Combination Lamp, Lh[05.1983 - 12.1987] AA60,CA60,SA60..SED..(DLX,SE,SG,STD) |
81561-14551 |
US $256.26 |
||
|
81564
|
81564
81564-14550
Gasket, Rear Combination Lamp Body, Lh
[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81564-14550 |
— | ||
|
81564
|
81564
81564-14551
Gasket, Rear Combination Lamp Body, Lh
[05.1983 - 12.1987] AA6#,CA60,SA60,TA63..SED |
81564-14551 |
— | ||
|
81565
|
81565
81565-14550
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SE,SG) |
81565-14550 |
— | ||
|
81565
|
81565
81565-14551 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[05.1983 - 12.1987] AA6#,CA60,SA60,TA63..SED |
81565-14551 |
US $62.03 |
||
|
8155912300
|
8155912300
81559-12300
Bracket,foglamp,rh No.2
|
81559-12300 |
— | ||
| replacement | |||||
|
8155912300
|
8155912300
81279-91D01
Bracket,foglamp,rh No.2
|
81279-91D01 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
|
9351014010
|
9351014010
93510-14010 New Genuine Part |
93510-14010 |
US $1.31 |
||
