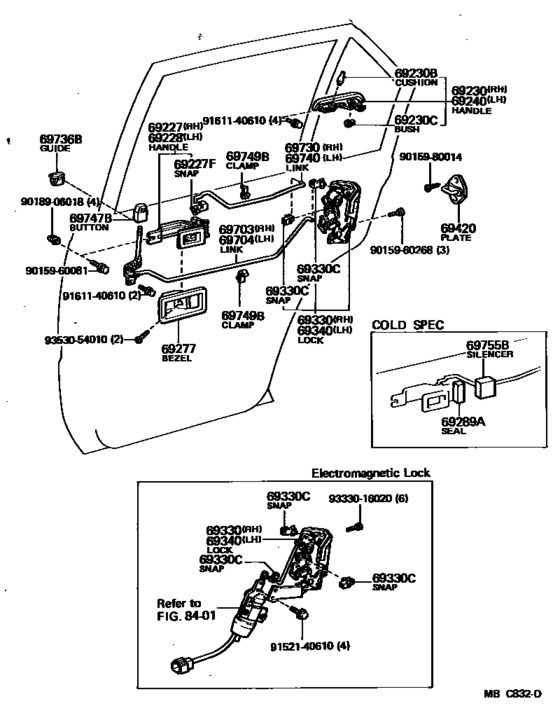

Rear Door Lock & Handle ([09.1981 - ] (8109- )SED,V,WG) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69227
|
69227
69205-14040-01 Handle Sub-Assy, Front Door Inside, Rh[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V BLACK,BLACK,TRIM2# |
69205-14040-01 |
US $23.73 |
||
|
69227
|
69227
69205-14040-04 Handle Sub-Assy, Front Door Inside, Rh[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69205-14040-04 |
US $23.73 |
||
|
69227
|
69227
69205-14040-06 Handle Sub-Assy, Front Door Inside, Rh[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..(SED,V,WG)..(DLX,GT,SE,SG,ST) DARK BROWN,BROWN,TRIM4# |
69205-14040-06 |
US $23.73 |
||
|
69227
|
69227
69205-14041-01 Handle Sub-Assy, Front Door Inside, Rh[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG BLACK,BLACK,TRIM2# |
69205-14041-01 |
US $23.73 |
||
|
69227
|
69227
69205-14041-04 Handle Sub-Assy, Front Door Inside, Rh[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..(SED,WG)..(DLX,GT,GTT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69205-14041-04 |
US $28.97 |
||
|
69227
|
69227
69205-14041-06
Handle Sub-Assy, Front Door Inside, Rh
[05.1983 - 05.1984] AA6#,CA60,SA60,TA63..(SED,WG)..(DLX,GT,GTT,SE,SG,ST) DARK BROWN,BROWN,TRIM4# |
69205-14041-06 |
— | ||
|
69227F
|
69227F
69759-14050 Snap(For Rear Door Inside Handle)[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG RH |
69759-14050 |
from US $2.24 |
||
|
69227F
|
69227F
69759-20060 Snap(For Rear Door Inside Handle)[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG RH |
69759-20060 |
US $3.84 |
||
|
69227F
|
69227F
69759-20070 Snap(For Rear Door Inside Handle)[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG LH |
69759-20070 |
from US $1.89 |
||
|
69227F
|
69227F
69759-24070 Snap(For Rear Door Inside Handle)[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG LH |
69759-24070 |
US $2.88 |
||
|
69228
|
69228
69206-14040-01
Handle Sub-Assy, Front Door Inside, Lh
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V BLACK,BLACK,TRIM2# |
69206-14040-01 |
— | ||
|
69228
|
69228
69206-14040-04 Handle Sub-Assy, Front Door Inside, Lh[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69206-14040-04 |
US $23.73 |
||
|
69228
|
69228
69206-14040-06 Handle Sub-Assy, Front Door Inside, Lh[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..(SED,V,WG)..(DLX,GT,SE,SG,ST) DARK BROWN,BROWN,TRIM4# |
69206-14040-06 |
US $23.73 |
||
|
69228
|
69228
69206-14041-01 Handle Sub-Assy, Front Door Inside, Lh[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG BLACK,BLACK,TRIM2# |
69206-14041-01 |
US $23.73 |
||
|
69228
|
69228
69206-14041-04 Handle Sub-Assy, Front Door Inside, Lh[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..(SED,WG)..(DLX,GT,GTT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69206-14041-04 |
US $28.97 |
||
|
69228
|
69228
69206-14041-06
Handle Sub-Assy, Front Door Inside, Lh
[05.1983 - 05.1984] AA6#,CA60,SA60,TA63..(SED,WG)..(DLX,GT,GTT,SE,SG,ST) DARK BROWN,BROWN,TRIM4# |
69206-14041-06 |
— | ||
|
69230
|
69230
69230-14030 Handle Assy, Rear Door Outside, Rh[09.1981 - 05.1983] AA60,CA6#,SA60,TA67..(SED,V)..(DLX,SE,SG,STD) |
69230-14030 |
US $41.79 |
||
|
69230B
|
69230B
90541-03021 Cushion(For Front Door Outside Handle)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
90541-03021 |
US $4.96 |
||
|
69230C
|
69230C
90386-06030 Bush(For Rear Door Outside Handle)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG |
90386-06030 |
US $2.77 |
||
|
69240
|
69240
69240-14030 Handle Assy, Rear Door Outside, Lh[09.1981 - 05.1983] AA60,CA6#,SA60,TA67..(SED,V)..(DLX,SE,SG,STD) |
69240-14030 |
US $41.79 |
||
|
69277
|
69277
69277-16040-01
Bezel, Back Door Inside Handle
[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V BLACK,BLACK,TRIM2# |
69277-16040-01 |
— | ||
| replacement | |||||
|
69277
|
69277
69277-16040-23 Bezel, Door Inside Handle[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V BLACK,BLACK,TRIM2# |
69277-16040-23 |
from US $10.56 |
||
|
69277
|
69277
69277-16040-06
Bezel, Back Door Inside Handle
[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..(SED,V,WG)..(DLX,GT,SE,SG,ST) DARK BROWN,BROWN,TRIM4# |
69277-16040-06 |
— | ||
|
69277
|
69277
69277-16040-14 Bezel, Front Door Inside Handle[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69277-16040-14 |
US $9.03 |
||
| replacement | |||||
|
69277
|
69277
69277-16040-23 Bezel, Door Inside Handle[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69277-16040-23 |
from US $10.56 |
||
|
69289A
|
69289A
69289-12010 Seal, Door Inside Handle No.1(For Front Door)[01.1983 - 04.1988] AA6#,CA6#,KA67,SA60,TA6#..SED,V,WG COLD SPEC |
69289-12010 |
US $2.62 |
||
|
69330
|
69330
69330-14050
Lock Assy, Rear Door, Rh
[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..SED,WG |
69330-14050 |
— | ||
|
69330
|
69330
69330-14051 Lock Assy, Rear Door, Rh[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG |
69330-14051 |
US $110.66 |
||
|
69330C
|
69330C
69759-20080 Snap, Door Lock Control Link[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG RH,OPEN LINK;LH,LOCKING LINK |
69759-20080 |
US $4.48 |
||
|
69330C
|
69330C
69759-20090 Snap(For Rear Door Lock)[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG LH,OPEN LINK;RH,LOCKING LINK |
69759-20090 |
US $4.48 |
||
|
69330C
|
69330C
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG RH,OPEN LINK;LH,LOCKING LINK |
69759-24050 |
from US $3.84 |
||
|
69330C
|
69330C
69759-24060 Snap(For Rear Door Lock)[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG LH,OPEN LINK;RH,LOCKING LINK |
69759-24060 |
from US $4.64 |
||
|
69340
|
69340
69340-14050
Lock Assy, Rear Door, Lh
[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..SED,WG |
69340-14050 |
— | ||
|
69340
|
69340
69340-14051 Lock Assy, Rear Door, Lh[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG |
69340-14051 |
US $110.66 |
||
|
69420
|
69420
69410-12050
Plate Assy, Front Door Lock Striker
[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG |
69410-12050 |
— | ||
|
69420
|
69420
69410-14040 Plate Assy, Front Door Lock Striker[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
69410-14040 |
US $19.66 |
||
|
69703
|
69703
69770-14020
Link Sub-Assy, Rear Door Locking Control, Rh
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
69770-14020 |
— | ||
|
69703
|
69703
69770-14021 Link Sub-Assy, Rear Door Locking Control, Rh[05.1983 - 04.1988] CA67,KA67; AA6#,CA60,SA60,TA63..SED,WG |
69770-14021 |
US $17.33 |
||
|
69704
|
69704
69780-14020
Link Sub-Assy, Rear Door Locking Control, Lh
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
69780-14020 |
— | ||
|
69704
|
69704
69780-14021 Link Sub-Assy, Rear Door Locking Control, Lh[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG |
69780-14021 |
US $17.33 |
||
|
69730
|
69730
69713-14020
Link Assy, Rear Door Open Control, Rh
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
69713-14020 |
— | ||
|
69730
|
69730
69713-14021 Link Assy, Rear Door Open Control, Rh[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG |
69713-14021 |
US $8.74 |
||
|
69736B
|
69736B
69736-12030
Guide, Front Door Lock Link
[08.1984 - 04.1988] CA67,KA67..SG; AA6#,SA60,TA63..SED..(DLX,GT,GTT,SG) |
69736-12030 |
— | ||
|
69736B
|
69736B
69736-22021
Guide, Front Door Lock Link
[09.1981 - 08.1984] CA67,KA67,TA67..SG; AA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,GTT,SE,SG,ST) |
69736-22021 |
— | ||
|
69740
|
69740
69714-14020
Link Assy, Rear Door Open Control, Lh
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
69714-14020 |
— | ||
|
69740
|
69740
69714-14021 Link Assy, Rear Door Open Control, Lh[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG |
69714-14021 |
US $8.74 |
||
|
69747B
|
69747B
69741-20020-01
Knob, Front Door Lock Control
[09.1981 - 02.1982] AA60,RA63,SA60,TA6#..SED,V BLACK,BLACK,TRIM2# |
69741-20020-01 |
— | ||
| replacement | |||||
|
69747B
|
69747B
69741-32010-20 Knob, Front Door Lock Control[09.1981 - 02.1982] AA60,RA63,SA60,TA6#..SED,V BLACK,BLACK,TRIM2# |
69741-32010-20 |
US $4.89 |
||
|
69747B
|
69747B
69741-20020-14 Button, Door Locking(For Front Door)[09.1981 - 02.1982] AA60,RA63,SA60,TA61,63..SED..(DLX,GT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69741-20020-14 |
US $4.51 |
||
| replacement | |||||
|
69747B
|
69747B
69741-32010-20 Knob, Front Door Lock Control[09.1981 - 02.1982] AA60,RA63,SA60,TA61,63..SED..(DLX,GT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69741-32010-20 |
US $4.89 |
||
|
69747B
|
69747B
69741-20020-16
Button, Door Locking(For Front Door)
[09.1981 - 02.1982] AA60,RA63,SA60,TA6#..(SED,V)..(DLX,GT,SE,SG,ST) DARK BROWN,BROWN,TRIM4# |
69741-20020-16 |
— | ||
| replacement | |||||
|
69747B
|
69747B
69741-12040-B1 Knob, Front Door Lock Control (GRAY)[09.1981 - 02.1982] AA60,RA63,SA60,TA6#..(SED,V)..(DLX,GT,SE,SG,ST) DARK BROWN,BROWN,TRIM4# |
69741-12040-B1 |
from US $5.64 |
||
|
69747B
|
69747B
69741-32010-01 Knob, Front Door Lock Control[02.1982 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V BLACK,BLACK,TRIM2# |
69741-32010-01 |
US $4.51 |
||
| replacement | |||||
|
69747B
|
69747B
69741-32010-20 Knob, Front Door Lock Control[02.1982 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V BLACK,BLACK,TRIM2# |
69741-32010-20 |
US $4.89 |
||
|
69747B
|
69747B
69741-32010-04 Button, Door Locking(For Front Door)[02.1982 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69741-32010-04 |
US $4.51 |
||
| replacement | |||||
|
69747B
|
69747B
69741-32010-20 Knob, Front Door Lock Control[02.1982 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63..(SED,WG)..(DLX,GT,SE,SG,ST) BLUE,BLUE,TRIM8# |
69741-32010-20 |
US $4.89 |
||
|
69747B
|
69747B
69741-32010-16 Button, Door Locking(For Front Door)[02.1982 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..(SED,V,WG)..(DLX,GT,SE,SG,ST) DARK BROWN,BROWN,TRIM4# |
69741-32010-16 |
US $4.51 |
||
| replacement | |||||
|
69747B
|
69747B
69741-90K00-C0 Knob, Front Door Lock Control[02.1982 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..(SED,V,WG)..(DLX,GT,SE,SG,ST) DARK BROWN,BROWN,TRIM4# |
69741-90K00-C0 |
US $3.52 |
||
|
69749B
|
69749B
69749-12010 Clamp(For Hood Lock Control Cable)[09.1981 - 07.1982] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
69749-12010 |
from US $1.93 |
||
|
69749B
|
69749B
69749-20010 Clamp, Front Door Lock Link[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED,WG |
69749-20010 |
from US $2.88 |
||
|
69749B
|
69749B
69749-30020 Clamp, No.1(For Back Door Lock Control Cable)[07.1982 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V,WG |
69749-30020 |
US $4.48 |
||
|
69755B
|
69755B
69759-10040 Silencer, Front Door Lock Link[01.1983 - 04.1988] AA6#,CA6#,KA67,SA60,TA6#..SED,V,WG |
69759-10040 |
US $2.62 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9015960268
|
9015960268
90159-60268 Screw |
90159-60268 |
US $2.08 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $1.92 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9152140610
|
9152140610
91521-40610
New Genuine Part
|
91521-40610 |
— | ||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9333016020
|
9333016020
93330-16020
New Genuine Part
|
93330-16020 |
— | ||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.80 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
