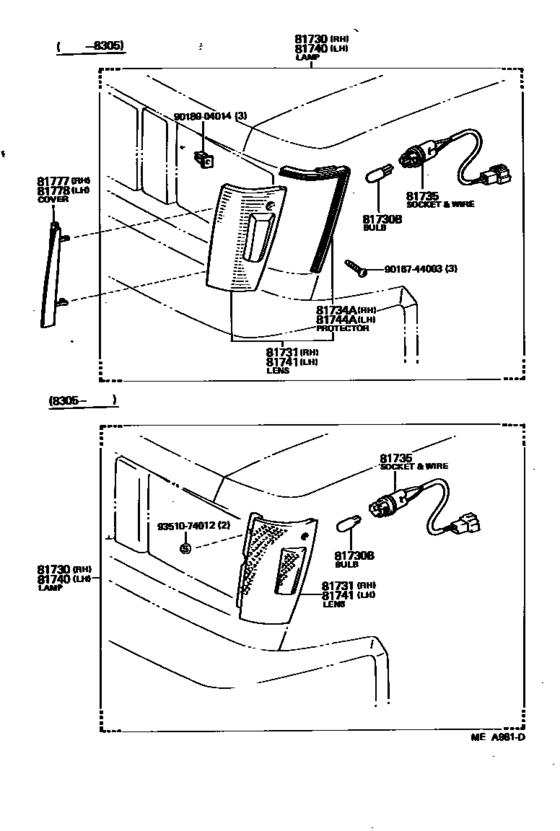

Side Turn Signal Lamp & Outer Mirror Lamp ([09.1981 - 12.1987] (8109-8712)SED) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81730
|
81730
81730-19335
Lamp Assy, Side Turn Signal, Rh
[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..SED |
81730-19335 |
— | ||
|
81730
|
81730
81730-19336
Lamp Assy, Side Turn Signal, Rh
[05.1983 - 12.1987] AA6#,CA60,SA60,TA63..SED |
81730-19336 |
— | ||
|
81730B
|
81730B
99132-12050 Bulb (12V 5W)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V １２Ｖ ５Ｗ,12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81730B
|
81730B
90080-81053 Bulb(For Clearance Lamp)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V １２Ｖ ５Ｗ,12V 5W |
90080-81053 |
US $2.75 |
||
|
81731
|
81731
81731-14120
Lens, Side Turn Signal Lamp, Rh
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V |
81731-14120 |
— | ||
|
81731
|
81731
81731-14121
Lens, Side Turn Signal Lamp, Rh
[05.1983 - 12.1987] AA6#,CA60,SA60,TA63..SED |
81731-14121 |
— | ||
|
81734A
|
81734A
81734-14120
Protector, Side Turn Signal Lamp, Rh
[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..SED |
81734-14120 |
— | ||
|
81735
|
81735
81735-14120 Socket And Wire, Side Turn Signal Lamp[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V |
81735-14120 |
US $13.54 |
||
| replacement | |||||
|
81735
|
81735
81735-20170 Socket And Wire, Side Turn Signal Lamp[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V |
81735-20170 |
US $13.69 |
||
|
81735
|
81735
81735-14121 Socket And Wire, Side Turn Signal Lamp[05.1983 - 12.1987] AA6#,CA60,SA60,TA63..SED |
81735-14121 |
US $13.40 |
||
|
81740
|
81740
81740-19295
Lamp Assy, Side Turn Signal, Lh
[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..SED |
81740-19295 |
— | ||
|
81740
|
81740
81740-19296 Lamp Assy, Side Turn Signal, Lh[05.1983 - 12.1987] AA6#,CA60,SA60,TA63..SED |
81740-19296 |
US $51.83 |
||
|
81741
|
81741
81741-14120
Lens, Side Turn Signal Lamp, Lh
[09.1981 - 05.1983] AA60,CA6#,RA63,SA60,TA6#..SED,V |
81741-14120 |
— | ||
|
81741
|
81741
81741-14121 Lens, Side Turn Signal Lamp, Lh[05.1983 - 12.1987] AA6#,CA60,SA60,TA63..SED |
81741-14121 |
US $31.89 |
||
|
81744A
|
81744A
81744-14120 Protector, Side Turn Signal Lamp, Lh[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..SED |
81744-14120 |
US $8.74 |
||
|
81777
|
81777
81777-14010
Cover, Side Turn Signal Lamp, Rh
[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..SED |
81777-14010 |
— | ||
|
81778
|
81778
81778-14010
Cover, Side Turn Signal Lamp, Lh
[09.1981 - 05.1983] AA60,CA60,RA63,SA60,TA61,63..SED |
81778-14010 |
— | ||
|
9016744003
|
9016744003
90167-44003
New Genuine Part
|
90167-44003 |
— | ||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $1.03 |
||
|
9351074012
|
9351074012
93510-74012 New Genuine Part |
93510-74012 |
US $1.75 |
||
