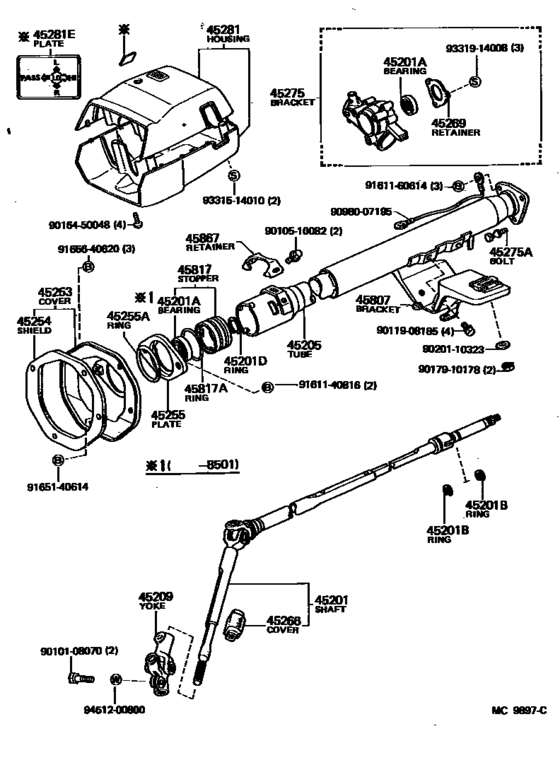

Steering Column & Shaft ([09.1981 - ] (8109- )AA60..DLX,SG,STD) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45201
|
45201
45210-14010 Shaft Sub-Assy, Steering Main[09.1981 - 01.1982] AA60..DLX,SG,STD |
45210-14010 |
US $286.83 |
||
| replacement | |||||
|
45201
|
45201
45210-14H00 Shaft Sub-Assy, Steering Main[09.1981 - 01.1982] AA60..DLX,SG,STD |
45210-14H00 |
US $257.71 |
||
|
45201
|
45201
45210-14020 Shaft Sub-Assy, Steering Main[01.1982 - 05.1983] AA60..DLX,SG,STD |
45210-14020 |
US $286.83 |
||
| replacement | |||||
|
45201
|
45201
45210-14H00 Shaft Sub-Assy, Steering Main[01.1982 - 05.1983] AA60..DLX,SG,STD |
45210-14H00 |
US $257.71 |
||
|
45201
|
45201
45210-14021 Shaft Sub-Assy, Steering Main[05.1983 - 12.1987] AA60..DLX,SG,STD |
45210-14021 |
US $356.72 |
||
|
45201
|
45201
45210-20130 Shaft Sub-Assy, Steering Main[01.1984 - 12.1987] AA60..DLX MY ROAD,W/PS |
45210-20130 |
US $393.12 |
||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[09.1981 - 04.1988] AA60,CA67,KA67,TA67..DLX,SG,STD |
90363-18038 |
US $10.56 |
||
|
45201A
|
45201A
90363-30007 Bearing(For Steering Main Shaft)[09.1981 - 01.1985] AA6#,CA60,RA63,SA60,TA61,63 LWR |
90363-30007 |
US $28.83 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ＝１．２０,T=1.2 |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17196 Ring, Shaft Snap(For Steering Main Shaft)[09.1981 - 04.1988] AA60,CA67,KA67,SA60,TA67..DLX,SG,STD 厚さ＝１．３５−１．４５,T=1.4 |
90520-17196 |
US $2.97 |
||
|
45201D
|
45201D
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63 |
96152-00300 |
US $0.70 |
||
|
45205
|
45205
45870-14100 Tube Sub-Assy, Steering Column[09.1981 - 12.1987] AA60..DLX,SG,STD |
45870-14100 |
US $160.16 |
||
|
45209
|
45209
45209-14020 Yoke Sub-Assy, Steering Sliding[01.1984 - 12.1987] AA60..DLX MY ROAD,W/POWER STEERING |
45209-14020 |
US $155.52 |
||
|
45209
|
45209
45209-14030
Yoke Sub-Assy, Steering Sliding
[09.1981 - 05.1983] AA60,CA60,SA60..DLX,SG,ST,STD |
45209-14030 |
— | ||
|
45209
|
45209
45209-32010
Yoke Sub-Assy, Steering Sliding
[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD); AA6#,SA60,TA63..CP,WG |
45209-32010 |
— | ||
| replacement | |||||
|
45209
|
45209
45209-10020 Yoke Sub-Assy, Steering Sliding[05.1983 - 04.1988] AA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD); AA6#,SA60,TA63..CP,WG |
45209-10020 |
US $121.36 |
||
|
45253
|
45253
45025-14100 Cover, Steering Column Hole[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63 |
45025-14100 |
US $52.42 |
||
|
45254
|
45254
45254-24011 Shield, Steering Column Hole[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# |
45254-24011 |
US $11.94 |
||
|
45255
|
45255
45255-12030 Plate, Steering Column Hole Cover[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63 |
45255-12030 |
US $8.88 |
||
|
45255A
|
45255A
90301-59001 Grommet Or Ring, O(For Steering Column Clamp)[01.1982 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63 |
90301-59001 |
US $8.30 |
||
|
45255A
|
45255A
90301-60122 Grommet Or Ring, O(For Steering Column Clamp)[09.1981 - 01.1982] AA60,RA63,SA60,TA61,63 |
90301-60122 |
US $8.91 |
||
|
45266
|
45266
45266-12020 Cover, Steering Intermediate Shaft Dust[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63 |
45266-12020 |
US $5.94 |
||
|
45269
|
45269
45269-10010 Retainer, Main Shaft Bearing[06.1984 - 04.1988] AA60,CA67,KA67..DLX,SG,STD |
45269-10010 |
US $6.41 |
||
|
45269
|
45269
45269-35010 Retainer, Main Shaft Bearing[09.1981 - 06.1984] AA60,CA67,KA67,TA67..DLX,SG,STD |
45269-35010 |
US $6.41 |
||
|
45275
|
45275
45280-24030 Bracket, Steering Column, Upper[09.1981 - 09.1982] AA60,CA67,TA67..DLX,SG,STD |
45280-24030 |
US $218.40 |
||
| replacement | |||||
|
45275
|
45275
45280-24031 Bracket, Steering Column, Upper[09.1981 - 09.1982] AA60,CA67,TA67..DLX,SG,STD |
45280-24031 |
US $221.31 |
||
|
45275
|
45275
45280-24031 Bracket, Steering Column, Upper[09.1982 - 04.1988] AA60,CA67,KA67,TA67..DLX,SG,STD |
45280-24031 |
US $221.31 |
||
|
45275A
|
45275A
45897-12030 Bolt, Hexagon(For Steering Column Bracket)[09.1981 - 09.1982] AA60..DLX,SG,STD |
45897-12030 |
US $8.56 |
||
|
45281
|
45281
45286-24900-01 Housing, Steering Column[09.1981 - 04.1988] AA60,CA67,KA67,TA67..DLX,SG,STD BLACK,BLACK,TRIM2# |
45286-24900-01 |
US $56.06 |
||
|
45281
|
45281
45286-24900-04 Housing, Steering Column[08.1982 - 05.1986] AA60..DLX,SG BLUE,BLUE,TRIM8# |
45286-24900-04 |
US $56.06 |
||
| replacement | |||||
|
45281
|
45281
45286-24900-01 Housing, Steering Column[08.1982 - 05.1986] AA60..DLX,SG BLUE,BLUE,TRIM8# |
45286-24900-01 |
US $56.06 |
||
|
45281
|
45281
45286-24900-06 Housing, Steering Column[08.1982 - 04.1988] AA60,CA67,KA67,TA67..DLX,SG DARK BROWN,BROWN,TRIM4# |
45286-24900-06 |
US $56.06 |
||
| replacement | |||||
|
45281
|
45281
45286-24900-01 Housing, Steering Column[08.1982 - 04.1988] AA60,CA67,KA67,TA67..DLX,SG DARK BROWN,BROWN,TRIM4# |
45286-24900-01 |
US $56.06 |
||
|
45281
|
45281
45286-24900-14 Housing, Steering Column[05.1986 - 12.1987] AA60..DLX,SG BLUE,BLUE,TRIM8# |
45286-24900-14 |
US $56.06 |
||
| replacement | |||||
|
45281
|
45281
45286-24900-01 Housing, Steering Column[05.1986 - 12.1987] AA60..DLX,SG BLUE,BLUE,TRIM8# |
45286-24900-01 |
US $56.06 |
||
|
45281E
|
45281E
45283-22010 Plate, Safety Caution[09.1981 - 04.1988] AA6#,CA6#,KA67,RA63,SA60,TA6# |
45283-22010 |
US $2.40 |
||
|
45807
|
45807
45807-24011 Bracket Sub-Assy, Steering Column Upper Support[09.1981 - 04.1988] AA60,CA67,KA67,TA67..DLX,SG,STD |
45807-24011 |
US $44.12 |
||
|
45817
|
45817
45808-12020
Stopper, Steering Shaft Thrust
[09.1981 - 01.1985] AA6#,CA60,RA63,SA60,TA61,63 |
45808-12020 |
— | ||
| replacement | |||||
|
45817
|
45817
45808-12030
Stopper Sub-Assy, Steering Shaft Thrust
[09.1981 - 01.1985] AA6#,CA60,RA63,SA60,TA61,63 |
45808-12030 |
— | ||
|
45817
|
45817
45808-12030
Stopper Sub-Assy, Steering Shaft Thrust
[01.1985 - 04.1988] AA6#,SA60,TA63 |
45808-12030 |
— | ||
|
45817A
|
45817A
96711-24053 Ring, O(For Hydraulic Cylinder Body)[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63 |
96711-24053 |
US $4.02 |
||
|
45867
|
45867
45867-12010 Retainer, Steering Main Shaft Stopper[09.1981 - 04.1988] AA6#,CA60,RA63,SA60,TA61,63 |
45867-12010 |
US $9.03 |
||
|
9010108070
|
9010108070
90101-08070
Bolt, Hexagon
|
90101-08070 |
— | ||
| replacement | |||||
|
9010108070
|
9010108070
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
|
9010510082
|
9010510082
90105-10082 New Genuine Part |
90105-10082 |
US $2.33 |
||
|
9011908185
|
9011908185
90119-08185 New Genuine Part |
90119-08185 |
US $1.75 |
||
| replacement | |||||
|
9011908185
|
9011908185
90119-08165 New Genuine Part |
90119-08165 |
US $2.62 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017910178
|
9017910178
90179-10178 New Genuine Part |
90179-10178 |
US $1.75 |
||
|
9020110323
|
9020110323
90201-10323 New Genuine Part |
90201-10323 |
US $6.26 |
||
|
9098007195
|
9098007195
90980-07195 Cable, Bond(For Horn Earth) |
90980-07195 |
US $17.33 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
