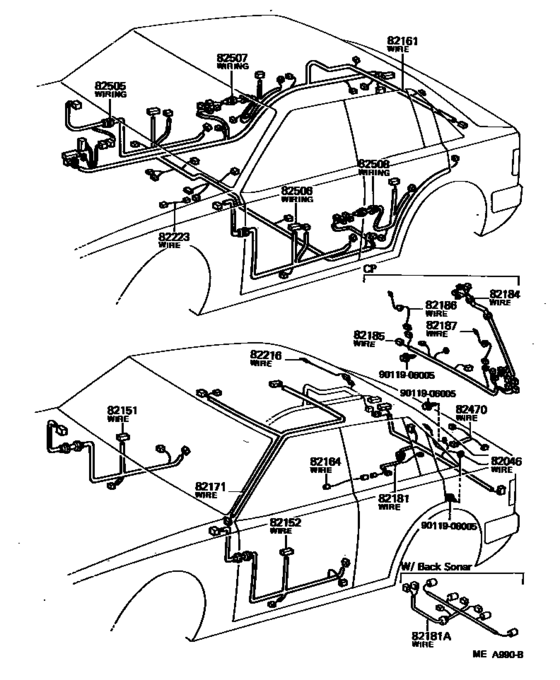

Wiring & Clamp ([09.1981 - 12.1987] (8109-8712)CP,SED) Diagram Toyota CARINA
- Year
- 1981 - 1987
- Sales region
- Japan
- Frame
- AA60
- grade
- DLX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 09.1981
- To
- 12.1987
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82046
|
82046
82187-14011 Wire Sub-Assy, Rear Window Defogger Earth[09.1981 - 12.1987] AA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD) |
82187-14011 |
US $9.46 |
||
|
82161
|
82161
82161-14011
Wire, Floor
[09.1981 - 05.1983] AA60,CA60,SA60..SED..(DLX,SG,ST,STD) |
82161-14011 |
— | ||
|
82161
|
82161
82161-14370 Wire, Floor[05.1983 - 12.1987] AA60,CA60,SA60..SED..(DLX,SG,ST,STD) |
82161-14370 |
US $362.54 |
||
|
82171
|
82171
82171-14011 Wire, Roof, No.1[09.1981 - 12.1987] AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SG,ST,STD) |
82171-14011 |
US $31.01 |
||
|
82181
|
82181
82181-14011
Wire, Luggage Room, No.1
[09.1981 - 12.1982] AA60,CA60,RA63,SA60,TA61,63..SED |
82181-14011 |
— | ||
|
82181
|
82181
82181-14012
Wire, Luggage Room, No.1
[12.1982 - 05.1983] AA60,CA60,SA60..SED |
82181-14012 |
— | ||
|
82181
|
82181
82181-14320 Wire, Luggage Room, No.1[05.1983 - 12.1987] AA60,CA60,SA60..SED |
82181-14320 |
US $80.08 |
||
|
82470
|
82470
82470-14031
Wire Assy, License Lamp Feed
[09.1981 - 12.1987] AA6#,CA60,RA63,SA60,TA61,63..SED |
82470-14031 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
