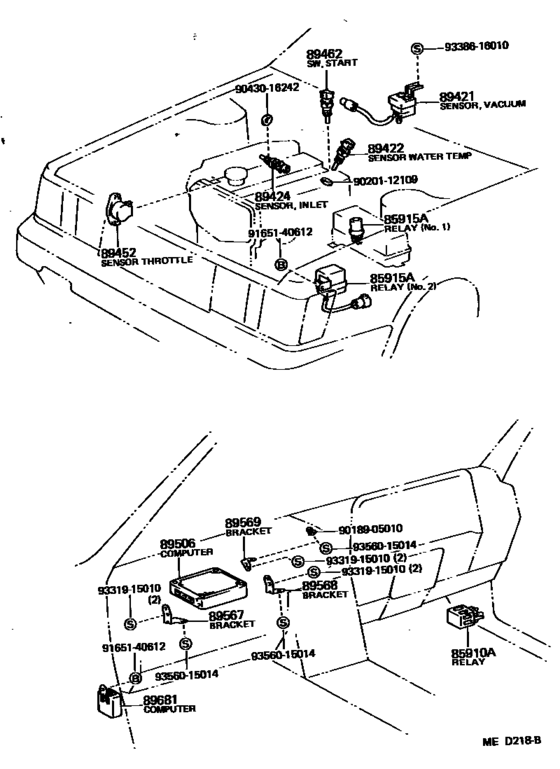

Electronic Fuel Injection System ([05.1983 - 07.1985] (8305-8507)AA63) Diagram Toyota CARINA
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- AA63
- grade
- GT
- body
- SED
- ENGINE
- 4AGEU
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 05.1983
- To
- 07.1985
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[09.1981 - 07.1985] AA63,RA63,TA61,63 |
85910-30050 |
US $84.36 |
||
|
85915A
|
85915A
85915-14050
Relay, Main
[10.1982 - 07.1985] AA63,TA63..GT,GTT NO.2 |
85915-14050 |
— | ||
|
85915A
|
85915A
90987-02004 Relay Assy, Starter[09.1981 - 07.1985] AA63,RA63,TA61,63 NO.1 |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85915A
|
85915A
909870200483 [09.1981 - 07.1985] AA63,RA63,TA61,63 NO.1 |
909870200483 |
US $53.75 |
||
|
89421
|
89421
89421-14010 Sensor Assy, Vacuum (For E.f.i.)[05.1983 - 07.1985] AA63 |
89421-14010 |
US $126.67 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[09.1981 - 07.1985] AA63,RA63,TA61,63 |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[09.1981 - 07.1985] AA63,RA63,TA61,63 |
89422-12010 |
from US $61.10 |
||
|
89424
|
89424
89424-28010
Sensor, Inlet Air Temperature (For E.f.i.)
[05.1983 - 07.1985] AA63 |
89424-28010 |
— | ||
|
89452
|
89452
89452-28010
Sensor, Throttle Position (For E.f.i.)
[05.1983 - 07.1985] AA63 |
89452-28010 |
— | ||
| replacement | |||||
|
89452
|
89452
89452-20060
Sensor, Throttle Position (For E.f.i.)
[05.1983 - 07.1985] AA63 |
89452-20060 |
— | ||
|
89462
|
89462
89462-30011 Switch, Start Injector Time[04.1983 - 07.1985] AA63,TA61,63..GT,SE,ST |
89462-30011 |
US $139.12 |
||
|
89506
|
89506
89661-14060 Computer Set, Fuel Injection[05.1983 - 08.1983] AA63 |
89661-14060 |
US $1,108.02 |
||
| replacement | |||||
|
89506
|
89506
89661-14061 Computer Set, Fuel Injection[05.1983 - 08.1983] AA63 |
89661-14061 |
US $1,220.13 |
||
|
89506
|
89506
89661-14061 Computer Set, Fuel Injection[08.1983 - 07.1985] AA63 |
89661-14061 |
US $1,220.13 |
||
|
89567
|
89567
89567-14060
Bracket, Fuel Injection Computer
[05.1983 - 07.1985] AA63 |
89567-14060 |
— | ||
|
89568
|
89568
89568-14050
Bracket, Fuel Injection Computer
[05.1983 - 07.1985] AA63 |
89568-14050 |
— | ||
|
89569
|
89569
89569-14050
Bracket, Fuel Injection Computer
[05.1983 - 07.1985] AA63 |
89569-14050 |
— | ||
|
89681
|
89681
89681-14010
Computer Assy, Idle-Up
[05.1983 - 07.1985] AA63 |
89681-14010 |
— | ||
|
9018905010
|
9018905010
90189-05010 GROMMET |
90189-05010 |
US $2.08 |
||
|
9020112109
|
9020112109
90201-12109 Washer, Air Bleeder Nipple |
90201-12109 |
from US $1.38 |
||
|
9043016242
|
9043016242
90430-16242 Gasket, W/head Straight Screw Plug |
90430-16242 |
from US $0.94 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9338616010
|
9338616010
93386-16010 New Genuine Part |
93386-16010 |
US $1.89 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
