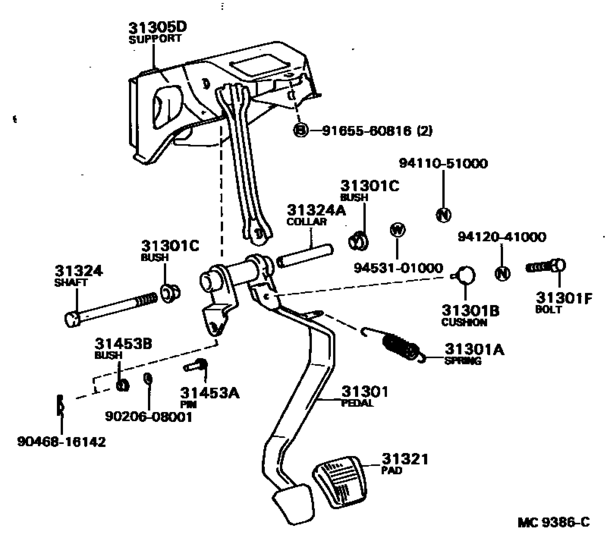

Clutch Pedal & Flexible Hose ([05.1984 - ] (8405- )AT15#,160,CT150,ST150..MTM) Diagram Toyota CARINA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1984
- To
- 04.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-20170 Pedal Sub-Assy, Clutch[05.1984 - 04.1988] AT15#,160,CT150,ST150..MTM |
31301-20170 |
US $50.09 |
||
|
31301A
|
31301A
90507-14003
Spring(For Clutch Pedal)
[05.1984 - 04.1988] AT15#,160,CT150,ST150..MTM |
90507-14003 |
— | ||
|
31301B
|
31301B
90541-06008 Cushion, No.1(For Clutch Pedal)[05.1984 - 04.1988] AT15#,160,CT150,ST150..MTM |
90541-06008 |
from US $1.54 |
||
|
31301C
|
31301C
90386-13015 Bush(For Clutch Pedal)[03.1986 - 04.1988] AT15#,160,CT150,ST150,162..MTM |
90386-13015 |
from US $0.64 |
||
|
31301C
|
31301C
90386-13192 Bush(For Over Center Plate)[05.1984 - 03.1986] AT15#,160,CT150,ST150,162..MTM |
90386-13192 |
from US $1.64 |
||
|
31301F
|
31301F
90101-10369 Bolt(For Clutch Pedal Stopper)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162..MTM |
90101-10369 |
from US $1.31 |
||
|
31305D
|
31305D
55107-20050 Support Sub-Assy, Clutch Pedal[05.1984 - 08.1985] AT15#,CT150,ST150..MTM |
55107-20050 |
US $33.20 |
||
|
31305D
|
31305D
55107-20051 Support Sub-Assy, Clutch Pedal[08.1985 - 04.1988] AT15#,160,CT150,ST150..MTM |
55107-20051 |
US $36.55 |
||
|
31321
|
31321
31321-14020 Pad, Clutch Pedal[05.1984 - 04.1988] AT15#,160,CT150,ST150,162..MTM |
31321-14020 |
from US $3.37 |
||
| replacement | |||||
|
31321
|
31321
31321YE010
PAD PEDAL
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162..MTM |
31321YE010 |
— | ||
|
31324
|
31324
90101-10100 Shaft, Clutch Pedal[05.1984 - 04.1988] AT15#,160,CT150,ST150,162..MTM |
90101-10100 |
US $5.73 |
||
|
31324A
|
31324A
90387-10002 Collar, Clutch Pedal Shaft[05.1984 - 04.1988] AT15#,160,CT150,ST150,162..MTM |
90387-10002 |
US $6.63 |
||
|
31453A
|
31453A
90240-08006 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162..MTM 長さ＝２３．５ |
90240-08006 |
from US $2.87 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162..MTM |
90386-08002 |
from US $3.22 |
||
|
9020608001
|
9020608001
90206-08001 WASHER |
90206-08001 |
US $2.15 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
||
|
9165560816
|
9165560816
91655-60816 New Genuine Part |
91655-60816 |
US $2.18 |
||
| replacement | |||||
|
9165560816
|
9165560816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.76 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
