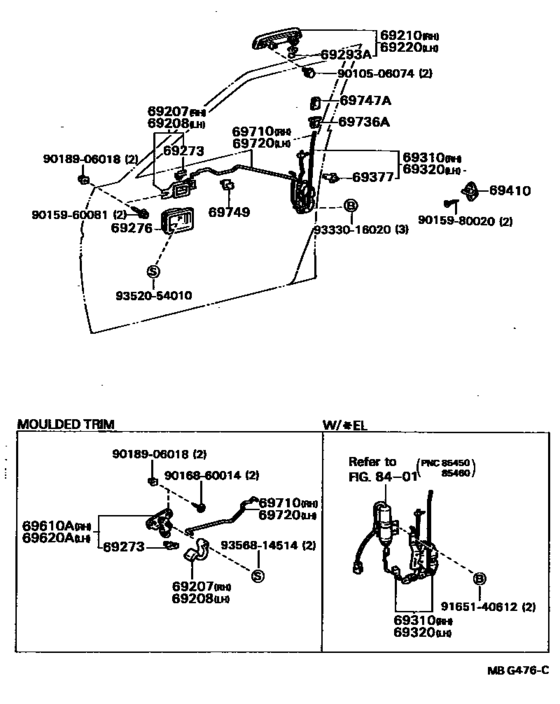

Front Door Lock & Handle ([05.1984 - ] (8405- )) Diagram Toyota CARINA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1984
- To
- 04.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69207
|
69207
69205-12070-03
Handle Sub-Assy, Front Door Inside, Rh
[05.1984 - 05.1986] AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69205-12070-03 |
— | ||
| replacement | |||||
|
69207
|
69207
69205-12070-B2 Handle Sub-Assy, Front Door Inside, Rh (Blue Gray)[05.1984 - 05.1986] AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69205-12070-B2 |
US $19.22 |
||
|
69207
|
69207
69205-12070-04 Handle Sub-Assy, Front Door Inside, Rh[05.1984 - 05.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69205-12070-04 |
US $29.27 |
||
|
69207
|
69207
69205-12070-16
Handle Sub-Assy, Front Door Inside, Rh
[05.1984 - 08.1985] AT15#,CT150..DX,SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
69205-12070-16 |
— | ||
| replacement | |||||
|
69207
|
69207
69205-12070-B2 Handle Sub-Assy, Front Door Inside, Rh (Blue Gray)[05.1984 - 08.1985] AT15#,CT150..DX,SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
69205-12070-B2 |
US $19.22 |
||
|
69207
|
69207
69205-12070-33
Handle Sub-Assy, Front Door Inside, Rh
[05.1986 - 09.1987] AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
69205-12070-33 |
— | ||
| replacement | |||||
|
69207
|
69207
69205-12070-B2 Handle Sub-Assy, Front Door Inside, Rh (Blue Gray)[05.1986 - 09.1987] AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
69205-12070-B2 |
US $19.22 |
||
|
69207
|
69207
69205-20080-03 Handle Sub-Assy, Front Door Inside, Rh[09.1987 - 12.1987] AT15#,160,CT150,ST150 GRAY,MEDIUN GRAY,TRIM1# |
69205-20080-03 |
US $26.94 |
||
|
69208
|
69208
69206-12070-03
Handle Sub-Assy, Front Door Inside, Lh
[05.1984 - 05.1986] AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69206-12070-03 |
— | ||
| replacement | |||||
|
69208
|
69208
69206-16040-13
Handle Sub-Assy, Front Door Inside, Rh
[05.1984 - 05.1986] AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69206-16040-13 |
— | ||
|
69208
|
69208
69206-12070-04
Handle Sub-Assy, Front Door Inside, Lh
[05.1984 - 05.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69206-12070-04 |
— | ||
|
69208
|
69208
69206-12070-16
Handle Sub-Assy, Front Door Inside, Lh
[05.1984 - 08.1985] AT15#,CT150..DX,SG SEPIA BROWN,SEPIA BROWN,TRIM4# |
69206-12070-16 |
— | ||
|
69208
|
69208
69206-12070-33
Handle Sub-Assy, Front Door Inside, Lh
[05.1986 - 09.1987] AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
69206-12070-33 |
— | ||
| replacement | |||||
|
69208
|
69208
69206-12070-B2 Handle Sub-Assy, Front Door Inside, Rh (Blue Gray)FRONT DOOR INSIDE, RH [05.1986 - 09.1987] AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
69206-12070-B2 |
US $19.22 |
||
|
69208
|
69208
69206-20090-03 Handle Sub-Assy, Front Door Inside, Lh[09.1987 - 12.1987] AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
69206-20090-03 |
US $26.94 |
||
|
69210
|
69210
69210-20090
Handle Assy, Front Door, Outside Rh
[05.1984 - 04.1988] AT15#,160,ST162..DX,GT,GTR,ST |
69210-20090 |
— | ||
|
69220
|
69220
69220-20090
Handle Assy, Front Door Outside, Lh
[05.1984 - 04.1988] AT15#,160,ST162..DX,GT,GTR,ST |
69220-20090 |
— | ||
|
69273
|
69273
69759-14050 Snap(For Rear Door Inside Handle)[09.1987 - 12.1987] AT15#,160,CT150,ST150 RH |
69759-14050 |
from US $2.24 |
||
|
69273
|
69273
69759-20060 Snap(For Rear Door Inside Handle)[05.1984 - 09.1987] AT15#,160,CT150,ST150,162 RH |
69759-20060 |
US $3.84 |
||
|
69273
|
69273
69759-20070 Snap(For Rear Door Inside Handle)[05.1984 - 09.1987] AT15#,160,CT150,ST150,162 LH |
69759-20070 |
from US $2.24 |
||
|
69273
|
69273
69759-24070 Snap(For Rear Door Inside Handle)[09.1987 - 12.1987] AT15#,160,CT150,ST150 LH |
69759-24070 |
US $2.88 |
||
|
69276
|
69276
69277-32020-04
Bezel, Front Door Inside Handle
[05.1984 - 02.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69277-32020-04 |
— | ||
| replacement | |||||
|
69276
|
69276
69277-89104-B2 Bezel, Front Door Inside Handle (Blue Gray)[05.1984 - 02.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69277-89104-B2 |
from US $6.56 |
||
|
69276
|
69276
69277-32020-26
Bezel, Front Door Inside Handle
[05.1984 - 08.1985] AT15#,CT150..DX,SG SEPIA BROWN,BROWN,TRIM4# |
69277-32020-26 |
— | ||
| replacement | |||||
|
69276
|
69276
69277-89104-B2 Bezel, Front Door Inside Handle (Blue Gray)[05.1984 - 08.1985] AT15#,CT150..DX,SG SEPIA BROWN,BROWN,TRIM4# |
69277-89104-B2 |
from US $6.56 |
||
|
69276
|
69276
69277-32020-33
Bezel, Front Door Inside Handle
[05.1984 - 05.1986] AT15#,160,CT150,ST150,162 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69277-32020-33 |
— | ||
| replacement | |||||
|
69276
|
69276
69277-32020-01 Bezel, Front Door Inside Handle[05.1984 - 05.1986] AT15#,160,CT150,ST150,162 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69277-32020-01 |
US $8.59 |
||
|
69276
|
69276
69277-32020-43 Bezel, Front Door Inside Handle[05.1986 - 04.1988] AT15#,160,CT150,ST150 GRAY,MEDIUM GRAY,TRIM1# |
69277-32020-43 |
US $8.59 |
||
|
69276
|
69276
69277-32020-54 Bezel, Front Door Inside Handle[02.1986 - 05.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69277-32020-54 |
US $8.59 |
||
| replacement | |||||
|
69276
|
69276
69277-89104-B2 Bezel, Front Door Inside Handle (Blue Gray)[02.1986 - 05.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69277-89104-B2 |
from US $6.56 |
||
|
69293A
|
69293A
69293-16050 Snap, Front Door Outside Handle[05.1984 - 04.1988] AT15#,160,ST162..DX,GT,GTR,ST LH; AT15#,CT150,ST150..SE,SG RH |
69293-16050 |
US $3.49 |
||
|
69293A
|
69293A
69293-16060 Snap, Front Door Outside Handle[05.1984 - 04.1988] AT15#,CT150,ST150..SE,SG LH; AT15#,160,ST162..DX,GT,GTR,ST RH |
69293-16060 |
US $3.49 |
||
|
69310
|
69310
69310-20270 Lock Assy, Front Door, Rh[05.1984 - 09.1987] AT15#,160,CT150,ST150 |
69310-20270 |
US $94.64 |
||
|
69310
|
69310
69310-20560 Lock Assy, Front Door, Rh[09.1987 - 12.1987] AT15#,160,CT150,ST150 |
69310-20560 |
US $94.64 |
||
|
69320
|
69320
69320-20270 Lock Assy, Front Door, Lh[05.1984 - 09.1987] AT15#,160,CT150,ST150 |
69320-20270 |
US $94.64 |
||
|
69320
|
69320
69320-20550 Lock Assy, Front Door, Lh[09.1987 - 12.1987] AT15#,160,CT150,ST150 |
69320-20550 |
US $94.64 |
||
|
69377
|
69377
69759-20080 Snap, Door Lock Control Link[05.1984 - 09.1987] AT15#,160,CT150,ST150,162 RH |
69759-20080 |
US $4.48 |
||
|
69377
|
69377
69759-20090 Snap(For Rear Door Lock)[05.1984 - 09.1987] AT15#,160,CT150,ST150,162 LH |
69759-20090 |
US $4.48 |
||
|
69377
|
69377
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[09.1987 - 12.1987] AT15#,160,CT150,ST150,162 RH |
69759-24050 |
from US $3.84 |
||
|
69377
|
69377
69759-24060 Snap(For Rear Door Lock)[09.1987 - 12.1987] AT15#,160,CT150,ST150,162 LH |
69759-24060 |
from US $4.64 |
||
|
69410
|
69410
69410-12050
Plate Assy, Front Door Lock Striker
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
69410-12050 |
— | ||
|
69710
|
69710
69711-20070 Link Assy, Front Door Open Control, Rh[05.1984 - 09.1987] AT15#,160,CT150,ST150 |
69711-20070 |
US $9.03 |
||
|
69710
|
69710
69711-20140 Link Assy, Front Door Open Control, Rh[09.1987 - 12.1987] AT15#,160,CT150,ST150 |
69711-20140 |
US $9.17 |
||
|
69720
|
69720
69712-20070 Link Assy, Front Door Open Control, Lh[05.1984 - 09.1987] AT15#,160,CT150,ST150 |
69712-20070 |
US $9.03 |
||
|
69720
|
69720
69712-20140 Link Assy, Front Door Open Control, Lh[09.1987 - 12.1987] AT15#,160,CT150,ST150 |
69712-20140 |
US $9.17 |
||
|
69736A
|
69736A
69736-12030
Guide, Front Door Lock Link
[07.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
69736-12030 |
— | ||
|
69736A
|
69736A
69736-22021
Guide, Front Door Lock Link
[05.1984 - 07.1984] AT15#,CT150,ST150 |
69736-22021 |
— | ||
|
69747A
|
69747A
69741-32010-04 Button, Door Locking(For Front Door)[05.1984 - 02.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69741-32010-04 |
US $4.51 |
||
| replacement | |||||
|
69747A
|
69747A
69741-32010-20 Knob, Front Door Lock Control[05.1984 - 02.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69741-32010-20 |
US $4.89 |
||
|
69747A
|
69747A
69741-32010-23 Button, Door Locking(For Front Door)[05.1984 - 05.1986] AT15#,160,CT150,ST150,162 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69741-32010-23 |
US $4.51 |
||
| replacement | |||||
|
69747A
|
69747A
69741-90K00-C0 Knob, Front Door Lock Control[05.1984 - 05.1986] AT15#,160,CT150,ST150,162 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69741-90K00-C0 |
US $3.52 |
||
|
69747A
|
69747A
69741-32010-36 Button, Door Locking(For Front Door)[05.1984 - 08.1985] AT15#,CT150..DX,SG SEPIA BROWN,BROWN,TRIM4# |
69741-32010-36 |
US $4.51 |
||
|
69747A
|
69747A
69741-32010-43 Button, Door Locking(For Front Door)[05.1986 - 04.1988] AT15#,160,CT150,ST150,162 GRAY,MEDIUM GRAY,TRIM1# |
69741-32010-43 |
US $4.51 |
||
| replacement | |||||
|
69747A
|
69747A
69741-90K00-C0 Knob, Front Door Lock Control[05.1986 - 04.1988] AT15#,160,CT150,ST150,162 GRAY,MEDIUM GRAY,TRIM1# |
69741-90K00-C0 |
US $3.52 |
||
|
69747A
|
69747A
69741-32010-44 Button, Door Locking(For Front Door)[02.1986 - 05.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69741-32010-44 |
US $4.51 |
||
| replacement | |||||
|
69747A
|
69747A
69741-32010-20 Knob, Front Door Lock Control[02.1986 - 05.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69741-32010-20 |
US $4.89 |
||
|
69749
|
69749
69749-12010 Clamp(For Hood Lock Control Cable)[09.1987 - 12.1987] AT15#,160,CT150,ST150 |
69749-12010 |
from US $1.93 |
||
|
69749
|
69749
69749-20010 Clamp, Front Door Lock Link[05.1984 - 09.1987] AT15#,160,CT150,ST150,162 |
69749-20010 |
from US $2.88 |
||
|
9010506074
|
9010506074
90105-06074
New Genuine Part
|
90105-06074 |
— | ||
| replacement | |||||
|
9010506074
|
9010506074
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9015960081
|
9015960081
90159-60081 SCREW |
90159-60081 |
US $1.12 |
||
|
9015980020
|
9015980020
90159-80020
SCREW
|
90159-80020 |
— | ||
| replacement | |||||
|
9015980020
|
9015980020
90151-80016 SCREW CROSSRECESS |
90151-80016 |
US $2.08 |
||
|
9016860014
|
9016860014
90168-60014 New Genuine Part |
90168-60014 |
US $1.60 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9333016020
|
9333016020
93330-16020
New Genuine Part
|
93330-16020 |
— | ||
|
9352054010
|
9352054010
93520-54010 Screw |
93520-54010 |
from US $0.84 |
||
|
9356814514
|
9356814514
93568-14514 New Genuine Part |
93568-14514 |
US $1.60 |
||
| replacement | |||||
|
9356814514
|
9356814514
93568-54514 New Genuine Part |
93568-54514 |
US $1.76 |
||
