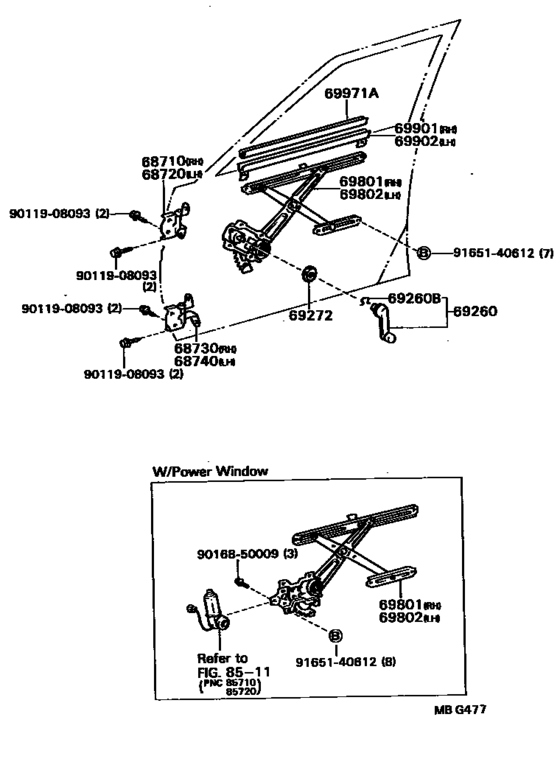

Front Door Window Regulator & Hinge ([05.1984 - ] (8405- )) Diagram Toyota CARINA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1984
- To
- 04.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-14030 Hinge Assy, Front Door, Upper Rh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
68710-14030 |
US $42.81 |
||
| replacement | |||||
|
68710
|
68710
68710-60040 Hinge Assy, Front Door, Upper Rh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
68710-60040 |
from US $28.27 |
||
|
68720
|
68720
68720-14030
Hinge Assy, Front Door, Upper Lh
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
68720-14030 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-60040 Hinge Assy, Front Door, Upper Lh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
68720-60040 |
from US $28.27 |
||
|
68730
|
68730
68730-14030 Hinge Assy, Front Door, Lower Rh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
68730-14030 |
from US $43.08 |
||
|
68740
|
68740
68740-14030 Hinge Assy, Front Door, Lower Lh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
68740-14030 |
from US $43.08 |
||
|
69260
|
69260
69260-14020-04 Handle Assy, Front Door Window Regulator[05.1984 - 02.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69260-14020-04 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-22030-14
Handle Assy, Front Door Window Regulator
[05.1984 - 02.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69260-22030-14 |
— | ||
|
69260
|
69260
69260-14020-20 Handle Assy, Front Door Window Regulator[02.1986 - 05.1986] AT15#,CT150,ST150 BLUE,BLUE,TRIM8#; ST150 SE-CUSTOM,BLUE,BLUE,TRIM8# |
69260-14020-20 |
US $21.69 |
||
|
69260
|
69260
69260-14020-33 Handle Assy, Front Door Window Regulator[05.1984 - 05.1986] AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69260-14020-33 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-14020-01
Handle Assy, Front Door Window Regulator
[05.1984 - 05.1986] AT15#,160,CT150,ST150 SHADOW GRAY,GRAY,TRIM1#; ST150 SE-CUSTOM,SHADOW GRAY,GRAY,TRIM1# |
69260-14020-01 |
— | ||
|
69260
|
69260
69260-14020-36 Handle Assy, Front Door Window Regulator[05.1984 - 08.1985] AT15#,CT150..DX,SG SEPIA BROWN,BROWN,TRIM4# |
69260-14020-36 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-22030-23
Handle Assy, Front Door Window Regulator
[05.1984 - 08.1985] AT15#,CT150..DX,SG SEPIA BROWN,BROWN,TRIM4# |
69260-22030-23 |
— | ||
|
69260
|
69260
69260-14020-43 Handle Assy, Front Door Window Regulator[05.1986 - 04.1988] AT15#,160,CT150,ST150,162 GRAY,MEDIUM GRAY,TRIM1# |
69260-14020-43 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-14020-B0 Handle Assy, Front Door Window Regulator[05.1986 - 04.1988] AT15#,160,CT150,ST150,162 GRAY,MEDIUM GRAY,TRIM1# |
69260-14020-B0 |
US $21.69 |
||
|
69260B
|
69260B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[05.1984 - 04.1988] AT15#,160,CT150,ST150 |
90520-01002 |
— | ||
| replacement | |||||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[05.1984 - 04.1988] AT15#,160,CT150,ST150 |
90520-01274 |
from US $1.01 |
||
|
69272
|
69272
69285-22010
Escutcheon, Door Regulator Handle(For Front Door)
[05.1984 - 04.1988] AT15#,160,CT150,ST150 |
69285-22010 |
— | ||
| replacement | |||||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[05.1984 - 04.1988] AT15#,160,CT150,ST150 |
69285-22010-08 |
from US $1.85 |
||
|
69801
|
69801
69801-20120 Regulator Sub-Assy, Front Door Window, Rh[09.1987 - 04.1988] AT150..DX MY LIFE,W/*PW |
69801-20120 |
US $122.30 |
||
|
69801
|
69801
69810-20100 Regulator Sub-Assy, Front Door Window, Rh[05.1984 - 04.1988] AT15#,160,CT150,ST150 |
69810-20100 |
US $97.55 |
||
|
69802
|
69802
69802-20120 Regulator Sub-Assy, Front Door Window, Lh[09.1987 - 04.1988] AT150..DX MY LIFE,W/*PW |
69802-20120 |
US $122.30 |
||
|
69802
|
69802
69820-20100 Regulator Sub-Assy, Front Door Window, Lh[05.1984 - 04.1988] AT15#,160,CT150,ST150 |
69820-20100 |
US $97.55 |
||
|
69901
|
69901
69901-20100 Channel Sub-Assy, Front Door Glass, Rh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
69901-20100 |
US $13.40 |
||
|
69902
|
69902
69901-20100 Channel Sub-Assy, Front Door Glass, Rh[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
69901-20100 |
US $13.40 |
||
|
69971A
|
69971A
69971-22010
Weatherstrip, Front Door Glass Channel
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
69971-22010 |
— | ||
| replacement | |||||
|
69971A
|
69971A
69971-90K00 Filler, Front Door Glass Channel[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
69971-90K00 |
from US $8.81 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9016850009
|
9016850009
90168-50009 New Genuine Part |
90168-50009 |
US $1.89 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
