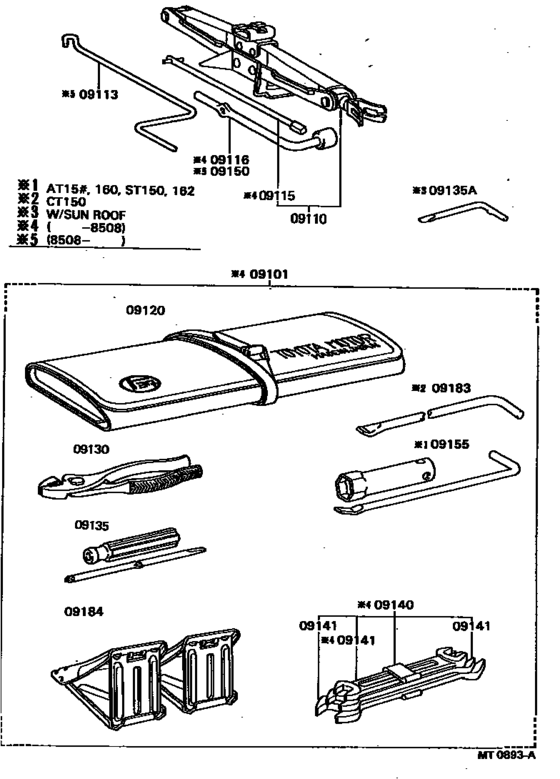

Standard Tool ([05.1984 - ] (8405- )) Diagram Toyota CARINA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1984
- To
- 04.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
09101
|
09101
09102-12074
Tool Set, Standard W/o Jack
[05.1984 - 08.1985] AT15# |
09102-12074 |
— | ||
|
09110
|
09110
09111-20060
Jack Assy
[08.1985 - 05.1986] AT15#,160,CT150,ST150,162 |
09111-20060 |
— | ||
|
09110
|
09110
09111-24030
Jack Assy
[05.1986 - 04.1988] AT15#,160,CT150,ST150,162 |
09111-24030 |
— | ||
|
09110
|
09110
09118-14010
Jack Assy
[05.1984 - 08.1985] AT15#,CT150,ST150 |
09118-14010 |
— | ||
| replacements | |||||
|
09110
|
09110
09111-20101 Jack Assy[05.1984 - 08.1985] AT15#,CT150,ST150 |
09111-20101 |
US $52.42 |
||
|
09110
|
09110
09113-44010 Handle, Jack[05.1984 - 08.1985] AT15#,CT150,ST150 |
09113-44010 |
US $16.57 |
||
|
09113
|
09113
09113-20030
Handle, Jack
[08.1985 - 01.1986] AT15#,160,CT150,ST150,162 |
09113-20030 |
— | ||
| replacement | |||||
|
09113
|
09113
09113-20050 Handle, Jack[08.1985 - 01.1986] AT15#,160,CT150,ST150,162 |
09113-20050 |
from US $7.20 |
||
|
09113
|
09113
09113-24020
Handle, Jack
[01.1986 - 04.1988] AT15#,160,CT150,ST150,162 |
09113-24020 |
— | ||
| replacement | |||||
|
09113
|
09113
09113-14030 Handle, Jack[01.1986 - 04.1988] AT15#,160,CT150,ST150,162 |
09113-14030 |
US $7.51 |
||
|
09115
|
09115
09115-16020
Rod Sub-Assy, Jack Handle
[05.1984 - 08.1985] AT15#,CT150,ST150 |
09115-16020 |
— | ||
|
09116
|
09116
09116-16010
Lever, Jack Handle
[05.1984 - 08.1985] AT15#,CT150,ST150 |
09116-16010 |
— | ||
|
09120
|
09120
09120-10030
Bag, Tool
[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
09120-10030 |
— | ||
|
09120
|
09120
09120-12011 Bag, Tool (Black)[05.1984 - 08.1985] AT15#,CT150,ST150 |
09120-12011 |
from US $10.40 |
||
|
09130
|
09130
99913-11500 Pliers (China)No Toyota stamp [05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
99913-11500 |
US $6.40 |
||
|
09135
|
09135
99915-10700 Driver, ScrewNo Toyota stamp [05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
99915-10700 |
from US $7.36 |
||
| replacement | |||||
|
09135
|
09135
90089-99009 Driver, Screw (ATC) (Thailand)Screw Driver (ATC) [05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90089-99009 |
from US $2.28 |
||
|
09140
|
09140
09140-12011
Spanner Set
[05.1984 - 08.1985] AT15#,CT150,ST150 |
09140-12011 |
— | ||
|
09141
|
09141
99914-10810 Spanner (China)No Toyota stamp [05.1984 - 04.1988] AT15#,160,CT150,ST150,162 ８ Ｘ １０,8X10 |
99914-10810 |
from US $3.84 |
||
| replacement | |||||
|
09141
|
09141
09141-0K030 Spanner (ATC) (Thailand)8x10 [05.1984 - 04.1988] AT15#,160,CT150,ST150,162 ８ Ｘ １０,8X10 |
09141-0K030 |
from US $6.99 |
||
|
09141
|
09141
99914-11012 Spanner (No Toyota)(China) [05.1984 - 08.1985] AT15#,CT150,ST150 １０ Ｘ １２,10X12 |
99914-11012 |
US $4.72 |
||
|
09141
|
09141
99914-11214 Spanner (China)No Toyota stamp [08.1985 - 04.1988] AT15#,160,CT150,ST150,162 １２ Ｘ １４,12X14 |
99914-11214 |
from US $6.40 |
||
| replacement | |||||
|
09141
|
09141
09141-0K040 Spanner (Thailand)[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 １２ Ｘ １４,12X14 |
09141-0K040 |
US $10.48 |
||
|
09141
|
09141
99914-11417 Spanner (No Toyota)(Made in China) [05.1984 - 08.1985] AT15#,CT150,ST150 １４ Ｘ １７,14X17 |
99914-11417 |
US $6.12 |
||
|
09150
|
09150
09150-26010 Wrench, Hub Nut Box[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
09150-26010 |
US $14.72 |
||
|
09155
|
09155
09155-41020 Wrench, Spark Plug[08.1985 - 12.1985] AT15#,ST150 |
09155-41020 |
US $6.55 |
||
|
09155
|
09155
09155-44020
Wrench, Spark Plug
[05.1984 - 08.1985] AT15# |
09155-44020 |
— | ||
|
09184
|
09184
09184-00010 Stopper, Wheel[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
09184-00010 |
from US $12.32 |
||
