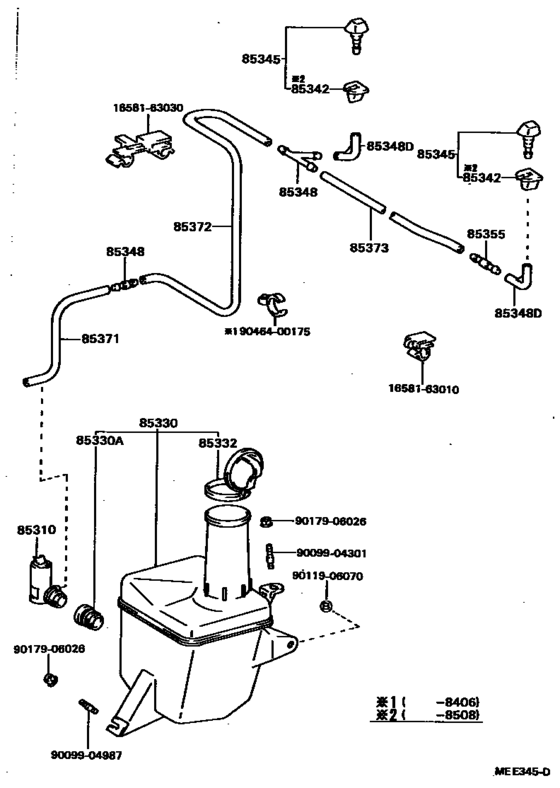

Windshield Washer ([05.1984 - ] (8405- )) Diagram Toyota CARINA
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- AT150
- grade
- DX
- body
- 4D
- ENGINE
- 3ALU
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 05.1984
- To
- 04.1988
- Gear Shift Type
- 4F
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85331-20430
Jar Assy, Windshield Washer
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
85331-20430 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85332-20430
Cap, Windshield Washer Jar
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
85332-20430 |
— | ||
| replacement | |||||
|
85332
|
85332
85332-20431
Cap, Windshield Washer Jar
[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 |
85332-20431 |
— | ||
|
85342
|
85342
85342-14010 Holder, Washer Nozzle[05.1984 - 08.1985] AT15#,CT150,ST150 |
85342-14010 |
US $3.84 |
||
|
85345
|
85345
85035-19015
Nozzle, Windshield Washer
[05.1984 - 08.1985] AT15#,CT150,ST150 |
85035-19015 |
— | ||
|
85345
|
85345
85035-20140
Nozzle, Windshield Washer
[08.1985 - 04.1988] AT15#,160,CT150,ST150,162 |
85035-20140 |
— | ||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 3WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[03.1987 - 04.1988] AT15#,160,CT150,ST150,162 2WAY |
85349-89122 |
from US $1.25 |
||
|
85348
|
85348
85355-87201
Joint, Windshield Washer Hose, No.1
[05.1984 - 03.1987] AT15#,160,CT150,ST150,162 2WAY |
85355-87201 |
— | ||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[05.1984 - 03.1987] AT15#,160,CT150,ST150,162 2WAY |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[05.1987 - 04.1988] AT15#,160,CT150,ST150,162 |
85355-14481 |
US $0.98 |
||
|
85348D
|
85348D
85355-20070
Joint, Windshield Washer Motor
[05.1984 - 05.1987] AT15#,160,CT150,ST150,162 |
85355-20070 |
— | ||
| replacement | |||||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[05.1984 - 05.1987] AT15#,160,CT150,ST150,162 |
85355-14481 |
US $0.98 |
||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[08.1987 - 04.1988] AT15#,160,CT150,ST150,162 |
85031-12250 |
— | ||
|
85355
|
85355
85031-14080
Joint, Windshield Washer Hose, No.1
[05.1984 - 08.1987] AT15#,160,CT150,ST150,162 |
85031-14080 |
— | ||
| replacement | |||||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[05.1984 - 08.1987] AT15#,160,CT150,ST150,162 |
85031-12250 |
— | ||
|
85371
|
85371
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 ＊Ｈ，Ｌ＝１０５０ |
90446-07001 |
from US $2.10 |
||
|
85372
|
85372
90099-33299 Joint, Windshield Washer Elbow, No.2[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 Ｌ＝１４５０（＊Ｈ，Ｌ＝３３０） |
90099-33299 |
US $4.37 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[05.1984 - 04.1988] AT15#,160,CT150,ST150,162 ＊Ｈ，Ｌ＝４９０ |
90446-06013 |
from US $0.70 |
||
|
1658163010
|
1658163010
16581-63010 Clamp, Hose(for Water Hose) |
16581-63010 |
US $4.16 |
||
|
1658163030
|
1658163030
16581-63030
Clamp, Hose(for Water Hose)
|
16581-63030 |
— | ||
|
9009904301
|
9009904301
90099-04301
New Genuine Part
|
90099-04301 |
— | ||
|
9009904987
|
9009904987
90099-04987
New Genuine Part
|
90099-04987 |
— | ||
|
9011906070
|
9011906070
90119-06070
BOLT
|
90119-06070 |
— | ||
| replacement | |||||
|
9011906070
|
9011906070
90119-06442 BOLT WWASHER |
90119-06442 |
from US $1.01 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9046400175
|
9046400175
90464-00175 New Genuine Part |
90464-00175 |
US $5.59 |
||
