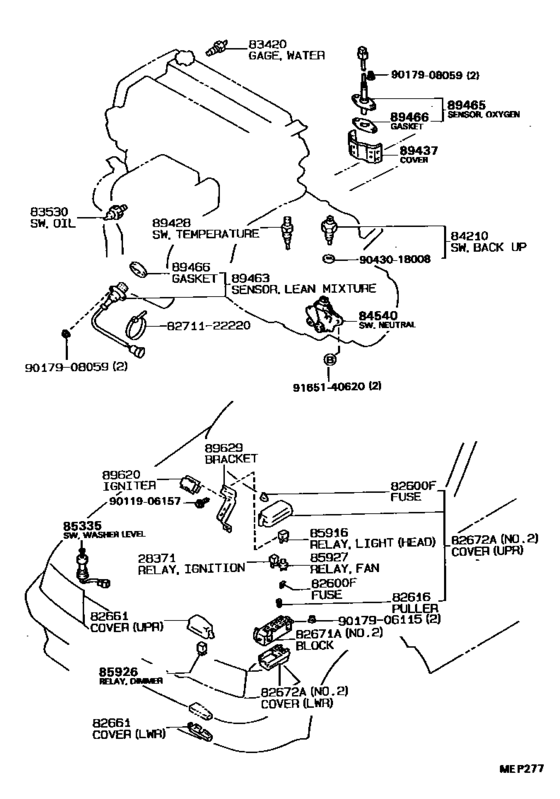

Switch & Relay & Computer ([12.1987 - ] (8712- )AT171..EFI) Diagram Toyota CARINA
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- AT171
- grade
- XL
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- MTM
- DESTINATION
- G
- Model
- CARINA 2
- From
- 06.1988
- To
- 03.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Carina 2
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-04002 Relay, Ignition, No.1[12.1987 - 11.1992] 4AF#,2C,3SFE..AT171,CT170,ST171 |
90987-04002 |
from US $25.17 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[12.1987 - 11.1992] AT171,CT170,ST171 30A,30A |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[02.1988 - 11.1992] AT171,CT170,ST171 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[12.1987 - 11.1992] AT171,CT170,ST171..RHD 15A; AT171,CT170,ST171..LHD 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[12.1987 - 11.1992] AT171,CT170,ST171 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[12.1987 - 11.1992] AT171,CT170,ST171 7.5A |
90982-09005 |
from US $1.09 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[12.1987 - 11.1992] AT171,CT170,ST171 |
82616-12010 |
from US $3.04 |
||
|
82661
|
82661
82672-20380 Cover, Relay Block, No.1[12.1987 - 11.1992] AT171,CT170,ST171..LHD..(DSL,EFI) LWR; CT170..RHD W(AIR CONDITIONER) OR W(*66),LWR |
82672-20380 |
US $8.15 |
||
|
82661
|
82661
82672-20470 Cover, Relay Block, No.1RELAY BLOCK, NO.1 [02.1988 - 11.1992] AT171,CT170,ST171..LHD..(DSL,EFI) UPR |
82672-20470 |
US $17.33 |
||
|
82671A
|
82671A
82671-20100 Block, Junction[06.1988 - 02.1989] ST171..5F..XL NO.1; AT171..XL..EFI NO.1 |
82671-20100 |
US $230.05 |
||
|
82671A
|
82671A
82671-20120 Block, JunctionJUNCTION [02.1988 - 02.1989] ST171..LHD..GL W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3; AT171..LHD..GL W(*66) OR W(*EL) OR W(*MR) OR W(*DRC),NO.3; AT171..SED..5F..XL..W W(*EL & *TAC) OR W(*MR & *TAC),NO.3; ST171..XL;AT171..XL..G..CBR W(*EL & *TAC) OR W(*MR & *TAC) |
82671-20120 |
US $230.05 |
||
|
82671A
|
82671A
82671-20140 Block, JunctionJUNCTION [06.1988 - 02.1989] ST171..5F..XL NO.3; AT171..XL..EFI NO.3 |
82671-20140 |
US $230.05 |
||
|
82671A
|
82671A
82671-20160 Block, Junction[12.1987 - 08.1990] AT171,ST171..EFI NO.2 |
82671-20160 |
US $230.05 |
||
|
82671A
|
82671A
82671-20170 Block, Junction[12.1987 - 08.1990] CT170 NO.2; AT171,ST171..EFI W(55D23L-MF BATTERY),NO.2 |
82671-20170 |
US $230.05 |
||
|
82672A
|
82672A
82672-20200 Cover, Junction Block[12.1987 - 11.1992] AT171,CT170,ST171..DSL,EFI NO.2,LWR |
82672-20200 |
US $28.54 |
||
|
82672A
|
82672A
82672-20291 Cover, Junction BlockJUNCTION BLOCK [02.1988 - 11.1989] AT171,ST171..LHD..EFI NO.2,UPR; ST171..RHD UNITED KINGDOM SPEC,NO.2,UPR |
82672-20291 |
US $36.40 |
||
|
82672A
|
82672A
82672-20320 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 11.1992] AT171,CT170,ST171..LHD NO.3 |
82672-20320 |
US $13.40 |
||
|
82672A
|
82672A
82672-20340 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 11.1992] AT171,CT170,ST171..LHD NO.1 |
82672-20340 |
US $9.46 |
||
|
82672A
|
82672A
82672-20670 Cover, Junction BlockJUNCTION BLOCK [11.1989 - 11.1992] AT171,ST171..LHD..EFI NO.2,UPR |
82672-20670 |
US $36.69 |
||
|
82672A
|
82672A
82672-20700 Cover, Junction BlockJUNCTION BLOCK [11.1989 - 11.1992] AT171..5F..EFI W(LEAN BURN SPEC),NO.2,UPR |
82672-20700 |
US $36.69 |
||
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[12.1987 - 11.1992] AT171,ST171 |
83420-16020 |
from US $50.49 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[12.1987 - 11.1989] AT171 |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[12.1987 - 11.1989] AT171 |
83530-60050 |
from US $30.54 |
||
|
83530
|
83530
83530-30051
Switch Assy, Oil Pressure (For Engine)
[03.1990 - 11.1992] AT171 |
83530-30051 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[03.1990 - 11.1992] AT171 |
83530-60050 |
from US $30.54 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[12.1987 - 11.1992] AT171,CT170,ST171..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[12.1987 - 11.1992] AT171,CT170,ST171..5F |
84210-52050 |
from US $20.67 |
||
|
85335
|
85335
85397-20250 Switch Assy, Washer Level Warning[11.1989 - 11.1990] AT171,CT170,ST171 |
85397-20250 |
US $55.04 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[12.1987 - 11.1992] AT171,CT170,ST171 TAIL LAMP,MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT171,CT170,ST171 TAIL LAMP,MARUKO |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT171,CT170,ST171 TAIL LAMP,*ND |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02006 Relay[12.1987 - 08.1990] AT171,CT170,ST171 HEADLAMP |
90987-02006 |
from US $29.23 |
||
|
85926
|
85926
85926-30020 Relay, Headlamp Dimmer[12.1987 - 11.1992] AT171,CT170,ST171..RHD; AT171,CT170,ST171..LHD |
85926-30020 |
from US $52.10 |
||
|
85927
|
85927
90987-03001 Relay[12.1987 - 11.1992] AT171,CT170,ST171 |
90987-03001 |
from US $31.32 |
||
|
89428
|
89428
89428-15011 Switch, Temperature Detect, No.2[12.1987 - 11.1992] AT171 ENGINE |
89428-15011 |
US $78.62 |
||
| replacement | |||||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[12.1987 - 11.1992] AT171 ENGINE |
89428-32010 |
US $84.91 |
||
|
89437
|
89437
89437-32020 Cover, Sensor[11.1989 - 11.1992] AT171,ST171..G |
89437-32020 |
US $13.54 |
||
|
89463
|
89463
89463-29025 Sensor, Lean MixtureLEAN MIXTURE [12.1987 - 11.1989] AT171..EFI |
89463-29025 |
US $761.49 |
||
|
89463
|
89463
89463-29035 Sensor, Lean MixtureLEAN MIXTURE [11.1989 - 11.1992] AT171..5F..EFI |
89463-29035 |
US $752.75 |
||
|
89465
|
89465
89465-29375 Sensor, Oxygen[11.1989 - 11.1992] AT171..EFI |
89465-29375 |
US $144.14 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 11.1992] AT171,ST171..G |
89466-20020 |
from US $13.42 |
||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[12.1987 - 10.1988] AT171,ST171..G |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[12.1987 - 10.1988] AT171,ST171..G |
89466-20020 |
from US $13.42 |
||
|
89620
|
89620
89621-30010
Igniter Assy
[12.1987 - 11.1992] ST171;AT171..5F..EFI |
89621-30010 |
— | ||
| replacement | |||||
|
89620
|
89620
89621-12010
Igniter Assy
[12.1987 - 11.1992] ST171;AT171..5F..EFI |
89621-12010 |
— | ||
|
89629
|
89629
89629-20090 Bracket, Igniter Assy[12.1987 - 11.1992] ST171;AT171..5F..EFI |
89629-20090 |
US $4.95 |
||
|
8271122220
|
8271122220
82711-22220 Clamp (For Speedometer Cable) |
82711-22220 |
US $3.93 |
||
|
9011906157
|
9011906157
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
