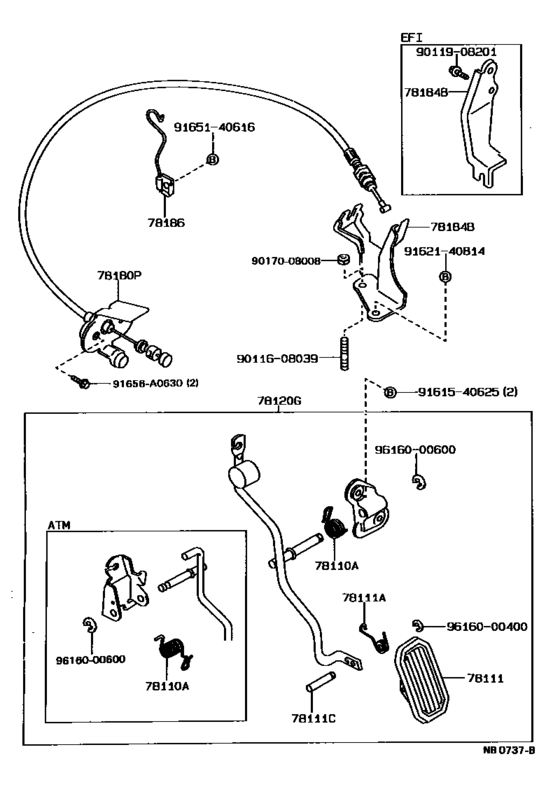

Accelerator Link ([12.1987 - ] (8712- )AT171..LHD) Diagram Toyota CARINA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AT171
- grade
- GL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- G
- Model
- CARINA 2
- From
- 12.1987
- To
- 11.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Carina 2
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90508-26062 Spring (For Accelerator Pedal Rod)[12.1987 - 11.1989] AT171..EFI WD=2.6,CW=3.88; ST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL) |
90508-26062 |
US $3.20 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[12.1987 - 11.1992] AT171,CT170,ST171 |
78111-32010 |
US $10.13 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[12.1987 - 12.1988] ST171..5F;AT171,ST171..RHD..4FC;AT171,CT170..5F..(CBR,DSL) |
90508-18050 |
— | ||
|
78111A
|
78111A
90508-18081 Spring (For Accelerator Pedal)[12.1988 - 11.1989] ST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL) |
90508-18081 |
US $1.89 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[12.1987 - 11.1992] AT171,CT170,ST171 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20340 Rod Assy, Accelerator PedalACCELERATOR PEDAL [12.1987 - 11.1989] ST171..LHD..5F;AT171,CT170..LHD..5F..(CBR,DSL) |
78120-20340 |
US $43.10 |
||
|
78180P
|
78180P
78180-2B140
Cable Assy, Accelerator Control
[12.1987 - 11.1992] AT171..LHD..CBR |
78180-2B140 |
— | ||
|
78184B
|
78184B
78184-12230
Bracket, Accelerator Control Cable
[12.1987 - 11.1992] AT171..CBR |
78184-12230 |
— | ||
|
78186
|
78186
78186-12230
Support, Accelerator Control Cable, No.1
[12.1987 - 05.1988] AT171..LHD |
78186-12230 |
— | ||
|
91656A0630
|
91656A0630
91656-A0630 New Genuine Part |
91656-A0630 |
US $1.46 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $3.67 |
||
|
9011908201
|
9011908201
90119-08201
Bolt (for Transmission Control Cable Bracket)
|
90119-08201 |
— | ||
| replacements | |||||
|
9011908201
|
9011908201
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9011908201
|
9011908201
90119-A0310 Bolt (For Transmission Control Cable Bracket) |
90119-A0310 |
US $1.95 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9161540625
|
9161540625
91615-40625 Bolt, W/washer (for Parking Cove & Case) |
91615-40625 |
US $1.89 |
||
| replacement | |||||
|
9161540625
|
9161540625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
