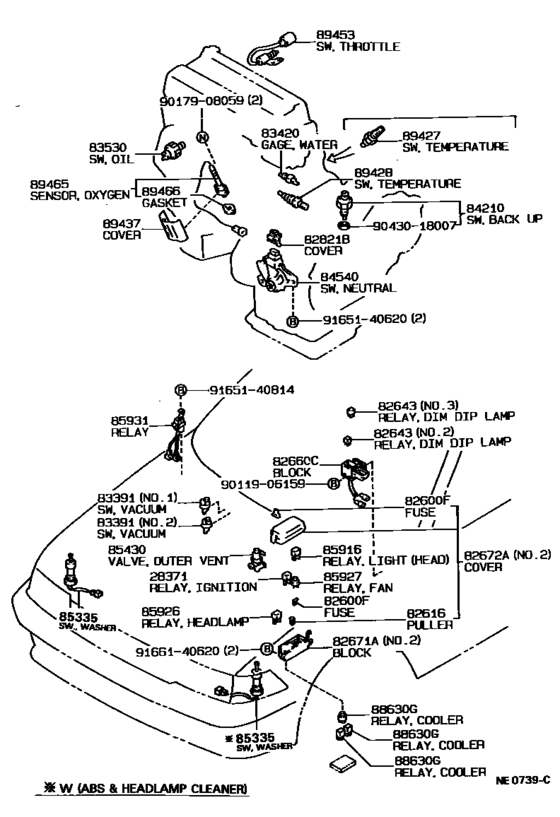

Switch & Relay & Computer ([12.1987 - ] (8712- )CBR) Diagram Toyota CARINA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- AT171
- grade
- GL
- body
- SED
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- DESTINATION
- G
- Model
- CARINA 2
- From
- 12.1987
- To
- 11.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Carina 2
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-04002 Relay, Ignition, No.1[12.1987 - 11.1992] 4AF#,2C,3SFE..AT171,CT170,ST171 |
90987-04002 |
from US $25.17 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[12.1987 - 11.1992] AT171,CT170,ST171 30A,30A |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[12.1987 - 02.1988] AT171,CT170,ST171..LHD 10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[12.1987 - 02.1989] ST171..GL..G 15A; ST171..XL;AT171..XL..G..CBR 15A; AT171..LB..4FC..G 15A; AT171..SED..GL..G..CBR;AT171..LB..5F..GL..G..CBR 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[12.1987 - 11.1992] AT171,CT170,ST171 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[12.1987 - 11.1992] AT171,CT170,ST171 7.5A |
90982-09005 |
from US $1.09 |
||
|
82616
|
82616
82616-12010 Lever, Fuse[12.1987 - 11.1992] AT171,CT170,ST171 |
82616-12010 |
from US $3.04 |
||
|
82671A
|
82671A
82671-20100 Block, Junction[12.1987 - 02.1989] CT170..LHD;AT171..SED..4FC..XL..W;AT171..LHD..(LB,WG)..XL..W NO.1; CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171..SED..5F..XL..W NO.1; ST171..4FC..XL;AT171..XL..G..CBR NO.1 |
82671-20100 |
US $230.05 |
||
|
82671A
|
82671A
82671-20120 Block, JunctionJUNCTION [12.1987 - 02.1988] CT170,ST171..LHD;AT171..LHD..(LB,WG);AT171..LHD..SED..4FC;AT171..SED..5F..XL..G;AT 171..LHD..SED..5F..GL NO.3; AT171..SED..5F..XL..W W(*EL) OR W(*MR) OR W(*TAC) OR W(*HC) OR W(2SPEAKER) OR W(*SH),NO.3 |
82671-20120 |
US $230.05 |
||
|
82671A
|
82671A
82671-20140 Block, JunctionJUNCTION [02.1988 - 02.1989] AT171..SED..5F..XL..W NO.3; CT170..LHD;AT171..SED..4FC..XL..W;AT171..LHD..(LB,WG)..XL..W NO.3; ST171..4FC..XL;AT171..XL..G..CBR NO.3; AT171,ST171..LHD..GL;AT171..SED..5F..XL..W NO.3 |
82671-20140 |
US $230.05 |
||
|
82671A
|
82671A
82671-32030
Block, Junction
[12.1987 - 11.1989] AT171..CBR NO.2 |
82671-32030 |
— | ||
|
82672A
|
82672A
82672-20320 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 11.1992] AT171,CT170,ST171..LHD NO.3 |
82672-20320 |
US $13.40 |
||
|
82672A
|
82672A
82672-20340 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 11.1992] AT171,CT170,ST171..LHD NO.1 |
82672-20340 |
US $9.46 |
||
|
82672A
|
82672A
82672-20440 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 02.1988] AT171..LHD..CBR NO.2; AT171..RHD UNITED KINGDOM SPEC,NO.2 |
82672-20440 |
US $31.01 |
||
| replacement | |||||
|
82672A
|
82672A
82672-20441 Cover, Junction BlockJUNCTION BLOCK [12.1987 - 02.1988] AT171..LHD..CBR NO.2; AT171..RHD UNITED KINGDOM SPEC,NO.2 |
82672-20441 |
US $31.30 |
||
|
82672A
|
82672A
82672-20441 Cover, Junction BlockJUNCTION BLOCK [02.1988 - 11.1989] AT171..LHD..CBR NO.2; AT171..RHD UNITED KINGDOM SPEC,NO.2 |
82672-20441 |
US $31.30 |
||
|
83391
|
83391
83391-12210 Switch, Vacuum[12.1987 - 11.1989] AT171..G..CBR NO.1 |
83391-12210 |
US $59.75 |
||
|
83391
|
83391
83391-20060
Switch, Vacuum
[12.1987 - 11.1989] AT171..G..CBR NO.2 |
83391-20060 |
— | ||
|
83420
|
83420
83420-16020 Gage Assy, Water Temperature Sender[12.1987 - 11.1992] AT171,ST171 |
83420-16020 |
from US $50.49 |
||
|
83530
|
83530
83530-30050
Switch Assy, Oil Pressure (For Engine)
[12.1987 - 11.1989] AT171 |
83530-30050 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60050 Switch Assy, Oil Pressure (For Engine)[12.1987 - 11.1989] AT171 |
83530-60050 |
from US $30.54 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[12.1987 - 11.1992] AT171,CT170,ST171..5F |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[12.1987 - 11.1992] AT171,CT170,ST171..5F |
84210-52050 |
from US $20.67 |
||
|
85430
|
85430
90925-09011 Valve, Outer Vent ControlOUTER VENT CONTROL [12.1987 - 11.1989] AT171..G..CBR |
90925-09011 |
US $62.46 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[12.1987 - 11.1992] AT171,CT170,ST171 TAIL LAMP,MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT171,CT170,ST171 TAIL LAMP,MARUKO |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[12.1987 - 11.1992] AT171,CT170,ST171 TAIL LAMP,*ND |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02006 Relay[12.1987 - 08.1990] AT171,CT170,ST171 HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85926
|
85926
85926-30020 Relay, Headlamp Dimmer[12.1987 - 11.1992] AT171,CT170,ST171..RHD; AT171,CT170,ST171..LHD |
85926-30020 |
from US $56.86 |
||
|
85927
|
85927
90987-03001 Relay[12.1987 - 11.1992] AT171,CT170,ST171 |
90987-03001 |
from US $31.32 |
||
|
85931
|
85931
85931-20020 Relay, Emission ControlEMISSION CONTROL [12.1987 - 11.1989] AT171..G..CBR |
85931-20020 |
US $117.94 |
||
|
88630G
|
88630G
88630-20090
Relay Assy, Cooler
[12.1987 - 06.1988] AT171..CBR MB4 TYPE |
88630-20090 |
— | ||
|
88630G
|
88630G
88630-32010
Relay Assy, Cooler
[12.1987 - 06.1988] ST171..XL;AT171..CBR;ST171..RHD MB5 TYPE |
88630-32010 |
— | ||
|
88630G
|
88630G
90987-02004 Relay Assy, Starter[12.1987 - 06.1988] ST171..XL;AT171..CBR M4 TYPE |
90987-02004 |
from US $28.70 |
||
|
89427
|
89427
89427-12090 Switch, Temperature Detect[12.1987 - 11.1989] AT171..G..CBR |
89427-12090 |
from US $68.49 |
||
|
89428
|
89428
89428-15011 Switch, Temperature Detect, No.2[12.1987 - 11.1992] AT171 ENGINE |
89428-15011 |
US $78.62 |
||
| replacement | |||||
|
89428
|
89428
89428-32010 Switch, Temperature Detect, No.2[12.1987 - 11.1992] AT171 ENGINE |
89428-32010 |
US $84.91 |
||
|
89437
|
89437
89437-32020 Cover, Sensor[12.1987 - 11.1989] ST171..G;AT171..G..CBR |
89437-32020 |
US $13.54 |
||
|
89453
|
89453
89453-12040
Switch, Throttle Position (For T.c.s.)
[12.1987 - 11.1989] AT171..G..CBR |
89453-12040 |
— | ||
|
89465
|
89465
89465-29245 Sensor, OxygenOXYGEN [12.1987 - 10.1988] ST171..G;AT171..G..CBR |
89465-29245 |
US $145.60 |
||
| replacement | |||||
|
89465
|
89465
89465-29295 Sensor, OxygenOXYGEN [12.1987 - 10.1988] ST171..G;AT171..G..CBR |
89465-29295 |
US $145.60 |
||
|
89465
|
89465
89465-29295 Sensor, OxygenOXYGEN [10.1988 - 03.1992] ST171..G;AT171..G..CBR |
89465-29295 |
US $145.60 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 11.1992] AT171,ST171..G |
89466-20020 |
from US $13.42 |
||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[12.1987 - 10.1988] AT171,ST171..G |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[12.1987 - 10.1988] AT171,ST171..G |
89466-20020 |
from US $13.42 |
||
|
9011906159
|
9011906159
90119-06159 BOLT |
90119-06159 |
US $1.12 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166140620
|
9166140620
91661-40620 New Genuine Part |
91661-40620 |
US $1.28 |
||
