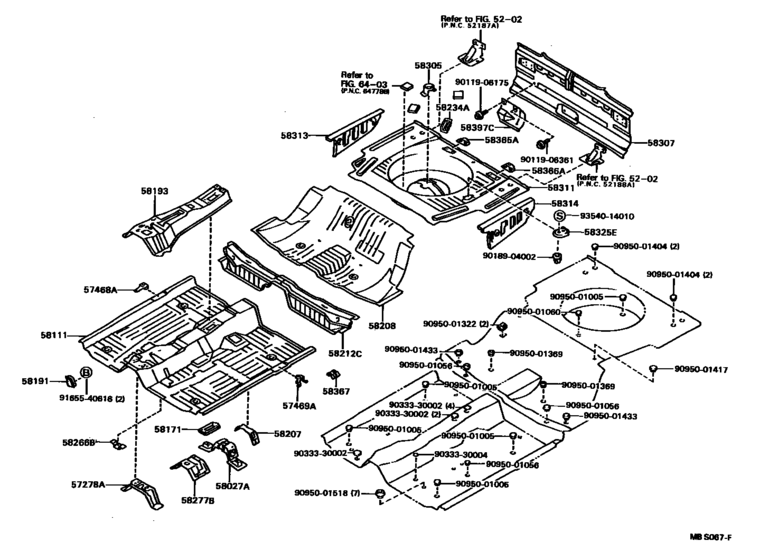

Floor Pan & Lower Back Panel ([08.1988 - ] (8808- )AT175) Diagram Toyota CARINA
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- AT175
- grade
- SG
- body
- SED
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 05.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Carina FF
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57278A
|
57278A
57278-20010 Bracket, Catalytic Converter Support[08.1988 - 08.1992] AT175 |
57278-20010 |
US $46.01 |
||
|
57468A
|
57468A
57468-20040 Bracket, Front Seat, Outside, Rear Rh[08.1988 - 08.1992] AT175 |
57468-20040 |
US $14.71 |
||
|
57469A
|
57469A
57469-20040 Bracket, Front Seat, Outside, Rear Lh[08.1988 - 08.1992] AT175 |
57469-20040 |
US $14.71 |
||
|
58027A
|
58027A
58027-20090 Reinforce Sub-Assy, Seat Belt Anchor[08.1988 - 08.1992] AT175 |
58027-20090 |
US $57.95 |
||
|
58111
|
58111
58111-20113
Pan, Front Floor
[12.1988 - 08.1992] AT175 |
58111-20113 |
— | ||
|
58171
|
58171
58171-20090 Reinforcement, Parking Brake Base[08.1988 - 08.1992] AT175 |
58171-20090 |
US $9.17 |
||
|
58191
|
58191
58191-20030 Footrest, Front Floor[08.1988 - 08.1992] AT175 |
58191-20030 |
US $19.66 |
||
|
58193
|
58193
58109-20100 Bracket, Instrument Panel Brace Mounting[08.1988 - 08.1992] AT175 |
58109-20100 |
US $145.60 |
||
|
58207
|
58207
58207-20070 Bracket Sub-Assy, Parking Brake Cable, No.1[08.1988 - 08.1992] AT175 |
58207-20070 |
US $18.20 |
||
|
58208
|
58208
58201-32090 Pan, Center Floor[08.1988 - 08.1992] AT175 |
58201-32090 |
US $256.26 |
||
|
58212C
|
58212C
58212-32010 Pan, Center Floor, Front[08.1988 - 08.1992] AT175 |
58212-32010 |
US $253.34 |
||
|
58234A
|
58234A
58234-32030 Bracket, Exhaust Pipe Mounting, Inner[08.1988 - 08.1992] AT175 |
58234-32030 |
US $21.99 |
||
|
58266B
|
58266B
58266-22040 Bracket, Fuel Tube Clamp[08.1988 - 08.1992] AT175 |
58266-22040 |
US $4.08 |
||
|
58277B
|
58277B
58277-20032 Reinforcement, Drive Shaft Center Support[12.1988 - 08.1992] AT175 |
58277-20032 |
US $44.41 |
||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[08.1988 - 08.1992] AT175 |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-20670 Panel Sub-Assy, Body Lower Back[05.1990 - 08.1992] AT17#,CT170,ST170..SED |
58307-20670 |
US $235.87 |
||
|
58311
|
58311
58311-32110 Pan, Rear Floor[08.1988 - 08.1992] AT175 |
58311-32110 |
US $505.23 |
||
|
58313
|
58313
58313-20320 Panel, Rear Floor Side, Rh[08.1988 - 08.1992] AT175 |
58313-20320 |
US $59.11 |
||
|
58314
|
58314
58314-20300 Panel, Rear Floor Side, Lh[08.1988 - 08.1992] AT175 |
58314-20300 |
US $59.11 |
||
|
58325E
|
58325E
58325-20040
Cover, Rear Floor Service Hole
[08.1988 - 08.1992] AT175 |
58325-20040 |
— | ||
|
58365A
|
58365A
58365-32010 Bracket, Fuel Tank Support, Rh[08.1988 - 08.1992] AT175 |
58365-32010 |
US $14.71 |
||
|
58366A
|
58366A
58366-20010 Bracket, Fuel Tank Support, Lh[08.1988 - 08.1992] AT175 |
58366-20010 |
US $17.18 |
||
|
58367
|
58367
58367-20040 Bracket, Fuel Tube Clamp[08.1988 - 08.1992] AT175 |
58367-20040 |
US $5.97 |
||
|
58397C
|
58397C
58397-20070 Cover, Body Lower Back, Rh[08.1988 - 08.1992] AT175 |
58397-20070 |
US $68.87 |
||
|
9011906175
|
9011906175
90119-06175 New Genuine Part |
90119-06175 |
US $1.75 |
||
|
9011906361
|
9011906361
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.28 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $1.92 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
US $0.96 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001322
|
9095001322
90950-01322 New Genuine Part |
90950-01322 |
US $20.24 |
||
|
9095001369
|
9095001369
90950-01369 New Genuine Part |
90950-01369 |
US $7.13 |
||
| replacement | |||||
|
9095001369
|
9095001369
90950-01979 New Genuine Part |
90950-01979 |
US $6.64 |
||
|
9095001404
|
9095001404
90950-01404 CLIP |
90950-01404 |
US $1.46 |
||
|
9095001417
|
9095001417
90950-01417
PLUG
|
90950-01417 |
— | ||
| replacement | |||||
|
9095001417
|
9095001417
90950-01865 PLUG HOLE |
90950-01865 |
from US $1.31 |
||
|
9095001433
|
9095001433
90950-01433 New Genuine Part |
90950-01433 |
US $3.04 |
||
|
9095001518
|
9095001518
90950-01518 PLUG |
90950-01518 |
from US $1.23 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.92 |
||
