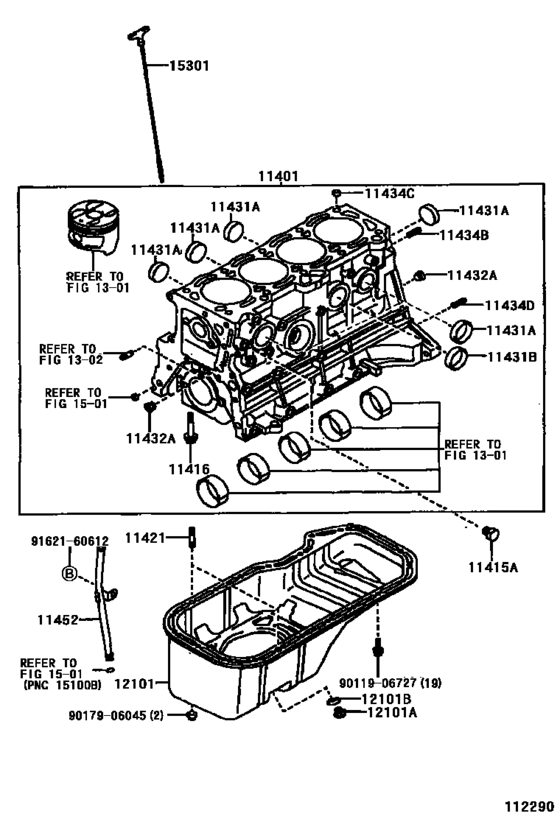

Cylinder Block ([08.1992 - ] (9208- )4AFE,5AFE) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-19695 Block Sub-Assy, Cylinder[08.1992 - 08.1996] 4AFE..AT190 |
11401-19695 |
US $2,475.20 |
||
|
11415A
|
11415A
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[12.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 2C..CT19# |
90345-52003 |
US $3.68 |
||
|
11416
|
11416
90105-10007 Bolt(For Crankshaft Bearing Cap Set)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90105-10007 |
US $6.08 |
||
|
11421
|
11421
90116-06022 Bolt, Stud(For Valve Push Rod Cover)[08.1992 - 08.1996] 4AFE,5AFE..AT190,192; 3SFE,4SFE..ST19# |
90116-06022 |
from US $1.95 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[08.1992 - 08.1996] 4AFE,7AFE..AT190,191 |
96411-43500 |
from US $3.88 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 3SFE,4SFE..ST19# |
96411-44000 |
from US $4.17 |
||
|
11432A
|
11432A
90344-53008 Plug, W/head Taper Screw, No.2[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90344-53008 |
US $1.76 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# 長さ＝２２，外径＝１０; 3SFE,4SFE..ST19# 長さ＝２２，外径＝１０ |
90250-10113 |
from US $1.03 |
||
|
11434C
|
11434C
90253-13017 Pin, Ring W/head[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# 長さ＝１２，外径＝１３ |
90253-13017 |
US $2.24 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# 長さ＝１４，外径＝６; 3SFE..ST195 長さ＝１４，外径＝６ |
90250-06003 |
US $1.44 |
||
|
11452
|
11452
11452-15030 Guide, Oil Level Gage[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
11452-15030 |
US $29.88 |
||
|
12101
|
12101
12101-16100 Pan Sub-Assy, Oil[08.1992 - 08.1996] 4AFE,5AFE..AT190,192 |
12101-16100 |
US $172.80 |
||
|
12101A
|
12101A
90341-12026
Plug, Drain
[08.1992 - 09.1994] 4AFE,5AFE..AT190,192; 2C..CT19#; 3SFE,4SFE..ST19# |
90341-12026 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.1992 - 09.1994] 4AFE,5AFE..AT190,192; 2C..CT19#; 3SFE,4SFE..ST19# |
90341-12012 |
from US $2.56 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[12.1993 - 09.1994] 4AFE,5AFE..AT190,192; 2C..CT19#; 3SFE,4SFE..ST19# |
90430-12031 |
from US $0.88 |
||
|
15301
|
15301
15301-15051 Gage Sub-Assy, Oil Level[02.1994 - 08.1996] 4AFE,5AFE..AT190,192 |
15301-15051 |
from US $10.55 |
||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $1.92 |
||
| replacement | |||||
|
9011906727
|
9011906727
90080-11177 New Genuine Part |
90080-11177 |
US $2.13 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
