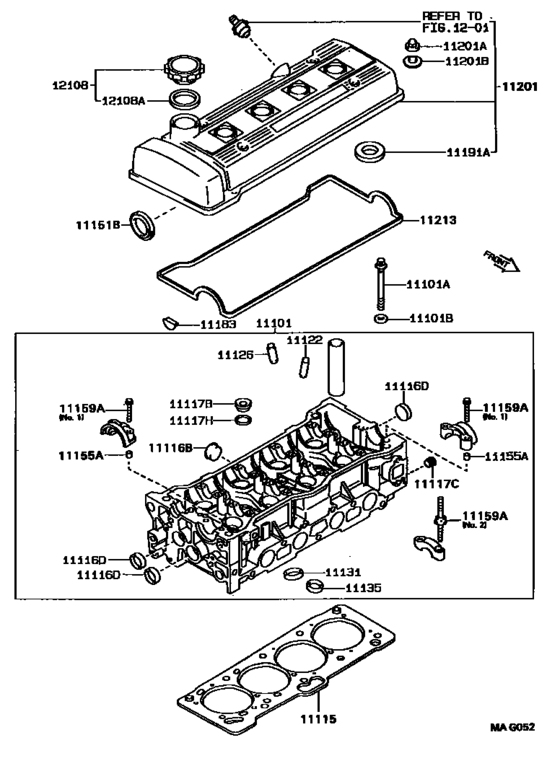

Cylinder Head ([08.1992 - ] (9208- )4AFE,5AFE,7AFE) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-19465 Head Sub-Assy, Cylinder[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
11101-19465 |
US $1,659.84 |
||
|
11101A
|
11101A
90109-10058
Bolt(For Cylinder Head Set)
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# INTAKE |
90109-10058 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02120 Bolt(For Cylinder Head Set)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# INTAKE |
90910-02120 |
from US $3.80 |
||
|
11101A
|
11101A
90109-10059
Bolt(For Cylinder Head Set)
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# EXHAUST |
90109-10059 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02121 Bolt(For Cylinder Head Set)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# EXHAUST |
90910-02121 |
from US $4.15 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90201-10344 |
US $1.76 |
||
|
11115
|
11115
11115-16150 Gasket, Cylinder Head[09.1993 - 08.1996] 4AFE..AT190 |
11115-16150 |
from US $47.48 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
96411-42500 |
from US $2.95 |
||
|
11116D
|
11116D
96411-42800 Plug, Tight, No.1[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
96411-42800 |
from US $2.91 |
||
|
11117B
|
11117B
90341-20002 Plug, W/head Taper Screw, No.1[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90341-20002 |
from US $2.88 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90430-20004 |
from US $1.01 |
||
|
11122
|
11122
11122-15030 Bush, Intake Valve Guide[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ＳＴＤ |
11122-15030 |
from US $9.73 |
||
|
11122
|
11122
11123-15030 Bush, Intake Valve Guide[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# Ｏ／Ｓ ０．０５ |
11123-15030 |
US $11.07 |
||
|
11126
|
11126
11122-15030 Bush, Intake Valve Guide[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ＳＴＤ |
11122-15030 |
from US $9.73 |
||
|
11126
|
11126
11123-15030 Bush, Intake Valve Guide[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# Ｏ／Ｓ ０．０５ |
11123-15030 |
US $11.07 |
||
|
11131
|
11131
11131-16040
Seat, Intake Valve
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ＳＴＤ |
11131-16040 |
— | ||
|
11131
|
11131
11132-16040 Seat, Intake Valve[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# Ｏ／Ｓ ０．０３ |
11132-16040 |
US $16.60 |
||
|
11135
|
11135
11135-15030 Seat, Exhaust Valve[08.1994 - 08.1996] 4AFE,5AFE,7AFE..AT19# ＳＴＤ |
11135-15030 |
US $19.04 |
||
|
11135
|
11135
11136-15030 Seat, Exhaust Valve[08.1994 - 08.1996] 4AFE,5AFE,7AFE..AT19# Ｏ／Ｓ ０．０３ |
11136-15030 |
US $14.85 |
||
|
11151B
|
11151B
90311-35013
Seal, Oil(For Camshaft Setting)
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90311-35013 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90311-35040 |
from US $5.60 |
||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90253-09001 |
from US $1.33 |
||
|
11159A
|
11159A
90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ＮＯ．１ |
90109-06080 |
from US $1.19 |
||
|
11159A
|
11159A
90109-06222 Bolt(For Head To Camshaft Bearing Cap)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# ＮＯ．２ |
90109-06222 |
from US $1.19 |
||
|
11183
|
11183
11183-15020 Plug, Semicircular[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
11183-15020 |
US $10.08 |
||
|
11191A
|
11191A
11193-15010 Gasket(For Spark Plug Tube)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
11193-15010 |
from US $8.27 |
||
|
11201
|
11201
11210-15071
Cover Sub-Assy, Cylinder Head
[11.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
11210-15071 |
— | ||
|
11201A
|
11201A
90176-06028 Nut, Cap(For Cylinder Head Cover)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90176-06028 |
from US $1.09 |
||
|
11201B
|
11201B
90210-06010 Washer, Seal(For Cylinder Head Cover)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90210-06010 |
from US $0.94 |
||
|
11213
|
11213
11213-15070
Gasket, Cylinder Head Cover
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
11213-15070 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-15071 Gasket, Cylinder Head Cover[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
11213-15071 |
from US $16.11 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[12.1993 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 2C..CT19#; 3SFE,4SFE..ST19# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19#; 2C..CT19#; 3SFE,4SFE..ST19# |
90430-37140 |
from US $1.25 |
||
