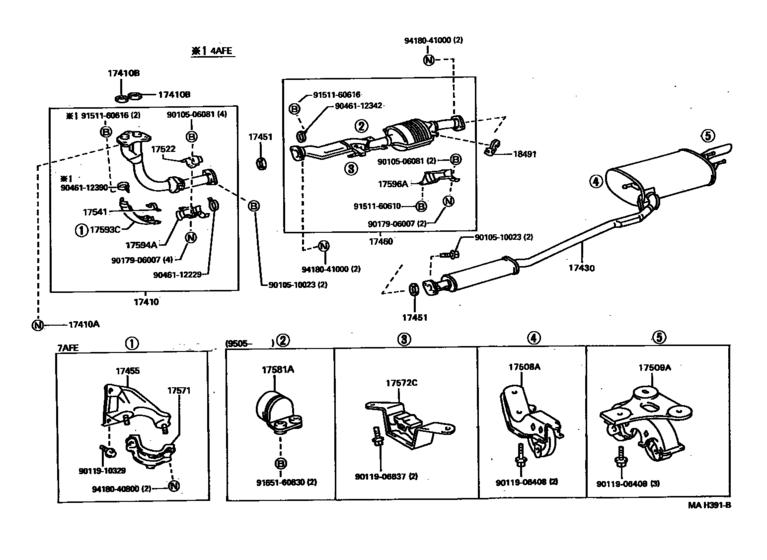

Exhaust Pipe ([08.1994 - ] (9408- )4AFE,7AFE) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-16840 Pipe Assy, Exhaust, Front[08.1994 - 08.1996] 4AFE..AT190 |
17410-16840 |
US $262.08 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1994 - 08.1996] 4AFE,7AFE,3SFE..AT190,191,ST195 |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1994 - 08.1996] 4AFE,7AFE,3SFE..AT190,191,ST195 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06064 Gasket, Exhaust Pipe[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
90917-06064 |
from US $5.25 |
||
|
17430
|
17430
17430-1A500 Pipe Assy, Exhaust, Tail[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
17430-1A500 |
US $547.46 |
||
|
17451
|
17451
90917-06046 Gasket, Exhaust Pipe[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
90917-06046 |
from US $9.28 |
||
|
17460
|
17460
17460-16081 Converter Assy, Catalytic W/pipe[08.1994 - 05.1995] 4AFE,7AFE..AT190,191 |
17460-16081 |
US $1,790.88 |
||
| replacement | |||||
|
17460
|
17460
17460-16082 Converter Assy, Catalytic W/pipe[08.1994 - 05.1995] 4AFE,7AFE..AT190,191 |
17460-16082 |
US $1,790.88 |
||
|
17460
|
17460
17460-16082 Converter Assy, Catalytic W/pipe[05.1995 - 08.1996] 4AFE,7AFE..AT190,191 |
17460-16082 |
US $1,790.88 |
||
|
17508A
|
17508A
17508-74030
Bracket Sub-Assy, Exhaust Pipe No.3 Support
[08.1992 - 08.1996] 4AFE,5AFE,7AFE,2C,4SFE..AT19#,CT190,ST190 |
17508-74030 |
— | ||
|
17509A
|
17509A
17509-74110
Bracket Sub-Assy, Exhaust Pipe No.4 Support
[08.1992 - 08.1996] 4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19# |
17509-74110 |
— | ||
|
17522
|
17522
17522-16200 Protector, Exhaust Pipe, Upper No.2[08.1994 - 08.1996] 4AFE..AT190 |
17522-16200 |
US $11.65 |
||
|
17541
|
17541
17541-74080 Stay, Exhust Pipe Protector, No.1[08.1994 - 08.1996] 4AFE..AT190 |
17541-74080 |
US $13.40 |
||
|
17572C
|
17572C
17571-74430 Bracket, Exhaust Pipe Front (For Front)[08.1994 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
17571-74430 |
US $14.41 |
||
|
17581A
|
17581A
17581-16020 Damper, Exhaust Pipe[05.1995 - 08.1996] 4AFE,7AFE..AT190,191 |
17581-16020 |
US $32.03 |
||
| replacement | |||||
|
17581A
|
17581A
17581-16030 Damper, Exhaust Pipe[05.1995 - 08.1996] 4AFE,7AFE..AT190,191 |
17581-16030 |
US $20.68 |
||
|
17593C
|
17593C
17593-16320 Protector, Exhaust Pipe, Lower No.1[08.1994 - 08.1996] 4AFE..AT190 |
17593-16320 |
US $24.61 |
||
|
17594A
|
17594A
17594-16250 Protector, Exhaust Pipe, Lower No.2[08.1994 - 08.1996] 4AFE..AT190 |
17594-16250 |
US $16.45 |
||
|
17596A
|
17596A
17596-74060 Protector, Exhaust Pipe, Lower No.4[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
17596-74060 |
US $38.29 |
||
|
18491
|
18491
18491-74020 Flange, Thermosensor Inlet[08.1994 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
18491-74020 |
US $6.84 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9011906408
|
9011906408
90119-06408 New Genuine Part |
90119-06408 |
US $1.92 |
||
|
9011906637
|
9011906637
90119-06637 Bolt(For Cylinder Head Cover) |
90119-06637 |
from US $1.05 |
||
|
9011910329
|
9011910329
90119-10329 New Genuine Part |
90119-10329 |
US $1.60 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046112229
|
9046112229
90461-12229 Clamp |
90461-12229 |
US $6.08 |
||
|
9046112342
|
9046112342
90461-12342 New Genuine Part |
90461-12342 |
US $6.12 |
||
|
9046112390
|
9046112390
90461-12390
New Genuine Part
|
90461-12390 |
— | ||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $1.76 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.44 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.54 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.60 |
||
