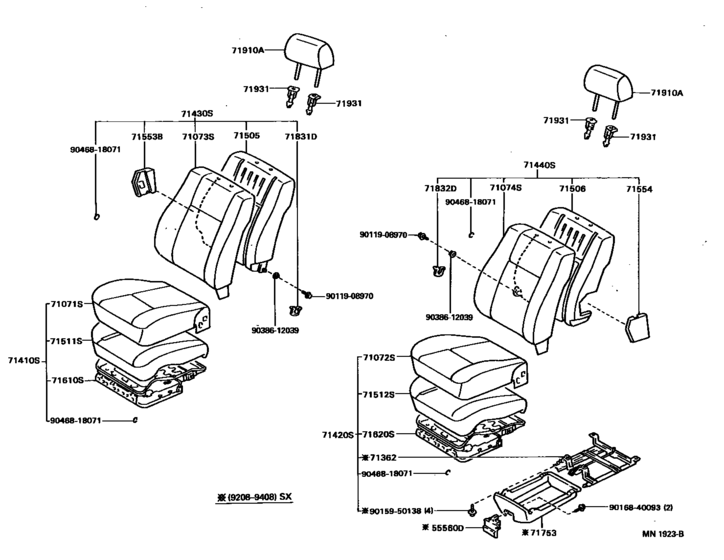

Front Seat & Seat Track ([08.1994 - ] (9208- )SG,SGI,SX ; (9408- )SXI) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-2G321-B3 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI SHADOW GRAY,TRIM1# |
71071-2G321-B3 |
US $417.87 |
||
|
71071S
|
71071S
71071-2G321-E2 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ANTELOPE,TRIM4# |
71071-2G321-E2 |
US $417.87 |
||
|
71071S
|
71071S
71071-2H030-B0 Cover, Front Seat Cushion, Rh(For Separate Type)[04.1996 - 08.1996] AT19#..SX,SXI ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
71071-2H030-B0 |
US $417.87 |
||
|
71072S
|
71072S
71072-2D691-B3 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI SHADOW GRAY,TRIM1# |
71072-2D691-B3 |
US $417.87 |
||
|
71072S
|
71072S
71072-2D691-E2 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ANTELOPE,TRIM4# |
71072-2D691-E2 |
US $417.87 |
||
|
71072S
|
71072S
71072-2G360-B0 Cover, Front Seat Cushion, Lh(For Separate Type)[04.1996 - 08.1996] AT19#..SX,SXI ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
71072-2G360-B0 |
US $417.87 |
||
|
71073S
|
71073S
71073-2G161-B4 Cover, Front Seat Back, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI SHADOW GRAY,TRIM1# |
71073-2G161-B4 |
US $595.50 |
||
|
71073S
|
71073S
71073-2G161-E3 Cover, Front Seat Back, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ANTELOPE,TRIM4# |
71073-2G161-E3 |
US $595.50 |
||
|
71073S
|
71073S
71073-2H010-B0 Cover, Front Seat Back, Rh(For Separate Type)[04.1996 - 08.1996] AT19#..SX,SXI ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
71073-2H010-B0 |
US $595.50 |
||
|
71074S
|
71074S
71074-2D661-B4 Cover, Front Seat Back, Lh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI SHADOW GRAY,TRIM1# |
71074-2D661-B4 |
US $595.50 |
||
|
71074S
|
71074S
71074-2D661-E3 Cover, Front Seat Back, Lh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ANTELOPE,TRIM4# |
71074-2D661-E3 |
US $595.50 |
||
|
71074S
|
71074S
71074-2G190-B0 Cover, Front Seat Back, Lh(For Separate Type)[04.1996 - 08.1996] AT19#..SX,SXI ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,GRAY,TRIM1# |
71074-2G190-B0 |
US $595.50 |
||
|
71410S
|
71410S
71410-2G881-B1 Cushion Assy, Front Seat, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ***,SHADOW GRAY,TRIM1# |
71410-2G881-B1 |
US $895.44 |
||
|
71410S
|
71410S
71410-2G881-E2 Cushion Assy, Front Seat, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ***,ANTELOPE,TRIM4# |
71410-2G881-E2 |
US $895.44 |
||
|
71410S
|
71410S
71410-2H430-B0 Cushion Assy, Front Seat, Rh(For Separate Type)[04.1996 - 08.1996] AT19#..SX,SXI ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
71410-2H430-B0 |
US $895.44 |
||
|
71420S
|
71420S
71420-2G501-B1 Cushion Assy, Front Seat, Lh (For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ***,SHADOW GRAY,TRIM1# |
71420-2G501-B1 |
US $895.44 |
||
|
71420S
|
71420S
71420-2G501-E2 Cushion Assy, Front Seat, Lh (For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ***,ANTELOPE,TRIM4# |
71420-2G501-E2 |
US $895.44 |
||
|
71420S
|
71420S
71420-2H100-B0 Cushion Assy, Front Seat, Lh (For Separate Type)[04.1996 - 08.1996] AT19#..SX,SXI ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
71420-2H100-B0 |
US $895.44 |
||
|
71430S
|
71430S
71430-2G711-B1 Back Assy, Front Seat, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ***,SHADOW GRAY,TRIM1# |
71430-2G711-B1 |
US $1,166.26 |
||
|
71430S
|
71430S
71430-2G711-E2 Back Assy, Front Seat, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ***,ANTELOPE,TRIM4# |
71430-2G711-E2 |
US $1,166.26 |
||
|
71430S
|
71430S
71430-2H400-B0 Back Assy, Front Seat, Rh(For Separate Type)[04.1996 - 08.1996] AT19#..SX,SXI ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
71430-2H400-B0 |
US $1,166.26 |
||
|
71440S
|
71440S
71440-2G341-B1 Back Assy, Front Seat, Lh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ***,SHADOW GRAY,TRIM1# |
71440-2G341-B1 |
US $1,166.26 |
||
|
71440S
|
71440S
71440-2G341-E2 Back Assy, Front Seat, Lh(For Separate Type)[08.1994 - 08.1996] AT19#,ST195..SX,SXI ***,ANTELOPE,TRIM4# |
71440-2G341-E2 |
US $1,166.26 |
||
|
71440S
|
71440S
71440-2G730-B0 Back Assy, Front Seat, Lh(For Separate Type)[04.1996 - 08.1996] AT19#..SX,SXI ***,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,SHADOW GRAY,TRIM1# |
71440-2G730-B0 |
US $1,166.26 |
||
|
71505
|
71505
71505-20260 Pad Sub-Assy, Front Seat Back W/frame, Rh[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
71505-20260 |
US $407.68 |
||
|
71506
|
71506
71506-20210 Pad Sub-Assy, Front Seat Back W/frame, Lh[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
71506-20210 |
US $407.68 |
||
|
71511S
|
71511S
71511-20610 Pad, Front Seat Cushion, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,CT19#,ST195..SG,SGI,SX,SXI |
71511-20610 |
US $163.07 |
||
|
71512S
|
71512S
71511-20610 Pad, Front Seat Cushion, Rh(For Separate Type)[08.1994 - 08.1996] AT19#,CT19#,ST195..SG,SGI,SX,SXI |
71511-20610 |
US $163.07 |
||
|
71553B
|
71553B
71553-20290 Pad, Front Seat Back, B[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
71553-20290 |
US $11.50 |
||
|
71554
|
71554
71554-20240 Pad, Front Seat Back, C[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
71554-20240 |
US $11.50 |
||
|
71610S
|
71610S
71610-20490 Spring Assy, Front Seat Cushion, Rh(For Separate Type)[08.1992 - 08.1996] ST190..SE,SL,SX;AT19#,CT19#,ST195 |
71610-20490 |
US $292.66 |
||
|
71620S
|
71620S
71620-20290 Spring Assy, Front Seat Cushion, Lh(For Separate Type)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
71620-20290 |
US $292.66 |
||
|
71831D
|
71831D
71831-16010 Cover, Front Seat Hinge, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
71831-16010 |
US $2.77 |
||
|
71832D
|
71832D
71831-16010 Cover, Front Seat Hinge, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
71831-16010 |
US $2.77 |
||
|
71910A
|
71910A
71910-2B631-B1 Headrest Assy, Front Seat[08.1994 - 08.1996] AT19#,ST195..SX,SXI SHADOW GRAY,TRIM1# |
71910-2B631-B1 |
US $368.37 |
||
|
71910A
|
71910A
71910-2B631-E1 Headrest Assy, Front Seat[08.1994 - 08.1996] AT19#,ST195..SX,SXI ANTELOPE,TRIM4# |
71910-2B631-E1 |
US $368.37 |
||
|
71931
|
71931
71930-10070-E9 Support, Front Seat Headrest[08.1994 - 11.1994] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ロック付,ANTELOPE,TRIM4# |
71930-10070-E9 |
US $16.60 |
||
| replacement | |||||
|
71931
|
71931
71930-32020-P4 Support, Rear Seat HeadrestFRONT SEAT HEADREST [08.1994 - 11.1994] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ロック付,ANTELOPE,TRIM4# |
71930-32020-P4 |
US $17.47 |
||
|
71931
|
71931
71930-10070-P0 Support, Front Seat Headrest[08.1993 - 11.1994] AT19#,CT19#,ST19# ロック付,SHADOW GRAY,TRIM1# |
71930-10070-P0 |
US $16.60 |
||
| replacement | |||||
|
71931
|
71931
71930-10070-22 Support, Front Seat Headrest[08.1993 - 11.1994] AT19#,CT19#,ST19# ロック付,SHADOW GRAY,TRIM1# |
71930-10070-22 |
US $16.60 |
||
|
71931
|
71931
71930-32020-B0
Support, Front Seat Headrest
[11.1994 - 08.1996] AT19#,CT19#,ST195 ロック付,SHADOW GRAY,TRIM1# |
71930-32020-B0 |
— | ||
| replacement | |||||
|
71931
|
71931
71930-32020-P4 Support, Rear Seat HeadrestFRONT SEAT HEADREST [11.1994 - 08.1996] AT19#,CT19#,ST195 ロック付,SHADOW GRAY,TRIM1# |
71930-32020-P4 |
US $17.47 |
||
|
71931
|
71931
71930-32020-E5 Support, Front Seat Headrest[11.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ロック付,ANTELOPE,TRIM4# |
71930-32020-E5 |
US $16.89 |
||
| replacement | |||||
|
71931
|
71931
71930-32020-P4 Support, Rear Seat HeadrestFRONT SEAT HEADREST [11.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ロック付,ANTELOPE,TRIM4# |
71930-32020-P4 |
US $17.47 |
||
|
71931
|
71931
71931-20090-B0 Support, Front Seat Headrest[08.1993 - 11.1994] AT19#,CT19#,ST19# ロック無,SHADOW GRAY,TRIM1# |
71931-20090-B0 |
US $13.54 |
||
|
71931
|
71931
71931-20090-E1 Support, Front Seat Headrest[08.1994 - 11.1994] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ロック無,ANTELOPE,TRIM4# |
71931-20090-E1 |
US $13.54 |
||
| replacement | |||||
|
71931
|
71931
71931-32020-E5 Support, Front Seat Headrest[08.1994 - 11.1994] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ロック無,ANTELOPE,TRIM4# |
71931-32020-E5 |
US $12.38 |
||
|
71931
|
71931
71931-32020-B0 Support, Front Seat Headrest[11.1994 - 08.1996] AT19#,CT19#,ST195 ロック無,SHADOW GRAY,TRIM1# |
71931-32020-B0 |
US $12.38 |
||
| replacement | |||||
|
71931
|
71931
71931-32020-C0 Support, Front Seat Headrest[11.1994 - 08.1996] AT19#,CT19#,ST195 ロック無,SHADOW GRAY,TRIM1# |
71931-32020-C0 |
US $12.23 |
||
|
71931
|
71931
71931-32020-E5 Support, Front Seat Headrest[11.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ロック無,ANTELOPE,TRIM4# |
71931-32020-E5 |
US $12.38 |
||
|
9011908970
|
9011908970
90119-08970 New Genuine Part |
90119-08970 |
US $1.16 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9016840093
|
9016840093
90168-40093 SCREW TAPPING |
90168-40093 |
US $0.51 |
||
|
9038612039
|
9038612039
90386-12039 New Genuine Part |
90386-12039 |
US $2.62 |
||
|
9046818071
|
9046818071
90468-18071
Clip (For Front Seat Cushion Cover)
|
90468-18071 |
— | ||
| replacement | |||||
|
9046818071
|
9046818071
90468-16019 Clip (For Rear Seat Back) |
90468-16019 |
from US $0.78 |
||
