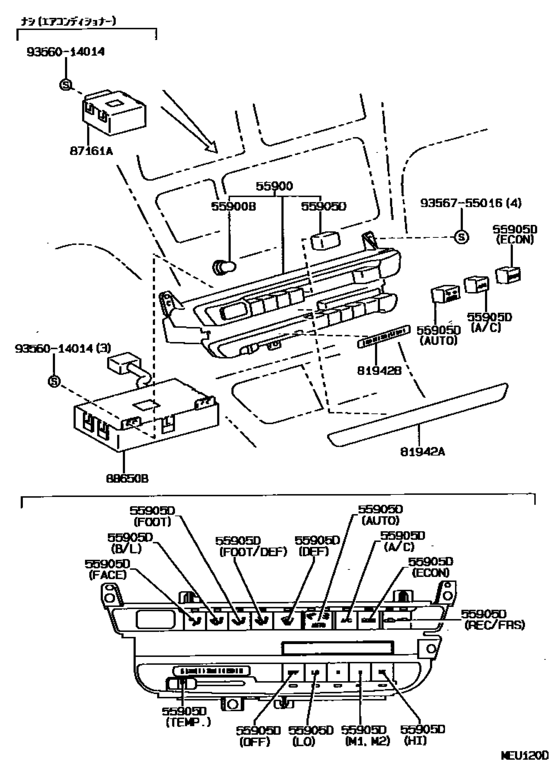

Heating & Air Conditioning - Control & Air Duct ([08.1992 - ] PUSH CONTROL TYPE (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55900
|
55900
55900-2B290
Control Assy, Air Conditioner
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI |
55900-2B290 |
— | ||
|
55900
|
55900
55900-2B300 Control Assy, Air Conditioner[08.1994 - 10.1994] AT19#,ST195..SX,SXI ﾅｼ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
55900-2B300 |
US $409.14 |
||
|
55900
|
55900
55900-2B310 Control Assy, Air Conditioner[10.1994 - 08.1996] AT190,191..SXI ﾅｼ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
55900-2B310 |
US $409.14 |
||
|
55900B
|
55900B
84999-70008 Bulb, Air Conditioner Control[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI １４Ｖ １．４Ｗ |
84999-70008 |
from US $5.24 |
||
|
55905D
|
55905D
55905-2B120
Knob Sub-Assy, Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI Ａ／Ｃ |
55905-2B120 |
— | ||
|
55905D
|
55905D
55905-2B130 Knob Sub-Assy, Control[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ECON |
55905-2B130 |
US $5.82 |
||
|
55905D
|
55905D
55905-2B140 Knob Sub-Assy, Control[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI オート |
55905-2B140 |
US $5.82 |
||
|
55905D
|
55905D
55905-2B570
Knob Sub-Assy, Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI FACE |
55905-2B570 |
— | ||
|
55905D
|
55905D
55905-2B580
Knob Sub-Assy, Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI B/L |
55905-2B580 |
— | ||
|
55905D
|
55905D
55905-2B590
Knob Sub-Assy, Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI FOOT |
55905-2B590 |
— | ||
|
55905D
|
55905D
55905-2B600 Knob Sub-Assy, Control[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI FOOT/DEF |
55905-2B600 |
US $5.82 |
||
|
55905D
|
55905D
55905-2B610
Knob Sub-Assy, Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI DEF |
55905-2B610 |
— | ||
|
55905D
|
55905D
55905-2B620 Knob Sub-Assy, Control[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI REC/FRS |
55905-2B620 |
US $5.82 |
||
|
55905D
|
55905D
55905-2B630
Knob Sub-Assy, Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ＯＦＦ |
55905-2B630 |
— | ||
|
55905D
|
55905D
55905-2B640
Knob Sub-Assy, Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI LO |
55905-2B640 |
— | ||
|
55905D
|
55905D
55905-2B650 Knob Sub-Assy, Control[08.1994 - 08.1996] AT19#,ST195..SX,SXI ﾅｼ(ｴｱｺﾝﾃﾞｲｼﾖﾅ),M1,M2 |
55905-2B650 |
US $5.82 |
||
|
55905D
|
55905D
55905-2B660
Knob Sub-Assy, Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI HI |
55905-2B660 |
— | ||
|
55905D
|
55905D
55905-2B670 Knob Sub-Assy, Control[08.1994 - 08.1996] AT19#,ST195..SX,SXI ﾅｼ(ｴｱｺﾝﾃﾞｲｼﾖﾅ),AUTO PLUG HOLE |
55905-2B670 |
US $5.82 |
||
|
55905D
|
55905D
55905-2B680 Knob Sub-Assy, Control[08.1994 - 08.1996] AT19#,ST195..SX,SXI ﾅｼ(ｴｱｺﾝﾃﾞｲｼﾖﾅ),A/C,ECON PLUG HOLE |
55905-2B680 |
US $7.43 |
||
|
55905D
|
55905D
55905-2B690
Knob Sub-Assy, Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ＴＥＭＰ |
55905-2B690 |
— | ||
|
81942A
|
81942A
81942-20450
Sheet, Heater Control Name, No.1
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
81942-20450 |
— | ||
|
81942B
|
81942B
81942-20460
Sheet, Heater Control Name, No.1
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
81942-20460 |
— | ||
|
81942B
|
81942B
81942-20490 Sheet, Heater Control Name, No.2[08.1994 - 08.1996] AT19#,ST195..SX,SXI ﾅｼ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
81942-20490 |
US $2.33 |
||
|
87161A
|
87161A
87161-20051
Amplifier, Heater Servo Motor
[08.1994 - 08.1996] AT19#,ST195..SX,SXI |
87161-20051 |
— | ||
|
88650B
|
88650B
88650-2B380
Amplifier Assy, Cooler Stabilizer
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI |
88650-2B380 |
— | ||
|
9356014014
|
9356014014
93560-14014 SCREW |
93560-14014 |
from US $0.96 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
