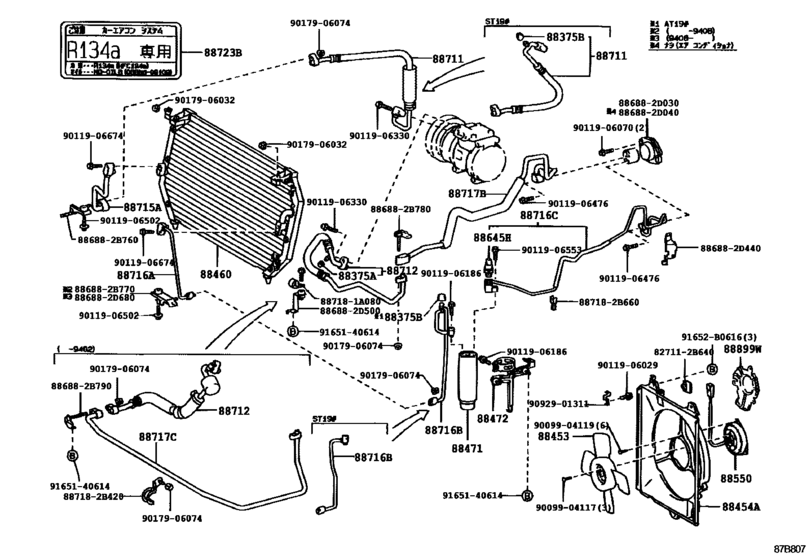

Heating & Air Conditioning - Cooler Piping ([07.1993 - ] MAKER OPTION (9307- )AT19#,ST19#) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88375A
|
88375A
88375-30290 Cap, Service Valve (For Cooler Pipe)[02.1994 - 08.1996] AT19#,CT19#,ST19# |
88375-30290 |
from US $0.94 |
||
|
88375B
|
88375B
88375-30280 Cap, Service Valve (For Cooler Pipe)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88375-30280 |
from US $0.98 |
||
|
88453
|
88453
88453-20080 Fan, Rh[08.1992 - 08.1996] CT190..MTM;AT19#,ST19# |
88453-20080 |
from US $63.25 |
||
|
88454A
|
88454A
88454-20020
Shroud, Fan
[08.1992 - 08.1996] AT19#,ST19# |
88454-20020 |
— | ||
|
88460
|
88460
88460-20370 Condenser Assy, Cooler[08.1992 - 08.1996] AT19#,ST19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88460-20370 |
US $531.44 |
||
|
88471
|
88471
88471-20050
Receiver & Dryer Assy, Cooler
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88471-20050 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88471-34010 |
from US $55.48 |
||
|
88472
|
88472
88472-20160
Bracket, Receiver Tank, No.1
[08.1992 - 08.1996] AT19# |
88472-20160 |
— | ||
|
88550
|
88550
16363-46030 Motor, Cooling Fan[09.1994 - 08.1996] AT19#,ST195 |
16363-46030 |
US $382.93 |
||
|
88550
|
88550
88550-12130
Motor, Cooling Fan
[08.1992 - 09.1994] AT19#,ST19# |
88550-12130 |
— | ||
|
88645H
|
88645H
88645-20050 Switch, Pressure[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88645-20050 |
US $159.08 |
||
|
88711
|
88711
88711-20861 Hose, Cooler Refrigerant Discharge, No.1[02.1994 - 08.1996] AT190 |
88711-20861 |
US $164.53 |
||
|
88712
|
88712
88712-2B780 Hose, Cooler Refrigerant Suction, No.1[02.1994 - 08.1996] AT19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88712-2B780 |
US $218.40 |
||
|
88715A
|
88715A
88715-20120 Pipe, Cooler Refrigerant Discharge, A[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88715-20120 |
US $63.92 |
||
| replacement | |||||
|
88715A
|
88715A
88715-20170 Pipe, Cooler Refrigerant Discharge, A[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88715-20170 |
from US $58.68 |
||
|
88716A
|
88716A
88716-2D140 Pipe, Cooler Refrigerant Liquid, A[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88716-2D140 |
US $53.87 |
||
|
88716B
|
88716B
88716-2D181 Pipe, Cooler Refrigerant Liquid, B[02.1994 - 08.1996] AT19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88716-2D181 |
US $72.07 |
||
|
88716C
|
88716C
88710-20370 Pipe, Cooler Refrigerant Liquid, C[08.1994 - 08.1996] AT19#..SG,SGI ｱﾘ(*66); ST195;AT19#..SEEXT,SL,SX,SXI ｱﾘ(*66) |
88710-20370 |
US $251.89 |
||
| replacements | |||||
|
88716C
|
88716C
88645-20050 Switch, Pressure[08.1994 - 08.1996] AT19#..SG,SGI ｱﾘ(*66); ST195;AT19#..SEEXT,SL,SX,SXI ｱﾘ(*66) |
88645-20050 |
US $159.08 |
||
|
88716C
|
88716C
88716-2D090 Pipe, Cooler Refrigerant Liquid, C[08.1994 - 08.1996] AT19#..SG,SGI ｱﾘ(*66); ST195;AT19#..SEEXT,SL,SX,SXI ｱﾘ(*66) |
88716-2D090 |
US $88.82 |
||
|
88716C
|
88716C
88716-2D220 Pipe, Cooler Refrigerant Liquid, C[07.1993 - 08.1996] AT19#,ST19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88716-2D220 |
US $291.20 |
||
|
88717B
|
88717B
88717-2B160 Pipe, Cooler Refrigerant Suction, B[08.1994 - 08.1996] AT19#..SG,SGI ｱﾘ(*66); ST195;AT19#..SEEXT,SL,SX,SXI ｱﾘ(*66) |
88717-2B160 |
US $264.99 |
||
|
88717B
|
88717B
88717-2B450 Pipe, Cooler Refrigerant Suction, A[07.1993 - 08.1996] AT19#,ST19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88717-2B450 |
US $171.81 |
||
|
88723B
|
88723B
88723-20030 Plate, Caution, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88723-20030 |
US $4.19 |
||
| replacement | |||||
|
88723B
|
88723B
88733-30040
Label, Cooler Service Caution
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88733-30040 |
— | ||
|
88899W
|
88899W
88899-20270
Support Sub-Assy, B
[08.1992 - 08.1996] AT19#,ST19# |
88899-20270 |
— | ||
|
91652B0616
|
91652B0616
91652-B0616 New Genuine Part |
91652-B0616 |
US $1.46 |
||
| replacement | |||||
|
91652B0616
|
91652B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.76 |
||
|
886882B760
|
886882B760
88688-2B760
Bracket, Cooler Diaphragm
|
88688-2B760 |
— | ||
| replacements | |||||
|
886882B760
|
886882B760
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
886882B760
|
886882B760
88688-2D060
Bracket, Cooler Diaphragm
|
88688-2D060 |
— | ||
|
886882B760
|
886882B760
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
886882B770
|
886882B770
88688-2B770
Bracket, Cooler Diaphragm
|
88688-2B770 |
— | ||
|
886882B780
|
886882B780
88688-2B780
Bracket, Cooler Diaphragm
|
88688-2B780 |
— | ||
|
886882B790
|
886882B790
88688-2B790
Bracket, Cooler Diaphragm
|
88688-2B790 |
— | ||
| replacement | |||||
|
886882B790
|
886882B790
88688-2B791
Bracket, Cooler Diaphragm
|
88688-2B791 |
— | ||
|
886882D030
|
886882D030
88688-2D030
Bracket, Cooler Diaphragm
|
88688-2D030 |
— | ||
|
886882D040
|
886882D040
88688-2D040
Bracket, Cooler Diaphragm
|
88688-2D040 |
— | ||
|
886882D440
|
886882D440
88688-2D440
Bracket, Cooler Diaphragm
|
88688-2D440 |
— | ||
|
886882D500
|
886882D500
88688-2D500
Bracket, Cooler Diaphragm
|
88688-2D500 |
— | ||
|
886882D680
|
886882D680
88688-2D680
Bracket, Cooler Diaphragm
|
88688-2D680 |
— | ||
|
887181A080
|
887181A080
88718-1A080
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A080 |
— | ||
|
887182B420
|
887182B420
88718-2B420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2B420 |
— | ||
|
887182B660
|
887182B660
88718-2B660
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2B660 |
— | ||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
US $0.70 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.70 |
||
|
9011906029
|
9011906029
90119-06029
New Genuine Part
|
90119-06029 |
— | ||
| replacement | |||||
|
9011906029
|
9011906029
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.28 |
||
|
9011906070
|
9011906070
90119-06070
BOLT
|
90119-06070 |
— | ||
| replacement | |||||
|
9011906070
|
9011906070
90119-06442 BOLT WWASHER |
90119-06442 |
from US $1.01 |
||
|
9011906186
|
9011906186
90119-06186
BOLT
|
90119-06186 |
— | ||
| replacement | |||||
|
9011906186
|
9011906186
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.46 |
||
|
9011906330
|
9011906330
90119-06330 Bolt |
90119-06330 |
US $1.28 |
||
|
9011906476
|
9011906476
90119-06476 New Genuine Part |
90119-06476 |
US $1.89 |
||
| replacement | |||||
|
9011906476
|
9011906476
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9011906502
|
9011906502
90119-06502
New Genuine Part
|
90119-06502 |
— | ||
| replacement | |||||
|
9011906502
|
9011906502
90119-06330 Bolt |
90119-06330 |
US $1.28 |
||
|
9011906553
|
9011906553
90119-06553
New Genuine Part
|
90119-06553 |
— | ||
| replacement | |||||
|
9011906553
|
9011906553
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.28 |
||
|
9011906674
|
9011906674
90119-06674
New Genuine Part
|
90119-06674 |
— | ||
| replacement | |||||
|
9011906674
|
9011906674
91651-G0645 New Genuine Part |
91651-G0645 |
US $1.05 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.44 |
||
|
9092901311
|
9092901311
90929-01311 New Genuine Part |
90929-01311 |
US $2.33 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
