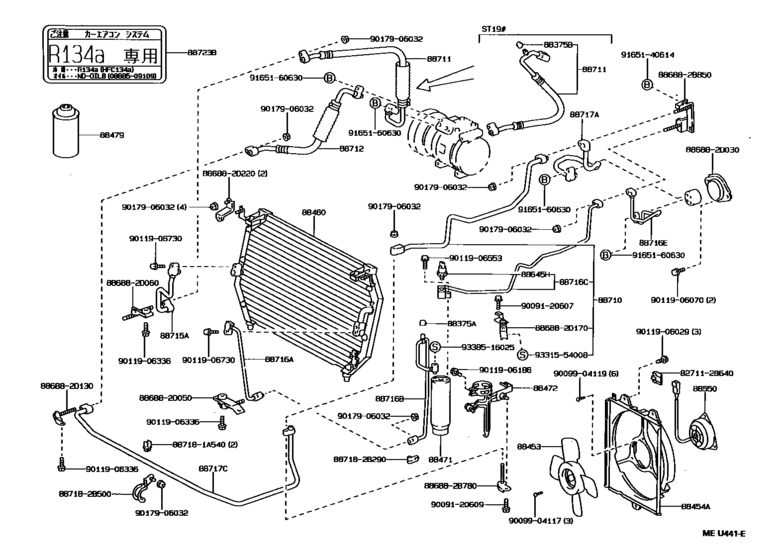

Heating & Air Conditioning - Cooler Piping ([08.1992 - ] DEALER OPTION (9208- )AT19#,ST19#) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88375A
|
88375A
88375-30290 Cap, Service Valve (For Cooler Pipe)[02.1994 - 08.1996] AT19#,CT19#,ST19# |
88375-30290 |
from US $0.94 |
||
|
88375B
|
88375B
88375-30280 Cap, Service Valve (For Cooler Pipe)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88375-30280 |
from US $0.98 |
||
|
88453
|
88453
88453-20080 Fan, Rh[08.1992 - 08.1996] CT190..MTM;AT19#,ST19# |
88453-20080 |
from US $63.25 |
||
|
88454A
|
88454A
88454-20020
Shroud, Fan
[08.1992 - 08.1996] AT19#,ST19# |
88454-20020 |
— | ||
|
88460
|
88460
88460-20370 Condenser Assy, Cooler[08.1992 - 08.1996] AT19#,ST19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88460-20370 |
US $531.44 |
||
|
88471
|
88471
88471-20050
Receiver & Dryer Assy, Cooler
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88471-20050 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88471-34010 |
from US $55.48 |
||
|
88472
|
88472
88472-20160
Bracket, Receiver Tank, No.1
[08.1992 - 08.1996] AT19# |
88472-20160 |
— | ||
|
88550
|
88550
16363-46030 Motor, Cooling Fan[09.1994 - 08.1996] AT19#,ST195 |
16363-46030 |
US $382.93 |
||
|
88550
|
88550
88550-12130
Motor, Cooling Fan
[08.1992 - 09.1994] AT19#,ST19# |
88550-12130 |
— | ||
|
88645H
|
88645H
88645-20050 Switch, Pressure[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88645-20050 |
US $159.08 |
||
|
88710
|
88710
88710-20230 Tube Assy, Air Conditioner[08.1992 - 08.1996] AT19#,ST19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ,ｱﾘ(*66) OR ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ |
88710-20230 |
US $473.20 |
||
|
88711
|
88711
88711-20861 Hose, Cooler Refrigerant Discharge, No.1[02.1994 - 08.1996] AT190 |
88711-20861 |
US $164.53 |
||
|
88712
|
88712
88712-2B780 Hose, Cooler Refrigerant Suction, No.1[02.1994 - 08.1996] AT19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88712-2B780 |
US $218.40 |
||
|
88715A
|
88715A
88715-20120 Pipe, Cooler Refrigerant Discharge, A[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88715-20120 |
US $63.92 |
||
| replacement | |||||
|
88715A
|
88715A
88715-20170 Pipe, Cooler Refrigerant Discharge, A[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88715-20170 |
from US $58.68 |
||
|
88716A
|
88716A
88716-2D140 Pipe, Cooler Refrigerant Liquid, A[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88716-2D140 |
US $53.87 |
||
|
88716B
|
88716B
88716-2D181 Pipe, Cooler Refrigerant Liquid, B[02.1994 - 08.1996] AT19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88716-2D181 |
US $72.07 |
||
|
88716C
|
88716C
88710-20370 Pipe, Cooler Refrigerant Liquid, C[08.1994 - 08.1996] AT19#..SG,SGI ｱﾘ(*66); ST195;AT19#..SEEXT,SL,SX,SXI ｱﾘ(*66) |
88710-20370 |
US $251.89 |
||
| replacements | |||||
|
88716C
|
88716C
88645-20050 Switch, Pressure[08.1994 - 08.1996] AT19#..SG,SGI ｱﾘ(*66); ST195;AT19#..SEEXT,SL,SX,SXI ｱﾘ(*66) |
88645-20050 |
US $159.08 |
||
|
88716C
|
88716C
88716-2D090 Pipe, Cooler Refrigerant Liquid, C[08.1994 - 08.1996] AT19#..SG,SGI ｱﾘ(*66); ST195;AT19#..SEEXT,SL,SX,SXI ｱﾘ(*66) |
88716-2D090 |
US $88.82 |
||
|
88716C
|
88716C
88716-2D220 Pipe, Cooler Refrigerant Liquid, C[07.1993 - 08.1996] AT19#,ST19# ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88716-2D220 |
US $291.20 |
||
|
88716E
|
88716E
88716-2D170 Pipe, Cooler Refrigerant Liquid, E[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88716-2D170 |
US $59.26 |
||
|
88717A
|
88717A
88717-2B230 Pipe, Cooler Refrigerant Suction, A[08.1992 - 08.1996] AT19#,ST19# |
88717-2B230 |
US $173.26 |
||
|
88723B
|
88723B
88723-20030 Plate, Caution, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88723-20030 |
US $4.19 |
||
| replacement | |||||
|
88723B
|
88723B
88733-30040
Label, Cooler Service Caution
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88733-30040 |
— | ||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.76 |
||
|
886882B780
|
886882B780
88688-2B780
Bracket, Cooler Diaphragm
|
88688-2B780 |
— | ||
|
886882B850
|
886882B850
88688-2B850
Bracket, Cooler Diaphragm
|
88688-2B850 |
— | ||
|
886882D030
|
886882D030
88688-2D030
Bracket, Cooler Diaphragm
|
88688-2D030 |
— | ||
|
886882D050
|
886882D050
88688-2D050
Bracket, Cooler Diaphragm
|
88688-2D050 |
— | ||
|
886882D060
|
886882D060
88688-2D060
Bracket, Cooler Diaphragm
|
88688-2D060 |
— | ||
|
886882D130
|
886882D130
88688-2D130
Bracket, Cooler Diaphragm
|
88688-2D130 |
— | ||
|
886882D170
|
886882D170
88688-2D170
Bracket, Cooler Diaphragm
|
88688-2D170 |
— | ||
|
886882D220
|
886882D220
88688-2D220
Bracket, Cooler Diaphragm
|
88688-2D220 |
— | ||
|
887181A540
|
887181A540
88718-1A540
Clamp(For Cooler Refrigerant Hose), No.1
|
88718-1A540 |
— | ||
|
887182B290
|
887182B290
88718-2B290
Clamp(For Cooler Refrigerant Pipe), No.4
|
88718-2B290 |
— | ||
|
887182B500
|
887182B500
88718-2B500
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2B500 |
— | ||
|
9009120607
|
9009120607
90091-20607
New Genuine Part
|
90091-20607 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
US $0.70 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.68 |
||
|
9011906029
|
9011906029
90119-06029
New Genuine Part
|
90119-06029 |
— | ||
| replacement | |||||
|
9011906029
|
9011906029
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.28 |
||
|
9011906070
|
9011906070
90119-06070
BOLT
|
90119-06070 |
— | ||
| replacement | |||||
|
9011906070
|
9011906070
90119-06442 BOLT WWASHER |
90119-06442 |
from US $1.01 |
||
|
9011906186
|
9011906186
90119-06186
BOLT
|
90119-06186 |
— | ||
| replacement | |||||
|
9011906186
|
9011906186
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.38 |
||
|
9011906336
|
9011906336
90119-06336 SCREW |
90119-06336 |
US $1.28 |
||
|
9011906553
|
9011906553
90119-06553
New Genuine Part
|
90119-06553 |
— | ||
| replacement | |||||
|
9011906553
|
9011906553
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.28 |
||
|
9011906730
|
9011906730
90119-06730 New Genuine Part |
90119-06730 |
US $1.89 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160630
|
9165160630
91651-60630 New Genuine Part |
91651-60630 |
US $1.89 |
||
| replacement | |||||
|
9165160630
|
9165160630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9331554008
|
9331554008
93315-54008
New Genuine Part
|
93315-54008 |
— | ||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
