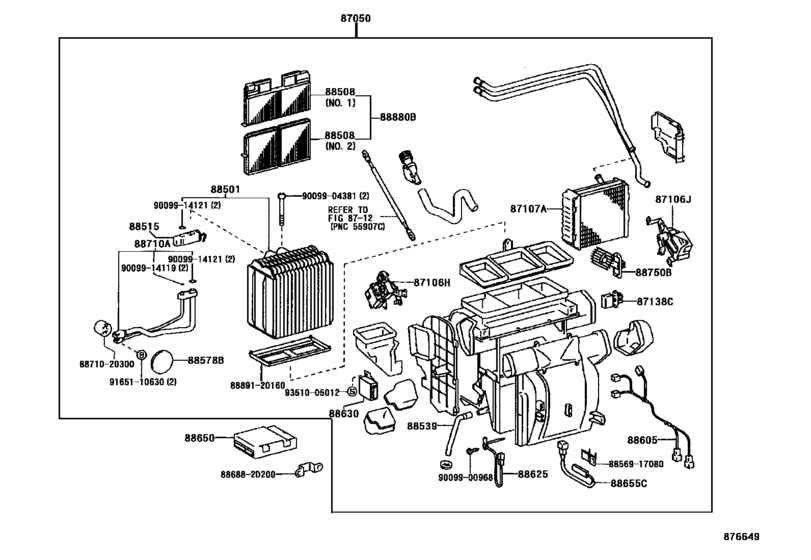

Heating & Air Conditioning - Cooler Unit ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-20330 Radiator Assy, Air Conditioner[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
87050-20330 |
US $1,688.96 |
||
|
87050
|
87050
87050-20340 Radiator Assy, Air Conditioner[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ｶﾝﾚｲﾁ ｼﾖｳ |
87050-20340 |
US $1,688.96 |
||
|
87050
|
87050
87050-20350 Radiator Assy, Air Conditioner[08.1992 - 08.1996] AT190..M;AT191,192,ST19#..SX,SXI ﾅｼ(ｴｱｺﾝ) |
87050-20350 |
US $1,688.96 |
||
|
87050
|
87050
87050-20360 Radiator Assy, Air Conditioner[08.1992 - 08.1996] AT190..M;AT191,192,ST19#..SX,SXI ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱｺﾝ) |
87050-20360 |
US $1,688.96 |
||
|
87106H
|
87106H
87106-20200
Servo Sub-Assy, Damper
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
87106-20200 |
— | ||
|
87106J
|
87106J
87106-20210
Servo Sub-Assy, Damper
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
87106-20210 |
— | ||
|
87107A
|
87107A
87107-20570
Unit Sub-Assy, Heater Radiator
[08.1992 - 08.1996] AT19#,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
87107-20570 |
— | ||
|
87107A
|
87107A
87107-20600 Unit Sub-Assy, Heater Radiator[08.1992 - 08.1996] AT19#,CT19#,ST19# |
87107-20600 |
US $499.69 |
||
|
87138C
|
87138C
87138-20230
Resistor, Blower
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
87138-20230 |
— | ||
|
87138C
|
87138C
87138-20240
Resistor, Blower
[08.1992 - 08.1996] AT19#,CT19#,ST195..SG,SGI; AT190..M;AT191,192,ST19#..SX,SXI ｶﾝﾚｲﾁ ｼﾖｳ |
87138-20240 |
— | ||
| replacement | |||||
|
87138C
|
87138C
87138-20320
Resistor, Blower
[08.1992 - 08.1996] AT19#,CT19#,ST195..SG,SGI; AT190..M;AT191,192,ST19#..SX,SXI ｶﾝﾚｲﾁ ｼﾖｳ |
87138-20320 |
— | ||
|
88501
|
88501
88501-20290
Evaporator Sub-Assy, Cooler, No.1
[08.1992 - 11.1994] AT19#,CT19#,ST19# |
88501-20290 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-20291 Evaporator Sub-Assy, Cooler, No.1[08.1992 - 11.1994] AT19#,CT19#,ST19# |
88501-20291 |
US $466.50 |
||
|
88501
|
88501
88501-20291 Evaporator Sub-Assy, Cooler, No.1[11.1994 - 08.1996] AT19#,CT19#,ST195 |
88501-20291 |
US $466.50 |
||
|
88508
|
88508
88508-20020 Filter Sub-Assy, Clean Air[08.1992 - 08.1996] AT19#,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ,ＮＯ．１ |
88508-20020 |
US $61.15 |
||
| replacement | |||||
|
88508
|
88508
88508-20060 Filter Sub-Assy, Clean Air[08.1992 - 08.1996] AT19#,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ,ＮＯ．１ |
88508-20060 |
US $22.71 |
||
|
88508
|
88508
88508-20030 Filter Sub-Assy, Clean Air[08.1992 - 08.1996] AT19#,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ,ＮＯ．２ |
88508-20030 |
US $61.15 |
||
| replacement | |||||
|
88508
|
88508
88508-20070 Filter Sub-Assy, Clean Air[08.1992 - 08.1996] AT19#,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ,ＮＯ．２ |
88508-20070 |
US $26.38 |
||
|
88515
|
88515
88515-20100
Valve, Cooler Expansion
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88515-20100 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88515-22240 |
from US $132.85 |
||
|
88539
|
88539
88539-20270
Hose, Cooler Unit Drain, No.1
[11.1993 - 08.1996] AT19#,CT19#,ST19# |
88539-20270 |
— | ||
|
88578B
|
88578B
88578-20490
Packing, Cooling Unit, No.1
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88578-20490 |
— | ||
|
88605
|
88605
88605-2D190
Harness Sub-Assy, Cooler Wiring, No.1
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
88605-2D190 |
— | ||
|
88605
|
88605
88605-2D220
Harness Sub-Assy, Cooler Wiring, No.1
[08.1992 - 08.1996] AT190..M;AT191,192,ST19#..SX,SXI ﾅｼ(ｴｱｺﾝ) |
88605-2D220 |
— | ||
|
88625
|
88625
88625-20390
Thermistor, Cooler, No.1
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
88625-20390 |
— | ||
|
88630
|
88630
88630-20260
Relay Assy, Cooler
[08.1992 - 08.1996] AT190..M;AT191,192,ST19#..SX,SXI ﾅｼ(ｴｱｺﾝ) |
88630-20260 |
— | ||
|
88655C
|
88655C
88655-20010
Switch, Water Temperature
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI ｶﾝﾚｲﾁ ｼﾖｳ |
88655-20010 |
— | ||
|
88655C
|
88655C
88655-20020
Thermo Switch Assy
[04.1993 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
88655-20020 |
— | ||
|
88710A
|
88710A
88710-20380 Tube Assy, Air Conditioner[06.1993 - 08.1996] AT19#,CT19#,ST19# |
88710-20380 |
US $163.07 |
||
|
88750B
|
88750B
88750-20020
Transistor Assy, Blower Resistor
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
88750-20020 |
— | ||
|
88880B
|
88880B
88880-20010 Filter Assy, Clean Air[08.1992 - 08.1996] AT19#,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
88880-20010 |
US $70.32 |
||
| replacement | |||||
|
88880B
|
88880B
88880-20050
Filter Assy, Clean Air
[08.1992 - 08.1996] AT19#,CT19#,ST19# ｶﾝﾚｲﾁ ｼﾖｳ |
88880-20050 |
— | ||
|
886882D200
|
886882D200
88688-2D200
Bracket, Cooler Diaphragm
|
88688-2D200 |
— | ||
|
8856917080
|
8856917080
88569-17080
Clamp (for Cooler Relay)
|
88569-17080 |
— | ||
|
8871020300
|
8871020300
88710-20300 Tube Assy, Airconditioner |
88710-20300 |
US $17.76 |
||
|
8889120160
|
8889120160
88891-20160
Cover, Cooler, No.1
|
88891-20160 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $2.18 |
||
|
9165110630
|
9165110630
91651-10630
New Genuine Part
|
91651-10630 |
— | ||
|
9351005012
|
9351005012
93510-05012
New Genuine Part
|
93510-05012 |
— | ||
| replacement | |||||
|
9351005012
|
9351005012
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
