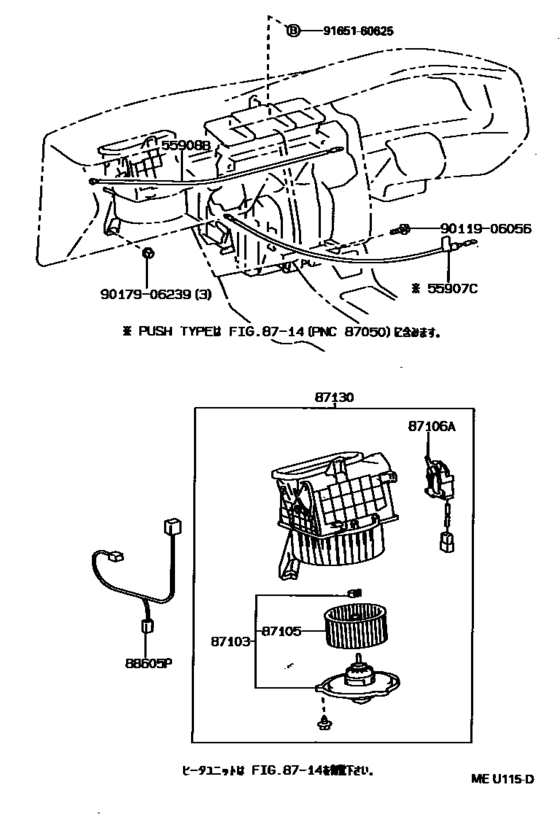

Heating & Air Conditioning - Heater Unit & Blower ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55907C
|
55907C
55907-20330
Cable Sub-Assy, Water Valve Control
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
55907-20330 |
— | ||
|
87103
|
87103
87103-20080
Motor Sub-Assy, Heater Blower, W/fan
[08.1992 - 04.1995] AT19#,CT19#,ST19# |
87103-20080 |
— | ||
| replacement | |||||
|
87103
|
87103
87103-22100
Motor Sub-Assy, Heater Blower, W/fan
[08.1992 - 04.1995] AT19#,CT19#,ST19# |
87103-22100 |
— | ||
|
87103
|
87103
87103-22100
Motor Sub-Assy, Heater Blower, W/fan
[04.1995 - 08.1996] AT19#,CT19#,ST195 |
87103-22100 |
— | ||
|
87105
|
87105
87105-33010
Fan Sub-Assy, Heater Blower
[08.1992 - 04.1995] AT19#,CT19#,ST19# |
87105-33010 |
— | ||
| replacements | |||||
|
87105
|
87105
87103-22100
Motor Sub-Assy, Heater Blower, W/fan
[08.1992 - 04.1995] AT19#,CT19#,ST19# |
87103-22100 |
— | ||
|
87105
|
87105
87103-22110
Motor Sub-Assy, Heater Blower, W/fan
[08.1992 - 04.1995] AT19#,CT19#,ST19# |
87103-22110 |
— | ||
|
87106A
|
87106A
87106-20240
Servo Sub-Assy, Damper
[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI |
87106-20240 |
— | ||
|
87130
|
87130
87130-20551
Blower Assy, Heater, Front
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI |
87130-20551 |
— | ||
|
88605P
|
88605P
88605-2D420
Harness Sub-Assy, Cooler Wiring, No.1
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI |
88605-2D420 |
— | ||
|
88605P
|
88605P
88605-2D430
Harness Sub-Assy, Cooler Wiring, No.1
[08.1994 - 08.1996] AT19#,ST195..SX,SXI ﾅｼ(ｴｱｺﾝ) |
88605-2D430 |
— | ||
|
9011906056
|
9011906056
90119-06056 New Genuine Part |
90119-06056 |
US $2.04 |
||
|
9017906239
|
9017906239
90179-06239
New Genuine Part
|
90179-06239 |
— | ||
| replacement | |||||
|
9017906239
|
9017906239
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9165160625
|
9165160625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
