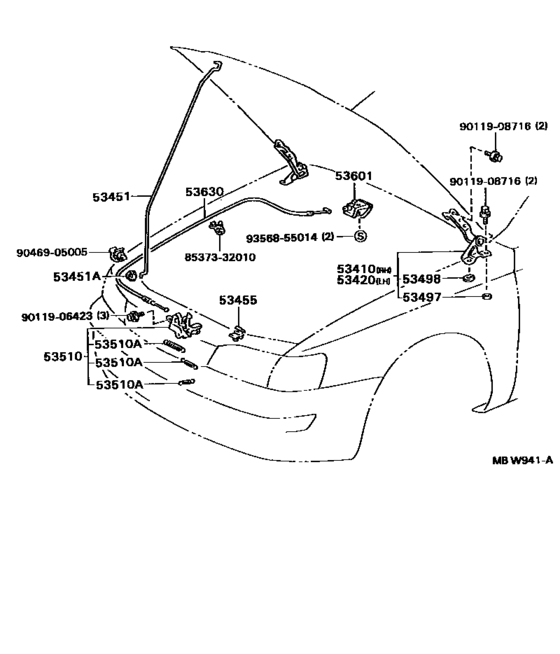

Hood Lock & Hinge ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-20190 Hinge Assy, Hood, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
53410-20190 |
US $32.47 |
||
|
53420
|
53420
53420-20180 Hinge Assy, Hood, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
53420-20180 |
US $32.47 |
||
|
53451
|
53451
53451-20140 Rod, Hood Support[08.1994 - 08.1996] AT19#,ST195 |
53451-20140 |
US $31.89 |
||
|
53451A
|
53451A
90480-15024 Grommet(For Hood Support Rod)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90480-15024 |
from US $2.30 |
||
|
53455
|
53455
53455-20040 Clamp, Hood Support Rod[08.1992 - 08.1996] AT19#,CT19#,ST19# |
53455-20040 |
from US $1.76 |
||
|
53497
|
53497
53497-12050
Pad, Hood Hinge, No.1
[08.1992 - 08.1996] AT19#,CT19#,ST19# 厚さ＝１．０ |
53497-12050 |
— | ||
| replacements | |||||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# 厚さ＝１．０ |
53497-42010 |
US $1.60 |
||
|
53497
|
53497
53497-12070 Pad, Hood Hinge, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# 厚さ＝１．０ |
53497-12070 |
US $1.60 |
||
|
53498
|
53498
53497-12050
Pad, Hood Hinge, No.1
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
53497-12050 |
— | ||
| replacements | |||||
|
53498
|
53498
53497-42010 Pad, Hood Hinge, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
53497-42010 |
US $1.60 |
||
|
53498
|
53498
53497-12070 Pad, Hood Hinge, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
53497-12070 |
US $1.60 |
||
|
53510
|
53510
53510-20430 Lock Assy, Hood[08.1992 - 08.1996] AT19#,CT19#,ST19# |
53510-20430 |
US $42.81 |
||
|
53510A
|
53510A
90506-09057 Spring, Tension(For Hood Lock)[08.1992 - 08.1996] AT19#,CT19#,ST19# 線径＝０．９，コイル巻数＝２３,WD=0.9,CW=23 |
90506-09057 |
US $1.22 |
||
|
53510A
|
53510A
90506-12067 Spring, Tension(For Hood Lock)[08.1992 - 08.1996] AT19#,CT19#,ST19# 線径＝１．４，コイル巻数＝７．２５,WD=1.4,CW=7.25 |
90506-12067 |
US $1.22 |
||
|
53510A
|
53510A
90506-20065 Spring, Tension(For Hood Lock)[08.1992 - 08.1996] AT19#,CT19#,ST19# 線径＝２．０，コイル巻数＝１６．０,WD=2.0,CW=16.0 |
90506-20065 |
US $2.48 |
||
|
53601
|
53601
53601-16020-22 Lever Sub-Assy, Hood Lock Control (black color)[02.1994 - 08.1996] AT191,ST190..SL BLACK,TRIM1#; AT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI BLACK,TRIM1#,4# |
53601-16020-22 |
from US $32.15 |
||
|
53630
|
53630
53630-20440 Cable Assy, Hood Lock Control[08.1992 - 08.1996] AT19#,CT19#,ST19# |
53630-20440 |
US $21.69 |
||
|
8537332010
|
8537332010
85373-32010 Hose, Windshield Washer (from Joint To Nozzle) |
85373-32010 |
US $2.27 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.12 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.82 |
||
|
9046905005
|
9046905005
90469-05005 CLAMP |
90469-05005 |
US $1.14 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
