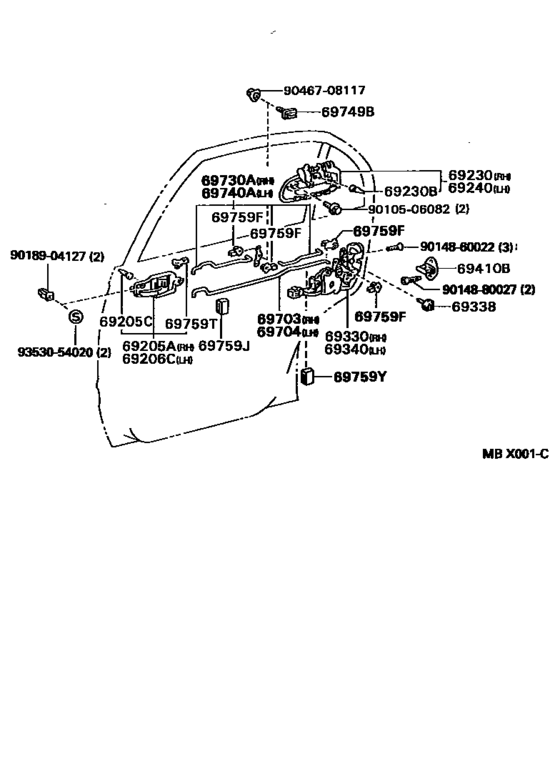

Rear Door Lock & Handle ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205A
|
69205A
69205-20120-B1 Handle Sub-Assy, Front Door Inside, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
69205-20120-B1 |
from US $24.12 |
||
|
69205A
|
69205A
69205-20120-E1
Handle Sub-Assy, Front Door Inside, Rh
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
69205-20120-E1 |
— | ||
| replacement | |||||
|
69205A
|
69205A
69205-20120-B0 Handle Sub-Assy, Front Door Inside, Rh (GRAY)[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
69205-20120-B0 |
US $26.03 |
||
|
69205C
|
69205C
90541-04014 Cushion, Console Box[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90541-04014 |
from US $0.99 |
||
|
69206C
|
69206C
69206-20120-B1 Handle Sub-Assy, Front Door Inside, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# SHADOW GRAY,TRIM1# |
69206-20120-B1 |
US $26.03 |
||
|
69206C
|
69206C
69206-20120-E1
Handle Sub-Assy, Front Door Inside, Lh
[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
69206-20120-E1 |
— | ||
| replacement | |||||
|
69206C
|
69206C
69206-20120-B0 Handle Sub-Assy, Front Door Inside, Lh (GRAY)[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI ANTELOPE,TRIM4# |
69206-20120-B0 |
US $26.03 |
||
|
69230
|
69230
69230-20220-A0 Handle Assy, Rear Door Outside, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI SUPER WHITE 2,040 |
69230-20220-A0 |
US $90.27 |
||
|
69230
|
69230
69230-20220-B0 Handle Assy, Rear Door Outside, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI DARK BLUEISH GRAY ME,183 |
69230-20220-B0 |
US $90.27 |
||
|
69230
|
69230
69230-20220-C0 Handle Assy, Rear Door Outside, Rh[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI BLACK ME,205 |
69230-20220-C0 |
US $90.27 |
||
|
69230
|
69230
69230-20220-D2 Handle Assy, Rear Door Outside, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI WINE RED MICA,3J8 |
69230-20220-D2 |
US $90.27 |
||
|
69230
|
69230
69230-20220-F0 Handle Assy, Rear Door Outside, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI PALE YELLOW OPAL,574 |
69230-20220-F0 |
US $90.27 |
||
|
69230
|
69230
69230-20220-G4 Handle Assy, Rear Door Outside, Rh[04.1996 - 08.1996] AT19#..SX,SXI DK GREEN MICA,6M1; AT19#,CT190..SG,SGI ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DK GREEN MICA,6M1 |
69230-20220-G4 |
US $90.27 |
||
|
69230
|
69230
69230-20220-J2 Handle Assy, Rear Door Outside, Rh[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI DK.BLUE MM,8G5 |
69230-20220-J2 |
US $90.27 |
||
|
69230B
|
69230B
90541-04018 Cushion(For Front Door Inside Handle)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
90541-04018 |
US $2.56 |
||
|
69240
|
69240
69240-20220-A0 Handle Assy, Rear Door Outside, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI SUPER WHITE 2,040 |
69240-20220-A0 |
US $90.27 |
||
|
69240
|
69240
69240-20220-B0 Handle Assy, Rear Door Outside, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI DARK BLUEISH GRAY ME,183 |
69240-20220-B0 |
US $90.27 |
||
|
69240
|
69240
69240-20220-C0 Handle Assy, Rear Door Outside, Lh[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI BLACK ME,205 |
69240-20220-C0 |
US $90.27 |
||
|
69240
|
69240
69240-20220-D2 Handle Assy, Rear Door Outside, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI WINE RED MICA,3J8 |
69240-20220-D2 |
US $90.27 |
||
|
69240
|
69240
69240-20220-F0 Handle Assy, Rear Door Outside, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI PALE YELLOW OPAL,574 |
69240-20220-F0 |
US $90.27 |
||
|
69240
|
69240
69240-20220-G4 Handle Assy, Rear Door Outside, Lh[04.1996 - 08.1996] AT19#..SX,SXI DK GREEN MICA,6M1; AT19#,CT190..SG,SGI ｶﾗ- ﾊﾟﾂｹ-ｼﾞ OR ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ,DK GREEN MICA,6M1 |
69240-20220-G4 |
US $90.27 |
||
|
69240
|
69240
69240-20220-J2 Handle Assy, Rear Door Outside, Lh[08.1994 - 08.1996] AT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI DK.BLUE MM,8G5 |
69240-20220-J2 |
US $90.27 |
||
|
69330
|
69330
69305-20080 Lock Assy, Rear Door, Rh[08.1992 - 08.1996] AT19#,ST19#..SL,SX,SXI |
69305-20080 |
US $202.38 |
||
|
69338
|
69338
69338-32010 Knob, Child Protector Lock Lever[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69338-32010 |
US $10.48 |
||
|
69340
|
69340
69306-20080 Lock Assy, Rear Door, Lh[08.1992 - 08.1996] AT19#,ST19#..SL,SX,SXI |
69306-20080 |
US $202.38 |
||
|
69410B
|
69410B
69410-87001 Plate Assy, Front Door Lock Striker[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69410-87001 |
US $11.36 |
||
| replacement | |||||
|
69410B
|
69410B
69410-AA020 Plate Assy, Front Door Lock Striker[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69410-AA020 |
US $37.29 |
||
|
69703
|
69703
69703-20030 Link Sub-Assy, Rear Door Locking Control, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69703-20030 |
US $15.14 |
||
|
69704
|
69704
69704-20030 Link Sub-Assy, Rear Door Locking Control, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69704-20030 |
US $15.14 |
||
|
69730A
|
69730A
69730-20040
Link Assy, Rear Door Lock Control, Rh
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69730-20040 |
— | ||
|
69740A
|
69740A
69740-20040 Link Assy, Rear Door Lock Control, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69740-20040 |
US $9.17 |
||
|
69749B
|
69749B
69749-32030 Clamp, Front Door Lock Link[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69749-32030 |
US $1.60 |
||
|
69759F
|
69759F
69759-20380
Snap, Door Lock Control Link, No.1
[08.1992 - 08.1996] AT19#,CT19#,ST19# LH,BLACK |
69759-20380 |
— | ||
|
69759F
|
69759F
69759-24030 Snap, Door Inside Handle Link[08.1992 - 08.1996] AT19#,CT19#,ST19# RH,RED |
69759-24030 |
from US $2.80 |
||
|
69759F
|
69759F
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[08.1994 - 08.1996] AT19#,CT19#,ST195 GREEN |
69759-24050 |
from US $3.84 |
||
|
69759F
|
69759F
69759-24060 Snap(For Rear Door Lock)[08.1994 - 08.1996] AT19#,CT19#,ST195 GRAY |
69759-24060 |
from US $4.64 |
||
|
69759J
|
69759J
69759-12060 Pad, Back Panel Silencer, Upper[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69759-12060 |
US $3.93 |
||
|
69759T
|
69759T
69759-14050 Snap(For Rear Door Inside Handle)[08.1994 - 08.1996] AT19#,CT19#,ST195 PINK |
69759-14050 |
from US $2.24 |
||
|
69759T
|
69759T
69759-24070 Snap(For Rear Door Inside Handle)[08.1994 - 08.1996] AT19#,CT19#,ST195 イエロー |
69759-24070 |
US $2.88 |
||
|
69759Y
|
69759Y
69759-12060 Pad, Back Panel Silencer, Upper[08.1992 - 08.1996] AT19#,CT19#,ST19# |
69759-12060 |
US $3.93 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.49 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9018904127
|
9018904127
90189-04127 New Genuine Part |
90189-04127 |
US $1.05 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
|
9353054020
|
9353054020
93530-54020 New Genuine Part |
93530-54020 |
US $0.87 |
||
