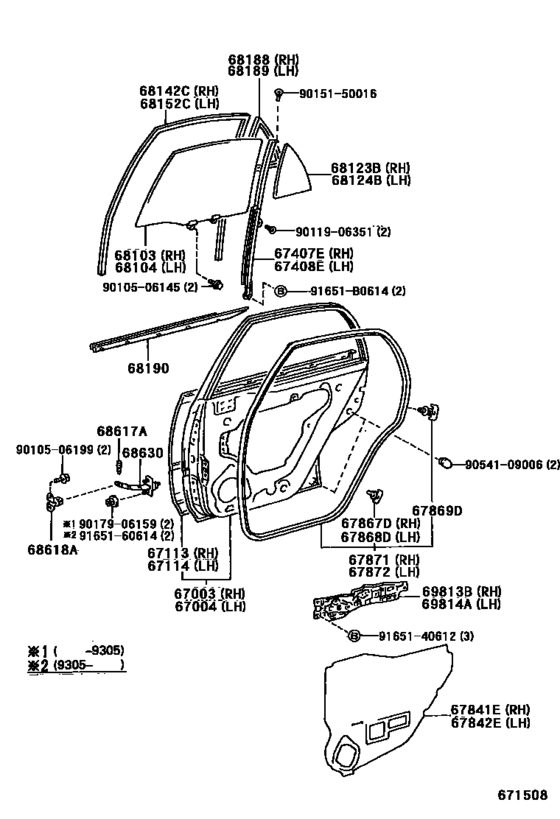

Rear Door Panel & Glass ([08.1992 - ] (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-20570 Panel Sub-Assy, Rear Door, Rh[08.1992 - 08.1995] AT19#,CT19#,ST19# |
67003-20570 |
US $835.74 |
||
| replacements | |||||
|
67003
|
67003
67003-20740 Panel Sub-Assy, Rear Door, Rh[08.1992 - 08.1995] AT19#,CT19#,ST19# |
67003-20740 |
US $835.74 |
||
|
67003
|
67003
90189-05027 GROMMET[08.1992 - 08.1995] AT19#,CT19#,ST19# |
90189-05027 |
from US $0.74 |
||
|
67003
|
67003
67003-20740 Panel Sub-Assy, Rear Door, Rh[08.1995 - 08.1996] AT19#,CT19#,ST195 |
67003-20740 |
US $835.74 |
||
|
67004
|
67004
67004-20570 Panel Sub-Assy, Rear Door, Lh[08.1992 - 08.1995] AT19#,CT19#,ST19# |
67004-20570 |
US $835.74 |
||
| replacements | |||||
|
67004
|
67004
67004-20740 Panel Sub-Assy, Rear Door, Lh[08.1992 - 08.1995] AT19#,CT19#,ST19# |
67004-20740 |
US $835.74 |
||
|
67004
|
67004
90189-05027 GROMMET[08.1992 - 08.1995] AT19#,CT19#,ST19# |
90189-05027 |
from US $0.74 |
||
|
67004
|
67004
67004-20740 Panel Sub-Assy, Rear Door, Lh[08.1995 - 08.1996] AT19#,CT19#,ST195 |
67004-20740 |
US $835.74 |
||
|
67113
|
67113
67113-20230 Panel, Rear Door, Outer Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67113-20230 |
US $337.79 |
||
|
67114
|
67114
67114-20220 Panel, Rear Door, Outer Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67114-20220 |
US $337.79 |
||
|
67407E
|
67407E
67407-20220 Bar Sub-Assy, Rear Door Window Division, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67407-20220 |
US $46.88 |
||
|
67408E
|
67408E
67408-20210 Bar Sub-Assy, Rear Door Window Division, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67408-20210 |
US $46.88 |
||
|
67841E
|
67841E
67841-20270 Cover, Rear Door Service Hole, Rh[08.1992 - 08.1996] AT19#,ST19#..SL,SX,SXI |
67841-20270 |
US $14.27 |
||
|
67841E
|
67841E
67841-20290 Cover, Rear Door Service Hole, Rh[08.1994 - 08.1996] AT19#,ST195..SX,SXI ｱﾘ(ｽﾋﾟ-ｶ) |
67841-20290 |
US $14.27 |
||
|
67842E
|
67842E
67842-20170 Cover, Rear Door Service Hole, Lh[08.1992 - 08.1996] AT19#,ST19#..SL,SX,SXI |
67842-20170 |
US $14.27 |
||
|
67842E
|
67842E
67842-20190 Cover, Rear Door Service Hole, Lh[08.1994 - 08.1996] AT19#,ST195..SX,SXI ｱﾘ(ｽﾋﾟ-ｶ) |
67842-20190 |
US $14.27 |
||
|
67867D
|
67867D
67867-20160 Retainer, Front Door Weatherstrip, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67867-20160 |
US $2.33 |
||
| replacement | |||||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67867-12150 |
from US $1.60 |
||
|
67868D
|
67868D
67867-20160 Retainer, Front Door Weatherstrip, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67867-20160 |
US $2.33 |
||
| replacement | |||||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67867-12150 |
from US $1.60 |
||
|
67869D
|
67869D
67869-20040 Clip, Door Weatherstrip[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67869-20040 |
US $2.33 |
||
|
67871
|
67871
67871-20311 Weatherstrip, Rear Door, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67871-20311 |
US $99.01 |
||
|
67872
|
67872
67872-20311 Weatherstrip, Rear Door, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
67872-20311 |
US $99.01 |
||
|
68103
|
68103
68103-20270 Glass Sub-Assy, Rear Door, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# ＊ＴＴ，厚さ＝３．１ |
68103-20270 |
US $270.82 |
||
|
68103
|
68103
68103-20280 Glass Sub-Assy, Rear Door, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ＊ＴＥＭ，厚さ＝３．１，ブロンズ |
68103-20280 |
US $275.18 |
||
|
68103
|
68103
68103-20290 Glass Sub-Assy, Rear Door, Rh[04.1995 - 08.1996] AT19#..SX,SXI ＊ＴＥＭ，厚さ＝３．１，グレー,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
68103-20290 |
US $355.26 |
||
|
68104
|
68104
68104-20270 Glass Sub-Assy, Rear Door, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# ＊ＴＴ，厚さ＝３．１ |
68104-20270 |
US $270.82 |
||
|
68104
|
68104
68104-20280 Glass Sub-Assy, Rear Door, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ＊ＴＥＭ，厚さ＝３．１，ブロンズ |
68104-20280 |
US $275.18 |
||
|
68104
|
68104
68104-20290
Glass Sub-Assy, Rear Door, Lh
[04.1995 - 08.1996] AT19#..SX,SXI ＊ＴＥＭ，厚さ＝３．１，グレー,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
68104-20290 |
— | ||
|
68123B
|
68123B
68123-20600 Glass, Rear Door Quarter Window, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# ＊ＴＴ，厚さ＝３．１ |
68123-20600 |
US $65.37 |
||
|
68123B
|
68123B
68123-20610 Glass, Rear Door Quarter Window, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ＊ＴＥＭ，厚さ＝３．１，ブロンズ |
68123-20610 |
US $74.26 |
||
|
68123B
|
68123B
68123-20620 Glass, Rear Door Quarter Window, Rh[04.1995 - 08.1996] AT19#..SX,SXI ＊ＴＥＭ，厚さ＝３．１，グレー,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
68123-20620 |
US $85.90 |
||
| replacement | |||||
|
68123B
|
68123B
68123-20610 Glass, Rear Door Quarter Window, Rh[04.1995 - 08.1996] AT19#..SX,SXI ＊ＴＥＭ，厚さ＝３．１，グレー,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
68123-20610 |
US $74.26 |
||
|
68124B
|
68124B
68124-20520 Glass, Rear Door Quarter Window, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# ＊ＴＴ，厚さ＝３．１ |
68124-20520 |
US $65.37 |
||
|
68124B
|
68124B
68124-20530 Glass, Rear Door Quarter Window, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI ＊ＴＥＭ，厚さ＝３．１，ブロンズ |
68124-20530 |
US $74.26 |
||
|
68124B
|
68124B
68124-20540 Glass, Rear Door Quarter Window, Lh[04.1995 - 08.1996] AT19#..SX,SXI ＊ＴＥＭ，厚さ＝３．１，グレー,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
68124-20540 |
US $85.90 |
||
| replacement | |||||
|
68124B
|
68124B
68124-20530 Glass, Rear Door Quarter Window, Lh[04.1995 - 08.1996] AT19#..SX,SXI ＊ＴＥＭ，厚さ＝３．１，グレー,ﾄｸﾍﾞﾂｼﾖｳｼﾔ ﾏｲﾛ-ﾄﾞ |
68124-20530 |
US $74.26 |
||
|
68142C
|
68142C
68142-20180 Run, Rear Door Glass, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
68142-20180 |
US $46.59 |
||
|
68152C
|
68152C
68152-20120 Run, Rear Door Glass, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
68152-20120 |
US $46.59 |
||
|
68188
|
68188
68188-20170 Weatherstrip, Rear Door Quarter Window, Rh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
68188-20170 |
US $17.47 |
||
|
68189
|
68189
68189-20170 Weatherstrip, Rear Door Quarter Window, Lh[08.1992 - 08.1996] AT19#,CT19#,ST19# |
68189-20170 |
US $17.47 |
||
|
68190
|
68190
68190-20270
Weatherstrip Assy, Rear Door Glass, Inner
[08.1992 - 08.1996] AT19#,CT19#,ST19# 右側 |
68190-20270 |
— | ||
|
68190
|
68190
68240-20150
Weatherstrip Assy, Rear Door Glass, Inner
[08.1992 - 08.1996] AT19#,CT19#,ST19# 左側 |
68240-20150 |
— | ||
|
68617A
|
68617A
68617-20011 Pin(For Door Check)[06.1995 - 08.1996] AT19#,CT19#,ST195 |
68617-20011 |
from US $2.59 |
||
|
68617A
|
68617A
68617-20030 Pin, Front Door Check[08.1992 - 06.1995] AT19#,CT19#,ST19# |
68617-20030 |
US $3.93 |
||
| replacement | |||||
|
68617A
|
68617A
68617-20011 Pin(For Door Check)[08.1992 - 06.1995] AT19#,CT19#,ST19# |
68617-20011 |
from US $2.59 |
||
|
68618A
|
68618A
68618-20010
Bracket, Front Door Check Arm, Rh
[08.1992 - 08.1996] AT19#,CT19#,ST19# |
68618-20010 |
— | ||
|
68630
|
68630
68630-20112 Check Assy, Rear Door[06.1994 - 08.1996] AT19#,CT19#,ST19# |
68630-20112 |
US $49.65 |
||
|
69813B
|
69813B
69813-20030 Plate, Rear Door Window Regulator Base, Rh[08.1992 - 10.1994] AT19#,CT19#,ST19# |
69813-20030 |
US $34.36 |
||
| replacement | |||||
|
69813B
|
69813B
69813-20070 Plate, Rear Door Window Regulator Base, Rh[08.1992 - 10.1994] AT19#,CT19#,ST19# |
69813-20070 |
US $34.22 |
||
|
69813B
|
69813B
69813-20060 Plate, Rear Door Window Regulator Base, Rh[10.1994 - 01.1996] AT19#,CT19#,ST195 |
69813-20060 |
US $34.36 |
||
| replacement | |||||
|
69813B
|
69813B
69813-20070 Plate, Rear Door Window Regulator Base, Rh[10.1994 - 01.1996] AT19#,CT19#,ST195 |
69813-20070 |
US $34.22 |
||
|
69813B
|
69813B
69813-20061 Plate, Rear Door Window Regulator Base, Rh[01.1996 - 08.1996] AT19#,CT19#,ST195 |
69813-20061 |
US $34.36 |
||
| replacement | |||||
|
69813B
|
69813B
69813-20070 Plate, Rear Door Window Regulator Base, Rh[01.1996 - 08.1996] AT19#,CT19#,ST195 |
69813-20070 |
US $34.22 |
||
|
69814A
|
69814A
69814-20020 Plate, Rear Door Window Regulator Base, Lh[08.1992 - 10.1994] AT19#,CT19#,ST19# |
69814-20020 |
US $34.36 |
||
| replacement | |||||
|
69814A
|
69814A
69814-20040 Plate, Rear Door Window Regulator Base, Lh[08.1992 - 10.1994] AT19#,CT19#,ST19# |
69814-20040 |
US $34.22 |
||
|
69814A
|
69814A
69814-20030 Plate, Rear Door Window Regulator Base, Lh[10.1994 - 01.1996] AT19#,CT19#,ST195 |
69814-20030 |
US $34.36 |
||
| replacement | |||||
|
69814A
|
69814A
69814-20040 Plate, Rear Door Window Regulator Base, Lh[10.1994 - 01.1996] AT19#,CT19#,ST195 |
69814-20040 |
US $34.22 |
||
|
69814A
|
69814A
69814-20031 Plate, Rear Door Window Regulator Base, Lh[01.1996 - 08.1996] AT19#,CT19#,ST195 |
69814-20031 |
US $34.36 |
||
| replacement | |||||
|
69814A
|
69814A
69814-20040 Plate, Rear Door Window Regulator Base, Lh[01.1996 - 08.1996] AT19#,CT19#,ST195 |
69814-20040 |
US $34.22 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9010506145
|
9010506145
90105-06145 New Genuine Part |
90105-06145 |
US $0.87 |
||
|
9010506199
|
9010506199
90105-06199 New Genuine Part |
90105-06199 |
US $2.62 |
||
| replacement | |||||
|
9010506199
|
9010506199
91511-G0614 BOLTFLANGE |
91511-G0614 |
from US $1.76 |
||
|
9011906351
|
9011906351
90119-06351 New Genuine Part |
90119-06351 |
US $0.61 |
||
|
9015150016
|
9015150016
90151-50016 New Genuine Part |
90151-50016 |
US $1.28 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9054109006
|
9054109006
90541-09006 Cushion, Front Door Panel |
90541-09006 |
from US $1.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
