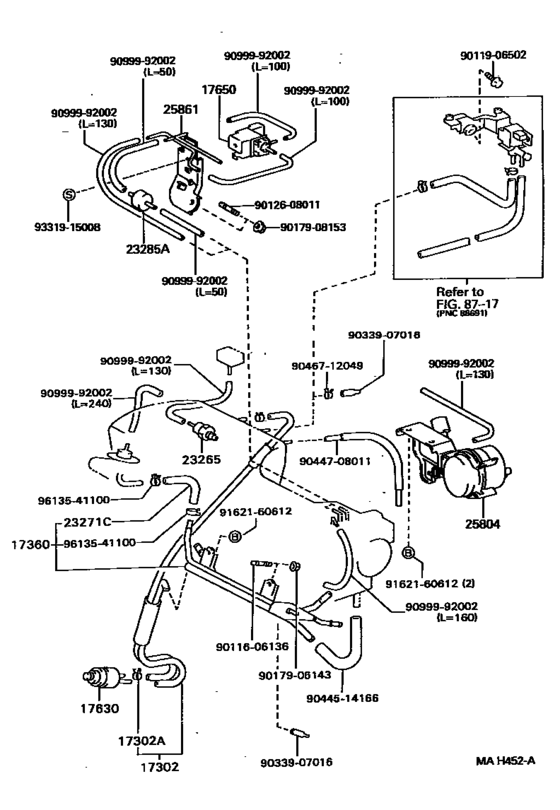

Vacuum Piping ([08.1994 - ] (9408- )4AFE,7AFE) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302
|
17302
17302-15010
Hose Sub-Assy, Air
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
17302-15010 |
— | ||
|
17302A
|
17302A
96132-51000 Clip Or Clamp(For Ventilation Hose)[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
96132-51000 |
from US $1.62 |
||
|
17360
|
17360
17360-16030 Tube Assy, Air[01.1995 - 08.1996] 4AFE,7AFE..AT190,191 |
17360-16030 |
US $68.14 |
||
|
17360
|
17360
17360-16190 Tube Assy, Air[08.1992 - 01.1995] 4AFE,7AFE..AT190,191 |
17360-16190 |
US $68.14 |
||
| replacement | |||||
|
17360
|
17360
17360-16030 Tube Assy, Air[08.1992 - 01.1995] 4AFE,7AFE..AT190,191 |
17360-16030 |
US $68.14 |
||
|
17630
|
17630
17630-15080 Valve Assy, Air Control[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
17630-15080 |
US $99.59 |
||
|
17650
|
17650
90910-12153
Valve Assy, Vacuum Switching
[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
90910-12153 |
— | ||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90917-11022 |
from US $15.50 |
||
|
23271C
|
23271C
95334-06022 Hose, Fuel[12.1993 - 08.1996] 4AFE,7AFE..AT190,191 |
95334-06022 |
US $2.77 |
||
|
23285A
|
23285A
90917-10080
Filter, Gas, No.1
[08.1992 - 08.1996] 4AFE,5AFE,7AFE..AT19# |
90917-10080 |
— | ||
|
25804
|
25804
25804-16060 Valve Set, Vacuum Control[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
25804-16060 |
US $158.70 |
||
|
25861
|
25861
25861-16060 Bracket, Vacuum Switching Valve[08.1994 - 08.1996] 4AFE,7AFE..AT190,191 |
25861-16060 |
US $56.93 |
||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.08 |
||
|
9011906502
|
9011906502
90119-06502
New Genuine Part
|
90119-06502 |
— | ||
| replacement | |||||
|
9011906502
|
9011906502
90119-06330 Bolt |
90119-06330 |
US $1.28 |
||
|
9012608011
|
9012608011
90126-08011 New Genuine Part |
90126-08011 |
US $3.06 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.86 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9044514166
|
9044514166
90445-14166
HOSE
|
90445-14166 |
— | ||
|
9044708011
|
9044708011
90447-08011 Hose, Fuel, No.4 (For Charcoal Canister) |
90447-08011 |
US $9.03 |
||
|
9046712049
|
9046712049
90467-12049 Clip(For Actuator Hose) |
90467-12049 |
US $2.62 |
||
| replacement | |||||
|
9046712049
|
9046712049
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
