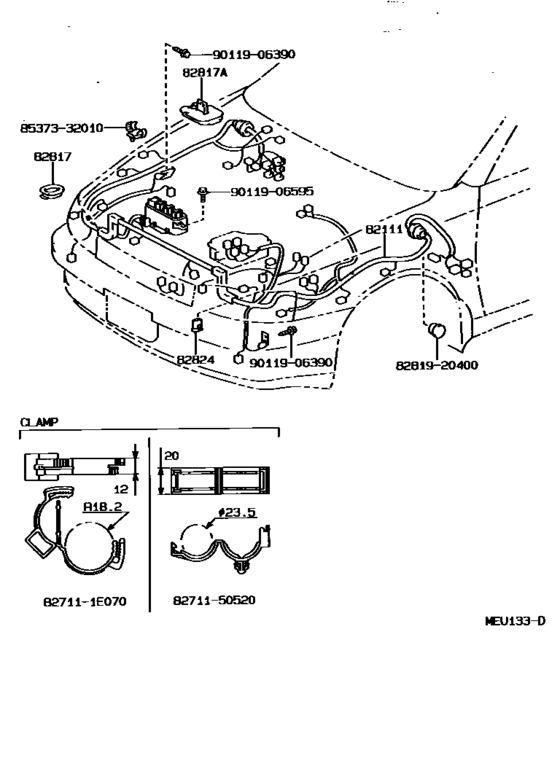

Wiring & Clamp ([08.1992 - ] ENGINE ROOM WIRE (9208- )) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT190
- grade
- SXI
- ENGINE
- 4AFE
- TRANSMISSION
- ATM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
- Model Mark
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-2G522 Wire, Engine Room Main[08.1994 - 08.1996] AT191..SEEXT; AT192..SG ｱﾘ(*FWD & *RWD) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ); AT190,191..SGI ｱﾘ(*FWD & *RWD); AT19#..SL,SX,SXI ｱﾘ(*RW) OR ｱﾘ(*FWD & *RWD) |
82111-2G522 |
US $618.80 |
||
| replacement | |||||
|
82111
|
82111
82111-2G533 Wire, Engine Room Main[08.1994 - 08.1996] AT191..SEEXT; AT192..SG ｱﾘ(*FWD & *RWD) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ); AT190,191..SGI ｱﾘ(*FWD & *RWD); AT19#..SL,SX,SXI ｱﾘ(*RW) OR ｱﾘ(*FWD & *RWD) |
82111-2G533 |
US $1,246.34 |
||
|
82111
|
82111
82111-2G532 Wire, Engine Room Main[08.1994 - 02.1996] AT192..SG ｱﾘ(*66); AT19#..SL,SX,SXI ｱﾘ(*66) |
82111-2G532 |
US $1,246.34 |
||
|
82111
|
82111
82111-2G533 Wire, Engine Room Main[02.1996 - 08.1996] AT192..SG ｱﾘ(*66); AT191..SEEXT ｱﾘ(*66); AT190,191..SGI ｱﾘ(*66); AT19#..SL,SX,SXI ｱﾘ(*66) |
82111-2G533 |
US $1,246.34 |
||
|
82111
|
82111
82111-2H630 Wire, Engine Room Main[08.1994 - 08.1996] AT19#..SGI,SL,SX,SXI |
82111-2H630 |
US $1,246.34 |
||
| replacement | |||||
|
82111
|
82111
82111-2G533 Wire, Engine Room Main[08.1994 - 08.1996] AT19#..SGI,SL,SX,SXI |
82111-2G533 |
US $1,246.34 |
||
|
82817
|
82817
82817-2D040 Protector, Wiring Harness, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
82817-2D040 |
US $4.95 |
||
|
82817A
|
82817A
82817-2D090 Protector, Wiring Harness, No.1[08.1992 - 08.1996] AT19#,CT19#,ST19# |
82817-2D090 |
US $10.63 |
||
|
82824
|
82824
82824-20050 Connector, Wiring Harness[08.1992 - 08.1996] AT190..M;AT190..SGI;AT191,192,CT19#,ST19#..SG,SGI,SX,SXI |
82824-20050 |
US $12.67 |
||
|
827111E070
|
827111E070
82711-1E070 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1E070 |
US $3.49 |
||
|
8271150520
|
8271150520
82711-50520
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-50520 |
— | ||
|
8281920400
|
8281920400
82819-20400 Grommet, Wiring Harness |
82819-20400 |
US $12.23 |
||
|
8537332010
|
8537332010
85373-32010 Hose, Windshield Washer (from Joint To Nozzle) |
85373-32010 |
US $2.27 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906595
|
9011906595
90119-06595 BOLT WWASHER |
90119-06595 |
US $3.52 |
||
