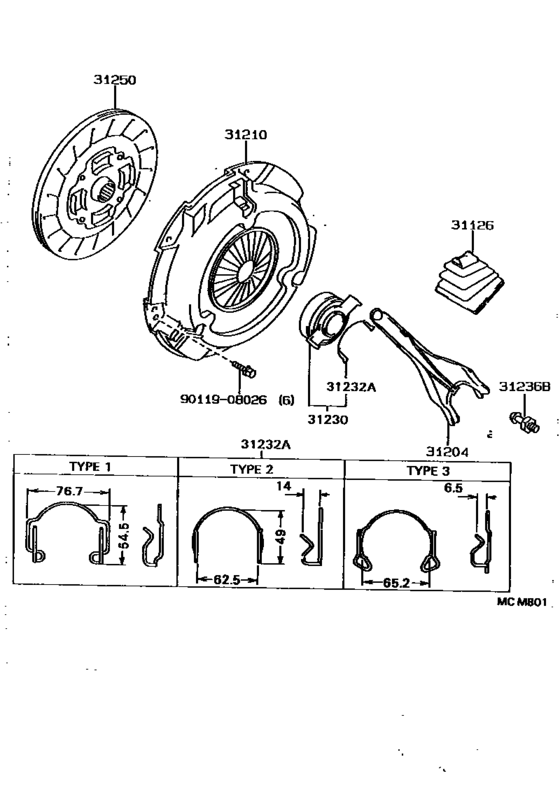

Clutch & Release Fork ([08.1992 - ] C50,C51 (9208- )AT19#..MTM) Diagram Toyota CARINA
- Year
- 1994 - 1996
- Sales region
- Japan
- Frame
- AT191
- grade
- SL
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- Model
- CARINA FF
- From
- 08.1994
- To
- 08.1996
- Vehicle Model
- Carina FF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[08.1992 - 08.1996] AT19#..MTM |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[08.1992 - 08.1996] AT19#..MTM |
31204-17010 |
from US $44.23 |
||
|
31210
|
31210
31210-12200 Cover Assy, Clutch[08.1992 - 03.1995] AT190,191..MTM |
31210-12200 |
US $179.09 |
||
| replacement | |||||
|
31210
|
31210
31210-52053 Cover Assy, Clutch[08.1992 - 03.1995] AT190,191..MTM |
31210-52053 |
from US $142.08 |
||
|
31210
|
31210
31210-12201 Cover Assy, Clutch[03.1995 - 08.1996] AT190,191..MTM |
31210-12201 |
US $155.79 |
||
| replacement | |||||
|
31210
|
31210
31210-52053 Cover Assy, Clutch[03.1995 - 08.1996] AT190,191..MTM |
31210-52053 |
from US $142.08 |
||
|
31230
|
31230
31230-12170
Bearing Assy, Clutch Release
[09.1992 - 08.1996] AT19#..MTM |
31230-12170 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[09.1992 - 08.1996] AT19#..MTM |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-12050
Clip, Release Bearing Hub
[08.1992 - 08.1996] AT19#..MTM ＴＹＰＥ １ |
31232-12050 |
— | ||
|
31232A
|
31232A
31232-12060
Clip, Release Bearing Hub
[08.1992 - 08.1996] AT19#..MTM ＴＹＰＥ ２ |
31232-12060 |
— | ||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[08.1992 - 08.1996] AT19#..MTM ＴＹＰＥ ３ |
31232-12070 |
US $3.20 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[08.1992 - 08.1996] AT19#..MTM |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-12340
Disc Assy, Clutch
[08.1992 - 01.1995] AT190,191..MTM |
31250-12340 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[08.1992 - 01.1995] AT190,191..MTM |
31250-12570 |
from US $146.88 |
||
|
31250
|
31250
31250-12370 Disc Assy, Clutch[01.1995 - 05.1995] AT190,191..MTM |
31250-12370 |
US $151.42 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[01.1995 - 05.1995] AT190,191..MTM |
31250-12570 |
from US $146.88 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
