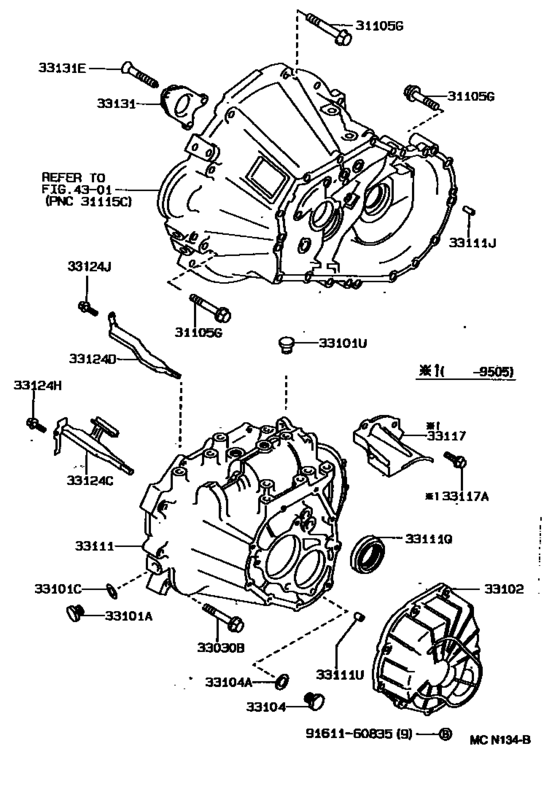

Clutch Housing & Transmission Case (Mtm) ([02.1992 - ] C51,C52,C57 (9202- )AT19#..UKP..MTM) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90105-10077 Bolt(For Transaxle Case Protector)[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..MTM *10-1.25PX43-26 |
90105-10077 |
from US $4.16 |
||
|
31105G
|
31105G
90119-12042 Bolt(For Transaxle Case & Engine Setting)[12.1992 - 10.1997] AT19#..UKP..MTM *12-1.25PX75-30 |
90119-12042 |
US $4.16 |
||
|
31105G
|
31105G
90119-12168 Bolt(For Transaxle & Engine Setting)[12.1992 - 10.1997] AT19#..UKP..MTM *12-1.25PX55-30 |
90119-12168 |
from US $2.13 |
||
|
33030B
|
33030B
90105-08064
Bolt(For Transaxle Case & Transmission Case Setting)
[12.1992 - 10.1997] AT19#..UKP..MTM *8-1.25PX51-28 |
90105-08064 |
— | ||
| replacement | |||||
|
33030B
|
33030B
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[12.1992 - 10.1997] AT19#..UKP..MTM *8-1.25PX51-28 |
90105-08353 |
from US $0.98 |
||
|
33030B
|
33030B
90105-08086 Bolt(For Transaxle Case & Transmission Case Setting)[12.1992 - 10.1997] AT19#..UKP..MTM *8-1.25PX45-27.5 |
90105-08086 |
US $1.76 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[06.1993 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
90341-18006 |
from US $2.76 |
||
|
33101C
|
33101C
90430-18008 Gasket[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
90430-18008 |
from US $0.92 |
||
|
33101U
|
33101U
90930-03133 Plug, Breather[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
90930-03133 |
from US $5.92 |
||
|
33102
|
33102
33102-12021 Cover Sub-Assy, Manual Transmission Case[12.1992 - 10.1997] AT19#..UKP..MTM |
33102-12021 |
US $131.04 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
90341-18006 |
from US $2.76 |
||
|
33104A
|
33104A
90430-18008 Gasket[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..MTM |
90430-18008 |
from US $0.92 |
||
|
33111
|
33111
33111-16061 Case, Manual Transmission[05.1995 - 04.1997] AT19#..UKP..MTM |
33111-16061 |
US $473.20 |
||
| replacements | |||||
|
33111
|
33111
33111-52140 Case, Manual Transmission[05.1995 - 04.1997] AT19#..UKP..MTM |
33111-52140 |
US $327.60 |
||
|
33111
|
33111
90109-12073 Bolt (For Shift Inter Lock Plate)[05.1995 - 04.1997] AT19#..UKP..MTM |
90109-12073 |
US $3.06 |
||
|
33111
|
33111
90109-18005 Bolt (For Shift Inter Lock Plate)[05.1995 - 04.1997] AT19#..UKP..MTM |
90109-18005 |
US $2.97 |
||
|
33111
|
33111
90430-18008 Gasket[05.1995 - 04.1997] AT19#..UKP..MTM |
90430-18008 |
from US $0.92 |
||
|
33111
|
33111
90101-08166 Bolt, Stud Or Bolt(For Transmission Case)[05.1995 - 04.1997] AT19#..UKP..MTM |
90101-08166 |
US $1.46 |
||
|
33111
|
33111
90201-08049 Washer(For Rear Wheel Cylinder)[05.1995 - 04.1997] AT19#..UKP..MTM |
90201-08049 |
US $0.70 |
||
|
33111
|
33111
33111-16062 Case, Manual Transmission[04.1997 - 10.1997] AT19#..UKP..MTM |
33111-16062 |
US $473.20 |
||
| replacements | |||||
|
33111
|
33111
33111-52140 Case, Manual Transmission[04.1997 - 10.1997] AT19#..UKP..MTM |
33111-52140 |
US $327.60 |
||
|
33111
|
33111
90109-18005 Bolt (For Shift Inter Lock Plate)[04.1997 - 10.1997] AT19#..UKP..MTM |
90109-18005 |
US $2.97 |
||
|
33111
|
33111
90430-18008 Gasket[04.1997 - 10.1997] AT19#..UKP..MTM |
90430-18008 |
from US $0.92 |
||
|
33111
|
33111
90101-08166 Bolt, Stud Or Bolt(For Transmission Case)[04.1997 - 10.1997] AT19#..UKP..MTM |
90101-08166 |
US $1.46 |
||
|
33111
|
33111
90201-08049 Washer(For Rear Wheel Cylinder)[04.1997 - 10.1997] AT19#..UKP..MTM |
90201-08049 |
US $0.70 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[12.1992 - 10.1997] AT19#..UKP..MTM L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
33111Q
|
33111Q
90311-34017
Seal, Oil(For Transmission Case)
[12.1992 - 10.1997] AT19#..UKP..MTM |
90311-34017 |
— | ||
| replacement | |||||
|
33111Q
|
33111Q
90311-34042 Oil Seal, Front Drive Shaft, Lh[12.1992 - 10.1997] AT19#..UKP..MTM |
90311-34042 |
from US $7.52 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[12.1992 - 10.1997] AT19#..UKP..MTM L=11,OD=11 |
90253-11001 |
US $1.92 |
||
|
33124C
|
33124C
33124-12012 Pipe, Oil Receiver, No.1(Mtm)[01.1996 - 10.1997] AT19#..UKP..MTM |
33124-12012 |
US $9.46 |
||
| replacement | |||||
|
33124C
|
33124C
33124-20050 Pipe, Oil Receiver, No.1(Mtm)[01.1996 - 10.1997] AT19#..UKP..MTM |
33124-20050 |
US $5.59 |
||
|
33124D
|
33124D
33124-12021 Pipe, Oil Receiver, No.2(Mtm)[05.1994 - 10.1997] AT19#..UKP..MTM |
33124-12021 |
US $9.61 |
||
|
33124H
|
33124H
91611-60820
Bolt(For Transaxle & Engine Setting)
[12.1992 - 10.1997] AT19#..UKP..MTM |
91611-60820 |
— | ||
| replacement | |||||
|
33124H
|
33124H
91611-G0820 Bolt[12.1992 - 10.1997] AT19#..UKP..MTM |
91611-G0820 |
from US $1.25 |
||
|
33124J
|
33124J
91611-60820
Bolt(For Transaxle & Engine Setting)
[12.1992 - 10.1997] AT19#..UKP..MTM |
91611-60820 |
— | ||
| replacement | |||||
|
33124J
|
33124J
91611-G0820 Bolt[12.1992 - 10.1997] AT19#..UKP..MTM |
91611-G0820 |
from US $1.25 |
||
|
33131
|
33131
33131-12071
Retainer, Bearing, Front(Mtm)
[12.1992 - 07.1996] AT19#..UKP..MTM |
33131-12071 |
— | ||
| replacement | |||||
|
33131
|
33131
33131-12080
Retainer, Bearing, Front(Mtm)
[12.1992 - 07.1996] AT19#..UKP..MTM |
33131-12080 |
— | ||
|
33131
|
33131
33131-12080
Retainer, Bearing, Front(Mtm)
[07.1996 - 10.1997] AT19#..UKP..MTM |
33131-12080 |
— | ||
|
33131E
|
33131E
90149-60028 Screw(For Bearing Retainer Front)[12.1992 - 10.1997] AT19#..UKP..MTM |
90149-60028 |
US $0.52 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
