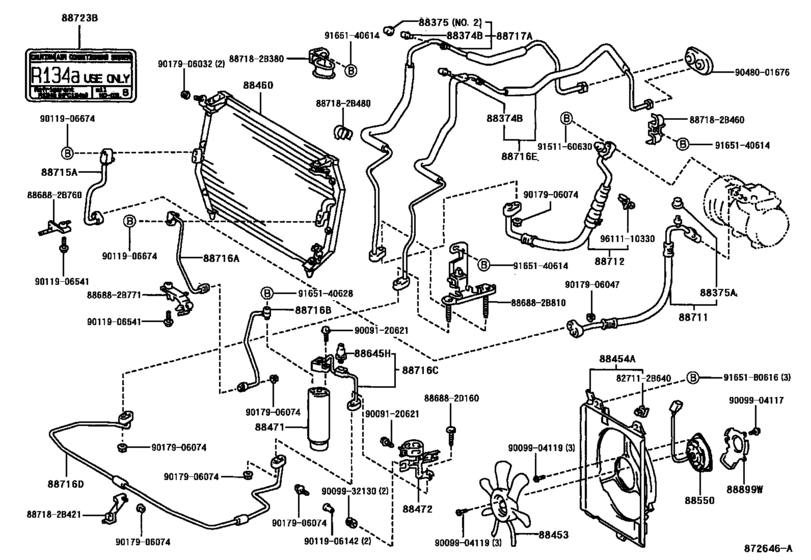

Heating & Air Conditioning - Cooler Piping ([01.1996 - ] MAKER OPTION (9601- )AT19#,ST191..UKP..LHD) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[01.1996 - 10.1997] AT190..UKP..LHD..SED..XL; AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL |
88374-30010 |
from US $3.37 |
||
|
88375A
|
88375A
88375-30280 Cap, Service Valve (For Cooler Pipe)[01.1996 - 10.1997] AT19#..UKP..LHD NO.1; AT19#,CT190,ST191..UKP..RHD NO.1; CT190,ST191..UKP..LHD |
88375-30280 |
from US $0.98 |
||
|
88375A
|
88375A
88375-30290 Cap, Service Valve (For Cooler Pipe)[01.1996 - 10.1997] AT19#,CT190,ST191..UKP..RHD NO.2; AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL DEALER OPTION; AT190..UKP..LHD..SED..XL DEALER OPTION OR *EX-USSR |
88375-30290 |
from US $0.94 |
||
|
88453
|
88453
88453-20080 Fan, Rh[11.1994 - 10.1997] AT19#,ST191..UKP;CT190..UKP..RHD..DSL |
88453-20080 |
US $63.25 |
||
|
88454A
|
88454A
88454-20020
Shroud, Fan
[12.1992 - 10.1997] AT19#,ST191..UKP |
88454-20020 |
— | ||
|
88460
|
88460
88460-05010
Condenser Assy, Cooler
[05.1994 - 10.1997] AT19#,ST191..UKP MAKER OPTION |
88460-05010 |
— | ||
|
88460
|
88460
88460-20370 Condenser Assy, Cooler[01.1996 - 10.1997] AT190..UKP..GL;AT191,ST191..UKP;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL; AT190..UKP..LHD..SED..XL *EX-USSR |
88460-20370 |
US $531.44 |
||
|
88471
|
88471
88471-20050
Receiver & Dryer Assy, Cooler
[01.1996 - 10.1997] AT190..UKP..LHD..SED..XL; AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG) ..XL |
88471-20050 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[01.1996 - 10.1997] AT190..UKP..LHD..SED..XL; AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG) ..XL |
88471-34010 |
from US $70.08 |
||
|
88472
|
88472
88472-20150
Bracket, Receiver Tank, No.1
[01.1996 - 10.1997] AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,WG)..XL; AT190..UKP..LHD..SED..XL *EX-USSR |
88472-20150 |
— | ||
|
88550
|
88550
16363-46030 Motor, Cooling Fan[01.1996 - 10.1997] AT19#,ST191..UKP |
16363-46030 |
US $382.93 |
||
|
88645H
|
88645H
88645-20050
Switch, Pressure
[01.1996 - 10.1997] AT190..UKP..LHD..SED..XL; AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG) ..XL |
88645-20050 |
— | ||
|
88711
|
88711
88711-2B300 Hose, Cooler Refrigerant Discharge, No.1[01.1996 - 10.1997] AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL; AT190..UKP..LHD..SED..XL *EX-USSR |
88711-2B300 |
US $177.63 |
||
|
88712
|
88712
88712-2B251 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [01.1996 - 10.1997] AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL; AT190..UKP..LHD..SED..XL *EX-USSR |
88712-2B251 |
US $177.63 |
||
|
88715A
|
88715A
88715-20120 Pipe, Cooler Refrigerant Discharge, A[01.1996 - 10.1997] AT190..UKP..LHD..SED..XL; AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG) ..XL |
88715-20120 |
US $63.92 |
||
| replacement | |||||
|
88715A
|
88715A
88715-20170 Pipe, Cooler Refrigerant Discharge, A[01.1996 - 10.1997] AT190..UKP..LHD..SED..XL; AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG) ..XL |
88715-20170 |
US $58.68 |
||
|
88716A
|
88716A
88716-2D140 Pipe, Cooler Refrigerant Liquid, A[01.1996 - 10.1997] AT190..UKP..LHD..SED..XL; AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG) ..XL |
88716-2D140 |
US $53.87 |
||
|
88716B
|
88716B
88716-2D151 Pipe, Cooler Refrigerant Liquid, B[01.1996 - 10.1997] AT191..UKP..LHD;CT190,ST191..UKP;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL; AT190..UKP..LHD..SED..XL *EX-USSR |
88716-2D151 |
US $37.71 |
||
|
88716C
|
88716C
88716-2D160 Pipe, Cooler Refrigerant Liquid, CCOOLER REFRIGERANT LIQUID, C [01.1996 - 10.1997] AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,WG)..XL; AT190..UKP..LHD..SED..XL *EX-USSR |
88716-2D160 |
US $215.49 |
||
|
88716D
|
88716D
88716-2D132 Pipe, Cooler Refrigerant Liquid, DCOOLER REFRIGERANT LIQUID, D [01.1996 - 10.1997] AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP..LHD;AT190..UKP..LHD..(LB,WG)..XL; AT190..UKP..LHD..SED..XL *EX-USSR |
88716-2D132 |
US $126.67 |
||
|
88716E
|
88716E
88716-2D450 Pipe, Cooler Refrigerant Liquid, ECOOLER REFRIGERANT LIQUID, E [01.1996 - 10.1997] AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL; AT190..UKP..LHD..SED..XL *EX-USSR |
88716-2D450 |
US $168.90 |
||
|
88717A
|
88717A
88717-2B540 Pipe, Cooler Refrigerant Suction, ACOOLER REFRIGERANT SUCTION, A [01.1996 - 10.1997] AT191..UKP..LHD;AT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,WG)..XL; AT190..UKP..LHD..SED..XL *EX-USSR |
88717-2B540 |
US $382.93 |
||
|
88723B
|
88723B
88723-20040 Label, Cooler Service Caution[01.1996 - 10.1997] AT190..UKP..LHD..SED..XL; AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG) ..XL |
88723-20040 |
from US $2.37 |
||
|
88899W
|
88899W
88899-20270
Support Sub-Assy, B
[12.1992 - 10.1997] AT19#,ST191..UKP |
88899-20270 |
— | ||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.86 |
||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.76 |
||
|
886882B760
|
886882B760
88688-2B760
Bracket, Cooler Diaphragm
|
88688-2B760 |
— | ||
| replacements | |||||
|
886882B760
|
886882B760
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
886882B760
|
886882B760
88688-2D060
Bracket, Cooler Diaphragm
|
88688-2D060 |
— | ||
|
886882B760
|
886882B760
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
US $1.54 |
||
|
886882B771
|
886882B771
88688-2B771
Bracket, Cooler Diaphragm
|
88688-2B771 |
— | ||
|
886882B810
|
886882B810
88688-2B810
Bracket, Cooler Diaphragm
|
88688-2B810 |
— | ||
|
886882D160
|
886882D160
88688-2D160
Bracket, Cooler Diaphragm
|
88688-2D160 |
— | ||
|
887182B380
|
887182B380
88718-2B380
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2B380 |
— | ||
|
887182B421
|
887182B421
88718-2B421
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2B421 |
— | ||
|
887182B460
|
887182B460
88718-2B460
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2B460 |
— | ||
|
887182B480
|
887182B480
88718-2B480
Pipe, Cooler Refrigerant Suction, No.2
|
88718-2B480 |
— | ||
|
9009120621
|
9009120621
90091-20621
New Genuine Part
|
90091-20621 |
— | ||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
US $0.70 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.68 |
||
|
9009932130
|
9009932130
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
US $1.54 |
||
|
9011906142
|
9011906142
90119-06142 Bolt A/C |
90119-06142 |
US $1.92 |
||
|
9011906541
|
9011906541
90119-06541 New Genuine Part |
90119-06541 |
US $2.56 |
||
|
9011906674
|
9011906674
90119-06674
New Genuine Part
|
90119-06674 |
— | ||
| replacement | |||||
|
9011906674
|
9011906674
91651-G0645 New Genuine Part |
91651-G0645 |
US $1.05 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017906047
|
9017906047
90179-06047
New Genuine Part
|
90179-06047 |
— | ||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.44 |
||
|
9048001676
|
9048001676
90480-01676
GROMMET
|
90480-01676 |
— | ||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
from US $1.92 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140628
|
9165140628
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9611110330
|
9611110330
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96111-10330 |
US $2.08 |
||
