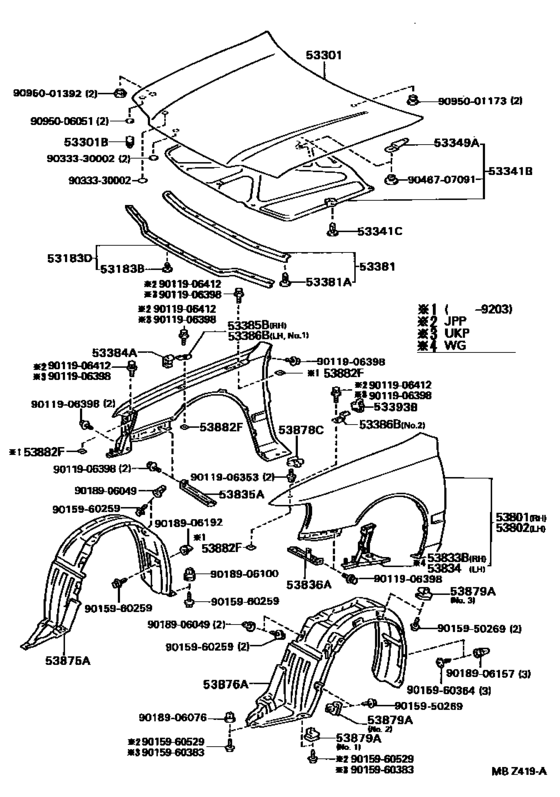

Hood & Front Fender ([02.1992 - ] (9202- )UKP) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183B
|
53183B
90080-46161
Clip, Door Weatherstrip
[07.1994 - 10.1997] AT19#,CT190,ST191..UKP |
90080-46161 |
— | ||
| replacement | |||||
|
53183B
|
53183B
90467-06084 Clip(For Headlamp Cover Seal)[07.1994 - 10.1997] AT19#,CT190,ST191..UKP |
90467-06084 |
from US $1.01 |
||
|
53183D
|
53183D
53183-05010 Seal, Headlamp Cover To HoodHEADLAMP COVER TO HOOD [12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53183-05010 |
US $26.35 |
||
| replacement | |||||
|
53183D
|
53183D
53183-20080
Seal, Headlamp Cover To Hood
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53183-20080 |
— | ||
|
53301
|
53301
53301-05010
Hood Sub-Assy
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53301-05010 |
— | ||
|
53301B
|
53301B
90541-15111 Cushion, Radiator Support[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
90541-15111 |
from US $2.15 |
||
|
53381
|
53381
53381-05010
Seal, Hood To Radiator Support
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53381-05010 |
— | ||
|
53381A
|
53381A
90080-46135
Clip(For Headlamp Cover Seal)
[07.1994 - 10.1997] AT19#,CT190,ST191..UKP |
90080-46135 |
— | ||
| replacement | |||||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[07.1994 - 10.1997] AT19#,CT190,ST191..UKP |
90467-08011 |
from US $0.36 |
||
|
53384A
|
53384A
53384-05010
Bumper, Fender To Hood
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP |
53384-05010 |
— | ||
|
53385B
|
53385B
53386-20020 Bracket, Fender To Hood Bumper, Rh[05.1993 - 10.1997] AT19#,ST191..UKP |
53386-20020 |
from US $5.01 |
||
|
53386B
|
53386B
53385-20020 Bracket, Fender To Hood Bumper, Rh[12.1993 - 10.1997] AT19#,ST191..UKP |
53385-20020 |
US $5.92 |
||
|
53801
|
53801
53801-05010
Fender Sub-Assy, Front Rh
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53801-05010 |
— | ||
|
53802
|
53802
53802-05010
Fender Sub-Assy, Front Lh
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53802-05010 |
— | ||
|
53833B
|
53833B
53083-20010 Panel, Front Fender Side, Rh[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53083-20010 |
US $28.39 |
||
|
53834
|
53834
53084-20010 Panel, Front Fender Side, Lower Lh[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53084-20010 |
US $28.39 |
||
|
53835A
|
53835A
53835-20070 Brace, Front Fender To Apron, Rh[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53835-20070 |
US $11.07 |
||
|
53836A
|
53836A
53804-20020 Bracket Sub-Assy, Front Side Panel, Lh[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53804-20020 |
US $11.79 |
||
|
53875A
|
53875A
53875-05010
Liner, Front Fender, Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP |
53875-05010 |
— | ||
|
53876A
|
53876A
53876-05010
Liner, Front Fender, Lh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP |
53876-05010 |
— | ||
|
53878C
|
53878C
53878-20030
Spacer, Front Fender
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
53878-20030 |
— | ||
|
53879A
|
53879A
53879-14010 Retainer, Front Fender Liner[12.1992 - 10.1997] AT19#,CT190,ST191..UKP NO.3 |
53879-14010 |
from US $2.91 |
||
|
53879A
|
53879A
53879-16010 Retainer, Front Fender Liner[12.1992 - 10.1997] AT19#,CT190,ST191..UKP NO.1 |
53879-16010 |
from US $1.83 |
||
|
53879A
|
53879A
53879-20020 Retainer, Front Fender Liner[12.1992 - 10.1997] AT19#,CT190,ST191..UKP NO.2 |
53879-20020 |
US $4.48 |
||
|
53882F
|
53882F
53882-16030 Pad, Rear Bumper, Center[12.1992 - 10.1997] AT19#,ST191..UKP |
53882-16030 |
US $0.96 |
||
|
9011906353
|
9011906353
90119-06353
LEXSCREW
|
90119-06353 |
— | ||
| replacement | |||||
|
9011906353
|
9011906353
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.38 |
||
|
9011906398
|
9011906398
90119-06398 BOLT WWASHER |
90119-06398 |
US $1.28 |
||
|
9011906412
|
9011906412
90119-06412 New Genuine Part |
90119-06412 |
US $1.92 |
||
|
9015950269
|
9015950269
90159-50269 SCREW WWASHER |
90159-50269 |
US $1.12 |
||
|
9015960259
|
9015960259
90159-60259 SCREW |
90159-60259 |
US $1.60 |
||
|
9015960364
|
9015960364
90159-60364 SCREW WWASHER |
90159-60364 |
US $1.92 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9015960529
|
9015960529
90159-60529
New Genuine Part
|
90159-60529 |
— | ||
|
9018906049
|
9018906049
90189-06049 CLIP |
90189-06049 |
US $1.05 |
||
|
9018906076
|
9018906076
90189-06076 GROMMET |
90189-06076 |
from US $1.28 |
||
|
9018906100
|
9018906100
90189-06100 GROMMET SCREW |
90189-06100 |
US $1.14 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9018906192
|
9018906192
90189-06192 New Genuine Part |
90189-06192 |
US $1 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9046707091
|
9046707091
90467-07091 Clip(For Hood Insulator) |
90467-07091 |
US $2.24 |
||
|
9095001173
|
9095001173
90950-01173 New Genuine Part |
90950-01173 |
US $2.18 |
||
| replacement | |||||
|
9095001173
|
9095001173
90950-01684 PLUG HOLE |
90950-01684 |
from US $2.79 |
||
|
9095001392
|
9095001392
90950-01392 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01392 |
from US $1.21 |
||
|
9095006051
|
9095006051
90950-06051 Protector, Rear Body, No.1 |
90950-06051 |
US $2.08 |
||
