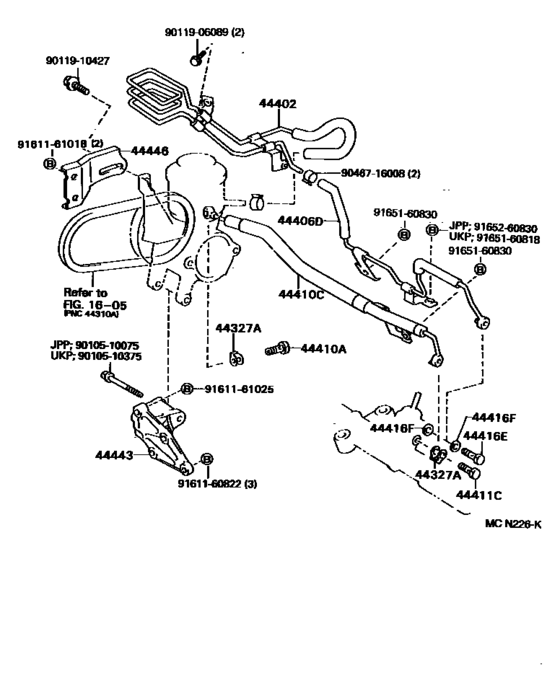

Power Steering Tube ([02.1992 - ] (9202- )AT19#..UKP..LHD) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-12010 Gasket(For Pressure Hose)[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..LHD |
44327-12010 |
from US $4.16 |
||
|
44402
|
44402
44402-20460 Cooler Sub-Assy, Power Steering Oil, No.1POWER STEERING OIL, NO.1 [01.1996 - 10.1997] AT19#..UKP |
44402-20460 |
US $104.83 |
||
|
44406D
|
44406D
44406-05010 Tube Sub-Assy, Return, No.1RETURN, NO.1 [01.1996 - 10.1997] AT19#..UKP..LHD |
44406-05010 |
US $91.73 |
||
|
44410A
|
44410A
90401-16008 Bolt, Union(For Pressure Feed Tube)[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
90401-16008 |
from US $9.76 |
||
|
44410C
|
44410C
44410-05040 Tube Assy, Pressure Feed, No.1PRESSURE FEED, NO.1 [01.1996 - 10.1997] AT19#..UKP..LHD |
44410-05040 |
US $205.30 |
||
|
44411C
|
44411C
96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube)[03.1995 - 10.1997] AT19#,CT190,ST191..UKP..LHD |
96341-41603 |
US $4.96 |
||
|
44416E
|
44416E
96341-11703 Bolt, Union(For Return Tube)[03.1995 - 10.1997] AT19#,CT190,ST191..UKP..LHD |
96341-11703 |
US $8.01 |
||
| replacement | |||||
|
44416E
|
44416E
90401-17005 Bolt, Union(For Return Tube)[03.1995 - 10.1997] AT19#,CT190,ST191..UKP..LHD |
90401-17005 |
US $9.44 |
||
|
44416F
|
44416F
90430-17005 Gasket(For Return Tube)[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..LHD |
90430-17005 |
from US $1.25 |
||
|
44443
|
44443
44443-12100
Bracket, Pump
[01.1995 - 10.1997] AT19#..UKP |
44443-12100 |
— | ||
|
44446
|
44446
44446-05020
Strut, Adjusting
[12.1994 - 10.1997] AT191..UKP |
44446-05020 |
— | ||
|
9010510075
|
9010510075
90105-10075 Bolt(For Alternator) |
90105-10075 |
from US $1.56 |
||
|
9010510375
|
9010510375
90105-10375 New Genuine Part |
90105-10375 |
US $4.22 |
||
|
9011906089
|
9011906089
90119-06089 New Genuine Part |
90119-06089 |
US $2.56 |
||
|
9011910427
|
9011910427
90119-10427 Bolt, No.1 (For Center Support Bearing) |
90119-10427 |
US $3.68 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $3.47 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
US $2.72 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
US $1.44 |
||
|
9165260830
|
9165260830
91652-60830 Bolt (For Transfer Power Take-Off Cover) |
91652-60830 |
US $1.60 |
||
| replacement | |||||
|
9165260830
|
9165260830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
US $1.44 |
||
