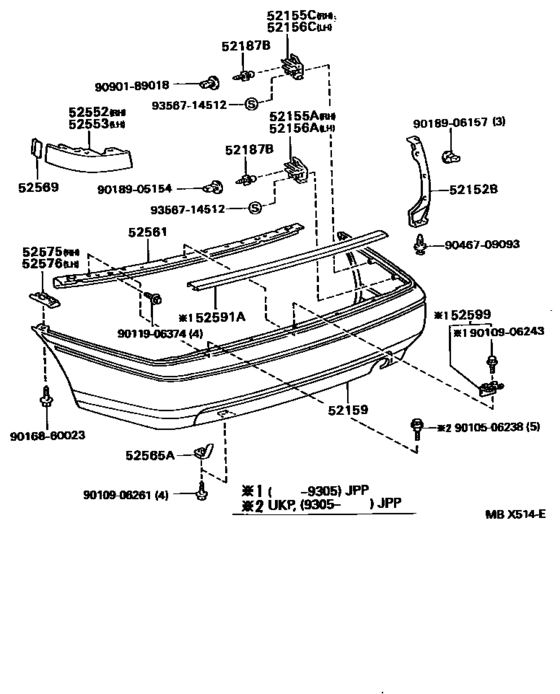

Rear Bumper & Bumper Stay ([02.1992 - ] W(LICENSE PLATE SPACE(550 X 130)) (9202- )UKP..LB,SED) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52152B
|
52152B
52152-05010
Extension, Rear Bumper, Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP |
52152-05010 |
— | ||
|
52155A
|
52155A
52155-05010
Support, Rear Bumper Side, Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) |
52155-05010 |
— | ||
|
52155C
|
52155C
52157-05010
Support, Rear Bumper Side, No.1 Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) |
52157-05010 |
— | ||
|
52156A
|
52156A
52155-05010
Support, Rear Bumper Side, Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) |
52155-05010 |
— | ||
|
52156C
|
52156C
52157-05010
Support, Rear Bumper Side, No.1 Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) |
52157-05010 |
— | ||
|
52159
|
52159
52159-05020
Cover, Rear Bumper
[12.1992 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) |
52159-05020 |
— | ||
|
52187B
|
52187B
52187-12140 Guide, Rear Bumper Location[12.1992 - 10.1997] AT19#,CT190,ST191..UKP |
52187-12140 |
US $5.94 |
||
|
52552
|
52552
52552-20030 Filler, Rear Bumper, Rh[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
52552-20030 |
US $23.44 |
||
|
52553
|
52553
52553-20030 Filler, Rear Bumper, Lh[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
52553-20030 |
US $23.44 |
||
|
52561
|
52561
52561-05010
Retainer, Rear Bumper, Upper Center
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) |
52561-05010 |
— | ||
|
52565A
|
52565A
90467-11028 Retainer, Rear Bumper, Lower[11.1993 - 10.1997] AT19#,CT190,ST191..UKP..(LB,SED) |
90467-11028 |
US $3.84 |
||
|
52569
|
52569
52569-20030 Pad, Rear Bumper Filler[12.1993 - 10.1997] AT19#,CT190,ST191..UKP..LB |
52569-20030 |
US $4.95 |
||
|
52575
|
52575
52575-05010
Retainer, Rear Bumper Side, Rh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP |
52575-05010 |
— | ||
|
52576
|
52576
52576-05010
Retainer, Rear Bumper Side, Lh
[08.1993 - 10.1997] AT19#,CT190,ST191..UKP |
52576-05010 |
— | ||
|
9010506238
|
9010506238
90105-06238
BOLT WASHER BASED
|
90105-06238 |
— | ||
|
9010906243
|
9010906243
90109-06243 New Genuine Part |
90109-06243 |
US $1.76 |
||
|
9010906261
|
9010906261
90109-06261 BOLT |
90109-06261 |
US $0.96 |
||
|
9011906374
|
9011906374
90119-06374
BOLT
|
90119-06374 |
— | ||
| replacement | |||||
|
9011906374
|
9011906374
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9016860023
|
9016860023
90168-60023 SCREW TAPPING |
90168-60023 |
US $1.92 |
||
|
9018905154
|
9018905154
90189-05154 GROMMET SCREW |
90189-05154 |
US $1.05 |
||
|
9018906157
|
9018906157
90189-06157 GROMMET SCREW |
90189-06157 |
from US $0.78 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $3.68 |
||
|
9090189018
|
9090189018
90901-89018 New Genuine Part |
90901-89018 |
US $3.49 |
||
| replacement | |||||
|
9090189018
|
9090189018
90189-05154 GROMMET SCREW |
90189-05154 |
US $1.05 |
||
|
9356714512
|
9356714512
93567-14512 SCREW |
93567-14512 |
US $1.12 |
||
