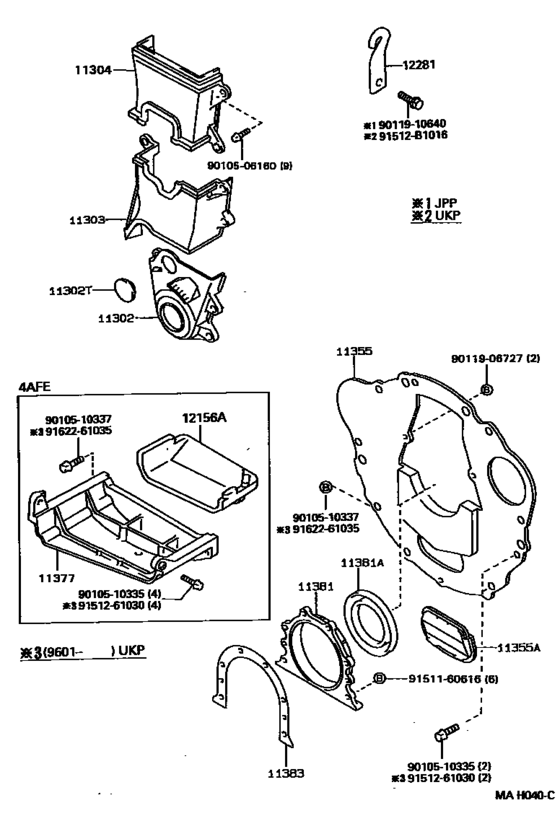

Timing Gear Cover & Rear End Plate ([02.1992 - ] (9202- )4AFE,7AFE..UKP) Diagram Toyota CARINA
- Year
- 1996 - 1997
- Sales region
- Europe
- Frame
- AT191
- grade
- XL
- body
- LB
- ENGINE
- 7AFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- CARINA E (UKP)
- From
- 01.1996
- To
- 10.1997
- Vehicle Model
- Carina E
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11302-02030
Cover Sub-Assy, Timing Chain Or Belt
[02.1994 - 10.1997] 7AFE..AT191..UKP;4AFE..AT190..UKP..RHD;4AFE..AT190..UKP..LHD..WG;4AFE..AT190..UKP. .LHD..ATM |
11302-02030 |
— | ||
|
11302T
|
11302T
90950-01783 Plug, Hole[12.1992 - 10.1997] 4AFE,7AFE..AT19#..UKP |
90950-01783 |
US $1.49 |
||
|
11303
|
11303
11303-02050
Cover Sub-Assy, Crankshaft Gear Or Pulley
[12.1994 - 10.1997] 7AFE..AT191..UKP |
11303-02050 |
— | ||
|
11304
|
11304
11304-02040
Cover, Timing Chain Or Belt, No.2
[12.1994 - 10.1997] 7AFE..AT191..UKP |
11304-02040 |
— | ||
|
11355
|
11355
11355-02020
Plate, Rear End
[08.1993 - 10.1997] 4AFE,7AFE..AT19#..UKP..MTM |
11355-02020 |
— | ||
|
11381
|
11381
11381-02020
Retainer, Engine Rear Oil Seal
[08.1993 - 10.1997] 4AFE,7AFE..AT19#..UKP |
11381-02020 |
— | ||
|
11381A
|
11381A
90080-31012
Seal, Engine Rear Oil
[08.1993 - 10.1997] 4AFE,7AFE..AT19#..UKP |
90080-31012 |
— | ||
|
11383
|
11383
11383-02020
Gasket, Engine Rear Oil Seal Retainer
[08.1993 - 10.1997] 4AFE,7AFE..AT19#..UKP |
11383-02020 |
— | ||
|
12281
|
12281
12281-02020
Hanger, Engine, No.1
[10.1993 - 10.1997] 4AFE,7AFE..AT19#..UKP |
12281-02020 |
— | ||
|
91512B1016
|
91512B1016
91512-B1016 New Genuine Part |
91512-B1016 |
US $2.08 |
||
|
9010506160
|
9010506160
90105-06160
Bolt
|
90105-06160 |
— | ||
| replacement | |||||
|
9010506160
|
9010506160
91511-G0620 BOLT, FLANGE |
91511-G0620 |
US $1.76 |
||
|
9010510335
|
9010510335
90105-10335 New Genuine Part |
90105-10335 |
US $1.60 |
||
|
9010510337
|
9010510337
90105-10337 New Genuine Part |
90105-10337 |
US $2.62 |
||
|
9011906727
|
9011906727
90119-06727 BOLT W-WASHER |
90119-06727 |
US $1.92 |
||
| replacement | |||||
|
9011906727
|
9011906727
90080-11177 New Genuine Part |
90080-11177 |
US $2.13 |
||
|
9011910640
|
9011910640
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9151160616
|
9151160616
91511-60616
BOLTFLANGE
|
91511-60616 |
— | ||
| replacement | |||||
|
9151160616
|
9151160616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $0.96 |
||
|
9151261030
|
9151261030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9162261035
|
9162261035
91622-61035 BOLT WWASHER |
91622-61035 |
US $1.60 |
||
