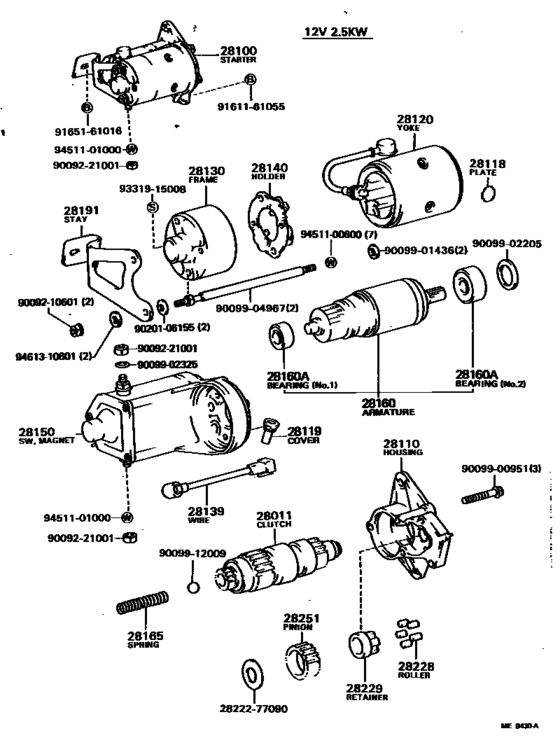

Starter ([02.1982 - 05.1984] (8202-8405)1C) Diagram Toyota CARINA
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- CA60
- grade
- SE
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- CARINA FR
- From
- 02.1982
- To
- 05.1984
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Carina FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-64010 Clutch Sub-Assy, Starter[02.1982 - 04.1988] 1C..CA6# 12V 1.4KW |
28011-64010 |
US $310.13 |
||
| replacement | |||||
|
28011
|
28011
28011-67030 Clutch Sub-Assy, Starter[02.1982 - 04.1988] 1C..CA6# 12V 1.4KW |
28011-67030 |
from US $208.88 |
||
|
28011
|
28011
28011-64020 Clutch Sub-Assy, Starter[02.1982 - 04.1988] 1C..CA6#..5F 12V 2.0KW |
28011-64020 |
US $203.84 |
||
|
28100
|
28100
28100-64010 Starter Assy[02.1982 - 09.1983] 1C..CA6# １２Ｖ １．４ＫＷ,12V 1.4KW |
28100-64010 |
US $1,572.48 |
||
| replacement | |||||
|
28100
|
28100
28100-64100 Starter Assy[02.1982 - 09.1983] 1C..CA6# １２Ｖ １．４ＫＷ,12V 1.4KW |
28100-64100 |
US $1,557.92 |
||
|
28100
|
28100
28100-64020 Starter Assy[02.1982 - 04.1988] 1C..CA6#..5F １２Ｖ ２．０ＫＷ,12V 2.0KW |
28100-64020 |
US $1,863.68 |
||
| replacement | |||||
|
28100
|
28100
28100-64040
Starter Assy
[02.1982 - 04.1988] 1C..CA6#..5F １２Ｖ ２．０ＫＷ,12V 2.0KW |
28100-64040 |
— | ||
|
28100
|
28100
28100-64100 Starter Assy[09.1983 - 04.1988] 1C..CA6# １２Ｖ １．４ＫＷ,12V 1.4KW |
28100-64100 |
US $1,557.92 |
||
|
28110
|
28110
28110-64070 Housing Assy, Starter Drive[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW |
28110-64070 |
US $88.82 |
||
|
28110
|
28110
28115-64010
Housing Assy, Starter Drive
[02.1982 - 09.1983] 1C..CA6# 12V 1.4KW |
28115-64010 |
— | ||
|
28110
|
28110
28115-64020
Housing Assy, Starter Drive
[02.1982 - 04.1988] 1C..CA6#..5F 12V 2.0KW |
28115-64020 |
— | ||
|
28119
|
28119
28199-72020
Cover, Starter End Frame
[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW |
28199-72020 |
— | ||
|
28120
|
28120
28120-15090
Yoke Assy, Starter
[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW |
28120-15090 |
— | ||
|
28120
|
28120
28120-34030
Yoke Assy, Starter
[02.1982 - 09.1983] 1C..CA6# 12V 1.4KW |
28120-34030 |
— | ||
|
28120
|
28120
28120-64020
Yoke Assy, Starter
[02.1982 - 04.1988] 1C..CA6#..5F 12V 2.0KW |
28120-64020 |
— | ||
|
28130
|
28130
28130-64100 Frame Assy, Starter Commutator End[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW |
28130-64100 |
US $59.11 |
||
|
28139
|
28139
28139-64010
Wire, Lead, No.1(For Starter)
[02.1982 - 04.1988] 1C..CA6# 12V 1.4KW,2.0KW |
28139-64010 |
— | ||
|
28140
|
28140
28140-15090
Holder Assy, Starter Brush
[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW |
28140-15090 |
— | ||
|
28140
|
28140
28140-34030
Holder Assy, Starter Brush
[02.1982 - 09.1983] 1C..CA6# 12V 1.4KW |
28140-34030 |
— | ||
|
28140
|
28140
28140-54070
Holder Assy, Starter Brush
[02.1982 - 04.1988] 1C..CA6#..5F 12V 2.0KW |
28140-54070 |
— | ||
|
28150
|
28150
28150-64010 Switch Assy, Magnet Starter[02.1982 - 09.1983] 1C..CA6# 12V 1.4KW |
28150-64010 |
US $366.91 |
||
|
28150
|
28150
28150-64020 Switch Assy, Magnet Starter[02.1982 - 04.1988] 1C..CA6#..5F 12V 2.0KW |
28150-64020 |
US $365.46 |
||
|
28150
|
28150
28150-64070 Switch Assy, Magnet Starter[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW |
28150-64070 |
US $365.46 |
||
|
28160
|
28160
28160-15090 Armature Assy, Starter[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW |
28160-15090 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-15091
Armature Assy, Starter
[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW |
28160-15091 |
— | ||
|
28160
|
28160
28160-26050
Armature Assy, Starter
[02.1982 - 09.1983] 1C..CA6# 12V 1.4KW |
28160-26050 |
— | ||
|
28160
|
28160
28160-54070 Armature Assy, Starter[02.1982 - 04.1988] 1C..CA6#..5F 12V 2.0KW |
28160-54070 |
US $487.76 |
||
| replacement | |||||
|
28160
|
28160
28160-54071
Armature Assy, Starter
[02.1982 - 04.1988] 1C..CA6#..5F 12V 2.0KW |
28160-54071 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[09.1981 - 09.1983] 12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,2TGEU,3T#..AA6#,CA6#,KA67,RA63,SA60,TA6# 12V 1.0KW,1.4KW,NO.1 |
28253-45020 |
— | ||
|
28160A
|
28160A
28253-54070 Bearing, Starter Armature[02.1982 - 04.1988] 1C..CA6#..5F 12V 2.0KW,NO.1 |
28253-54070 |
US $16.92 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[02.1982 - 09.1983] 1C..CA6# 12V 1.4KW,2.5KW,NO.2 |
90099-10107 |
US $5.24 |
||
|
28160A
|
28160A
90099-10131 Bearing, Starter Armature[02.1982 - 04.1988] 1C..CA6#..5F 12V 2.0KW,NO.2 |
90099-10131 |
US $7.43 |
||
|
28160A
|
28160A
90099-10143
Bearing, Starter Armature
[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW,NO.2 |
90099-10143 |
— | ||
|
28160A
|
28160A
90099-10144
Bearing, Starter Armature
[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW,NO.1 |
90099-10144 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[09.1981 - 04.1988] 12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,2TGEU,3T#..AA6#,CA6#,KA67,RA63,SA60,TA6# 12V 1.0KW,1.4KW,2.0KW |
28165-26040 |
— | ||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[09.1981 - 04.1988] 12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,2TGEU,3T#..AA6#,CA6#,KA67,RA63,SA60,TA6# 12V 1.0KW,1.4KW,2.0KW |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[09.1981 - 04.1988] 12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,2TGEU,3T#..AA6#,CA6#,KA67,RA63,SA60,TA6# 12V 1.0KW,1.4KW,2.0KW |
28229-26040 |
— | ||
|
28251
|
28251
28251-15090
Pinion, Starter Drive
[09.1983 - 04.1988] 1C..CA6# 12V 1.4KW |
28251-15090 |
— | ||
|
28251
|
28251
28251-54070
Plate, Lead, Switch Connecting
[02.1982 - 09.1983] 1C..CA6# 12V 1.4KW,2.0KW |
28251-54070 |
— | ||
|
2822277090
|
2822277090
28222-77090
Washer, Starter Idle Gear Clutch
|
28222-77090 |
— | ||
|
9009210601
|
9009210601
90092-10601
Nut, Rock
|
90092-10601 |
— | ||
| replacement | |||||
|
9009210601
|
9009210601
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $1.46 |
||
|
9009900951
|
9009900951
90099-00951
New Genuine Part
|
90099-00951 |
— | ||
| replacement | |||||
|
9009900951
|
9009900951
90099-00218
New Genuine Part
|
90099-00218 |
— | ||
|
9009901436
|
9009901436
90099-01436
New Genuine Part
|
90099-01436 |
— | ||
|
9009902205
|
9009902205
90099-02205
Washer, Felt, Starter
|
90099-02205 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
US $0.29 |
||
|
9009904967
|
9009904967
90099-04967
New Genuine Part
|
90099-04967 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9020106155
|
9020106155
90201-06155 Washer |
90201-06155 |
US $3.20 |
||
|
9161161055
|
9161161055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $2.72 |
||
|
9165161016
|
9165161016
91651-61016 Bolt |
91651-61016 |
US $1.14 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
