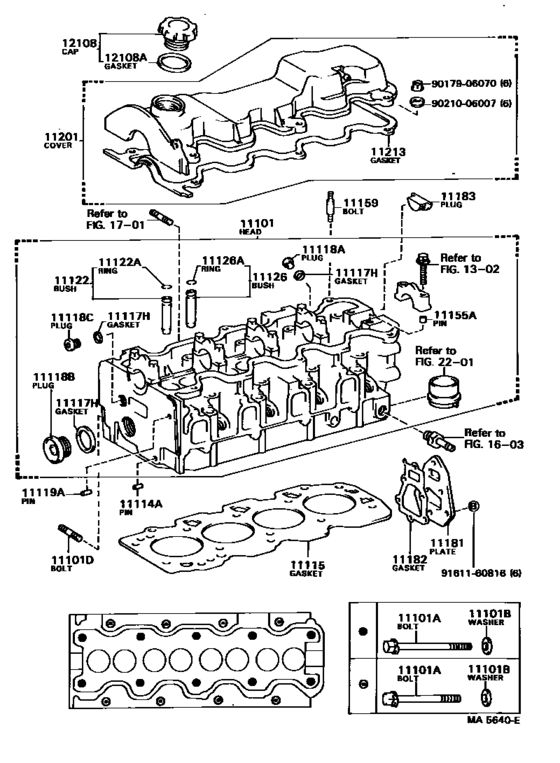

Cylinder Head ([04.1982 - ] (8204- )1C) Diagram Toyota CARINA
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- CA60
- grade
- DLX
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- CARINA
- From
- 04.1982
- To
- 09.1983
- Gear Shift Type
- 5F
- Vehicle Model
- Carina
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-64010 Head Sub-Assy, Cylinder[04.1982 - 01.1983] 1C..CA60 |
11101-64010 |
US $1,776.32 |
||
| replacements | |||||
|
11101
|
11101
16261-64011 Hose, Water By-Pass[04.1982 - 01.1983] 1C..CA60 |
16261-64011 |
US $18.93 |
||
|
11101
|
11101
11101-64321 Head Sub-assy, Cylinder[04.1982 - 01.1983] 1C..CA60 |
11101-64321 |
US $1,368.64 |
||
|
11101
|
11101
90201-22010 Washer, Plate(For Valve Spring Seat)[04.1982 - 01.1983] 1C..CA60 |
90201-22010 |
from US $1.31 |
||
|
11101
|
11101
11176-64020 Seat, Injection Nozzle[04.1982 - 01.1983] 1C..CA60 |
11176-64020 |
US $4.02 |
||
|
11101
|
11101
11101-64011 Head Sub-Assy, Cylinder[01.1983 - 09.1983] 1C..CA60 |
11101-64011 |
US $1,761.76 |
||
| replacements | |||||
|
11101
|
11101
11101-64321 Head Sub-assy, Cylinder[01.1983 - 09.1983] 1C..CA60 |
11101-64321 |
US $1,368.64 |
||
|
11101
|
11101
90201-22010 Washer, Plate(For Valve Spring Seat)[01.1983 - 09.1983] 1C..CA60 |
90201-22010 |
from US $1.31 |
||
|
11101
|
11101
11176-64020 Seat, Injection Nozzle[01.1983 - 09.1983] 1C..CA60 |
11176-64020 |
US $4.02 |
||
|
11101A
|
11101A
90105-11011 Bolt(For Cylinder Head Set)[04.1982 - 09.1983] 1C..CA60 *11-1.25PX123-30 |
90105-11011 |
US $8.59 |
||
|
11101A
|
11101A
90105-11012 Bolt(For Cylinder Head Set)[04.1982 - 09.1983] 1C..CA60 *11-1.25PX145-30 |
90105-11012 |
US $9.03 |
||
|
11101B
|
11101B
90201-12222 Washer, Plate(For Cylinder Head Set)[04.1982 - 09.1983] 1C..CA60 |
90201-12222 |
from US $1.29 |
||
|
11101D
|
11101D
92122-60820 Bolt, Stud(For Water Outlet)[04.1982 - 09.1983] 1C..CA60 |
92122-60820 |
US $2.97 |
||
|
11114A
|
11114A
90250-06068 Pin, Straight[04.1982 - 09.1983] 1C..CA60 L=11,OD=6 |
90250-06068 |
from US $1.05 |
||
|
11115
|
11115
11115-64010 Gasket, Cylinder Head[04.1982 - 07.1983] 1C..CA60 |
11115-64010 |
US $106.29 |
||
|
11115
|
11115
11115-64050 Gasket, Cylinder Head[07.1983 - 09.1983] 1C..CA60 |
11115-64050 |
US $103.38 |
||
| replacement | |||||
|
11115
|
11115
11115-64110 Gasket, Cylinder Head[07.1983 - 09.1983] 1C..CA60 |
11115-64110 |
US $82.72 |
||
|
11117H
|
11117H
90430-10035 Gasket(For Water Hole)[04.1982 - 07.1982] 1C..CA60 PNC 11118A |
90430-10035 |
from US $1.05 |
||
| replacement | |||||
|
11117H
|
11117H
9008943009
Gasket V P Oil Inlet
[04.1982 - 07.1982] 1C..CA60 PNC 11118A |
9008943009 |
— | ||
|
11117H
|
11117H
90430-10204 Gasket(For Water Hole)[07.1982 - 09.1983] 1C..CA60 PNC 11118A |
90430-10204 |
from US $3.68 |
||
|
11117H
|
11117H
90430-12005 Gasket(For Water Hole)[04.1982 - 09.1983] 1C..CA60 PNC 11118C |
90430-12005 |
from US $0.76 |
||
|
11117H
|
11117H
90430-33133 Gasket(For Cylinder Head Screw Plug)[04.1982 - 09.1983] 1C..CA60 PNC 11118B |
90430-33133 |
US $3.20 |
||
|
11118A
|
11118A
90341-10005 Plug, Straight, No.1[07.1982 - 09.1983] 1C..CA60 |
90341-10005 |
US $2.62 |
||
|
11118A
|
11118A
90341-10065 Plug, Straight, No.1[04.1982 - 07.1982] 1C..CA60 |
90341-10065 |
from US $3.52 |
||
|
11118B
|
11118B
90341-32070 Plug, W/head Taper Screw, No.1[04.1982 - 09.1983] 1C..CA60 |
90341-32070 |
US $10.66 |
||
|
11118C
|
11118C
90341-12002 Plug, Straight, No.2[04.1982 - 09.1983] 1C..CA60 |
90341-12002 |
US $3.35 |
||
| replacement | |||||
|
11118C
|
11118C
90341-12013 Plug, Straight, No.2[04.1982 - 09.1983] 1C..CA60 |
90341-12013 |
US $3.06 |
||
|
11119A
|
11119A
90250-06068 Pin, Straight[04.1982 - 09.1983] 1C..CA60 L=11,OD=6 |
90250-06068 |
from US $1.05 |
||
|
11122
|
11122
11126-24020 Bush, Intake Valve Guide[04.1982 - 09.1983] 1C..CA60 STD |
11126-24020 |
US $13.83 |
||
|
11122
|
11122
11127-24020 Bush, Intake Valve Guide[04.1982 - 09.1983] 1C..CA60 O/S 0.05 |
11127-24020 |
US $13.83 |
||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[08.1981 - 09.1983] 1C..CA60; 2T,3T#..TA6# |
90520-12049 |
from US $2.72 |
||
|
11126
|
11126
11126-24020 Bush, Intake Valve Guide[04.1982 - 09.1983] 1C..CA60 STD |
11126-24020 |
US $13.83 |
||
|
11126
|
11126
11127-24020 Bush, Intake Valve Guide[04.1982 - 09.1983] 1C..CA60 O/S 0.05 |
11127-24020 |
US $13.83 |
||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[08.1981 - 09.1983] 1C..CA60; 2T,3T#..TA6# |
90520-12049 |
from US $2.72 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[04.1982 - 09.1983] 1C..CA60 |
90253-11021 |
from US $1.50 |
||
|
11159
|
11159
90116-06023
Bolt, Stud(For Head To Camshaft Bearing Cap)
[04.1982 - 09.1983] 1C..CA60 L=30,S=8&8 |
90116-06023 |
— | ||
|
11181
|
11181
11181-64010
Plate, Cylinder Head, Rear
[04.1982 - 09.1983] 1C..CA60 |
11181-64010 |
— | ||
|
11182
|
11182
11182-64010 Gasket, Cylinder Head Rear Plate[04.1982 - 09.1983] 1C..CA60 |
11182-64010 |
US $10.77 |
||
| replacement | |||||
|
11182
|
11182
11182-64021 Gasket, Cylinder Head Rear Plate[04.1982 - 09.1983] 1C..CA60 |
11182-64021 |
from US $5.99 |
||
|
11183
|
11183
11183-64010 Plug, Semicircular[04.1982 - 09.1983] 1C..CA60 |
11183-64010 |
from US $8.35 |
||
|
11201
|
11201
11201-69075 Cover Sub-Assy, Cylinder Head[04.1982 - 09.1983] 1C..CA60 |
11201-69075 |
US $243.15 |
||
|
11213
|
11213
11213-64020
Gasket, Cylinder Head Cover
[04.1982 - 09.1983] 1C..CA60 |
11213-64020 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-64040 Gasket, Cylinder Head Cover[04.1982 - 09.1983] 1C..CA60 |
11213-64040 |
from US $22.04 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[08.1981 - 01.1983] 1C..CA60; 2T,3T#..TA6# |
12180-13010 |
US $16.11 |
||
|
12108
|
12108
12180-70010
Cap Sub-Assy, Oil Filler
[01.1983 - 09.1983] 1C..CA60 |
12180-70010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-E0010 Cap Sub-Assy, Oil Filler[01.1983 - 09.1983] 1C..CA60 |
12180-E0010 |
US $16.26 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1981 - 09.1983] 1C..CA60; 2T,3T#..TA6# |
90430-37140 |
from US $1.25 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9021006007
|
9021006007
90210-06007 WASHER |
90210-06007 |
from US $2.09 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
